• Model NO.：WDW-50E
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Color：Silver or Other Color You Need
• Load Accuracy：1 Class or 0.5 Class for Choice
• Load Resolution：1,300000
• Resolution of Deformation：0.04um
• Test Speed：0.05-1000 mm Per Min Stepless Arbitrary Setting
• Compression and Tensile Space(mm)：800 Can Be Customized
• Test Width：400mm
• Grips：Wedge Type or Customized
• Rang of Deformation：4 to 100 Percent Fs
• Load Range：2 to 100 Percent Fs
• Transport Package：Standard Wooden Export Box
• Specification：100N-600KN for choice
• Trademark：HST or OEM
• Origin：Shandong China
• HS Code：9024800000
• Production Capacity：100 Sets Per Month

Four-column floor or desk model,
(upper is compression and lower is tensile)CoverAll aluminum alloyControl methodComputer controlLoad accuracyClass 1Class 0.5Class 1Class 0.5Load range2%~100%F·S0.2%~100%F·S2%~100%F·S0.2%~100%F·SLoad resolution1/300000Rang of deformation4%-100%FSResolution of deformation0.04umAccuracy of displacementWithin±0.5%of indicating loadResolution of displacement0.01mmTest speed(mm/min)0.05-1000 stepless arbitrary settingTensile space(mm)800(can be customized)Compression space(mm)800(can be customized)Test width(mm)400(can be customized)

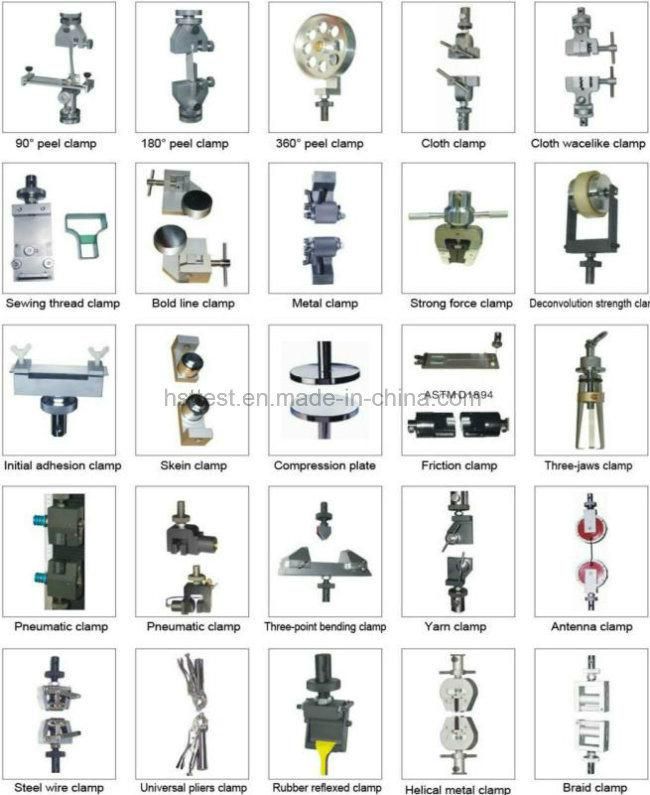

Fixtures for choice according to different material:

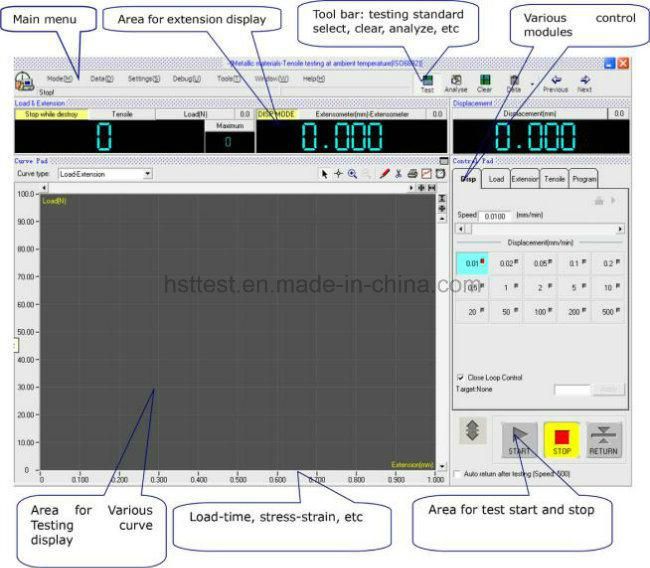

Machine software show:

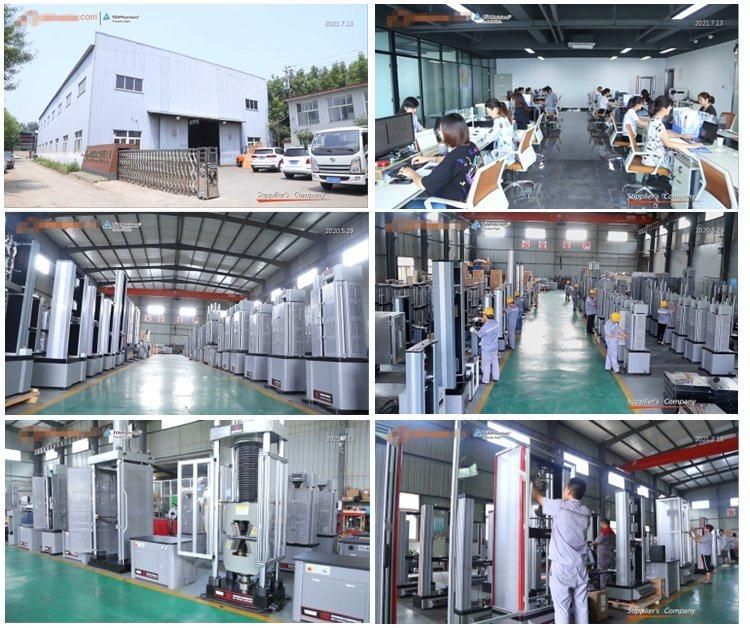

WORK SHORP:
EXHIBITON
OUR Customers all over the world
Transactions trade:
CERTIFICATE
