• Model NO.：HD-A513-2
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Platen Parallelism：± 0.05 mm
• Precision：< 0.5%
• Ring Crush Sample：152×12.7 mm
• Compressed Space：500 mm
• Resolution：1,100,000
• Edge Crush Sample：25×100 mm
• Dimension (L*W*H)：790*510*1060 mm
• Test Speed：12.7 mm,Min
• Operation Mode：LCD
• Display Mode：LCD
• Transport Package：Strong Wooden Case
• Specification：Tappi-T472; T808, T810, T811, T818
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. HD-A513-2 Control Computer Control Weight 0-100Kg Power Source AC220V Platen Parallelism ± 0.05 mm Precision < 0.5% Ring Crush Sample 152×12.7 mm Compressed Space 500 mm Resolution 1/100,000 Edge Crush Sample 25×100 mm Dimension (L*W*H) 790*510*1060 mm Test Speed 12.7 mm/Min Operation Mode LCD Display Mode LCD Transport Package Strong Wooden Case Specification Tappi-T472; T808, T810, T811, T818 Trademark HAIDA Origin China HS Code 9024109000 Production Capacity 1000PCS/Year

Product Description

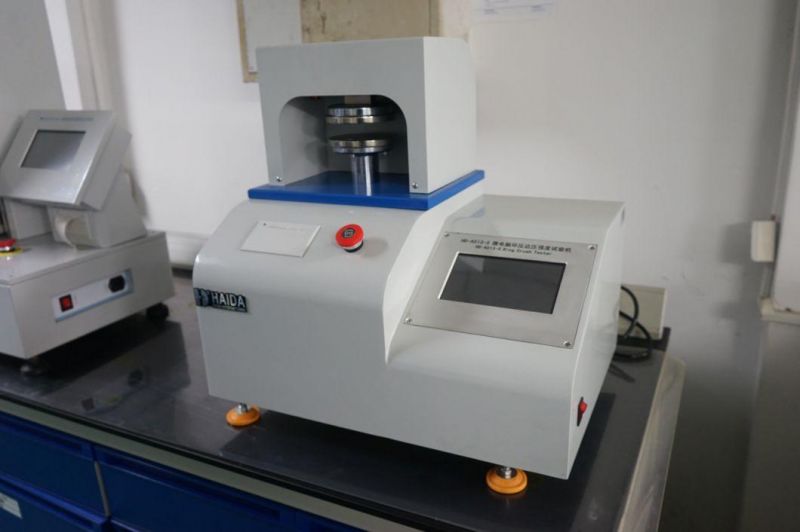

                               Automatic Paper Crush Analysis Tester

Usage
Digital Cardboard Ring Crush Strength Test Machine, Computer servo multi-function carton tension and compression strength tester can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.

The Main Parameters of Cardboard Ring Crush Strength Test Machine:


Capacity  (Optional)	10, 20, 50, 100, 200 kg
Resolution	1/250,000
Precision	< 0.25%
Operation Mode	Computer
Display Mode	LCD
Platen	100×100 mm or depending on the diameter of the flat crush sample
Compressed Space	500 mm
Platen Parallelism	± 0.05 mm
Ring Crush Sample	152×12.7 mm
Edge Crush Sample	25×100 mm
Test Speed	12.7 mm/min
Dimension (L×W×H)	790×510×1060 mm
Weight	Approx. 51 kg
Power	AC220V, 1.5A

(The table parameters for the company Standard Model parameters, we support customer customization parameters)





The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Customer Feedback


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
