• Model NO.：THT-LDD-400-MC
• Loading Method：Pneumatic Booster Pump
• Display：Pressure Gauge
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Maximum Output Pressure：4000bar Output Pressure
• Working Medium：Water,Hydraulic Oil
• Driven Pressure Range：Compressed Air of 3-8 Bar
• Function：Pressure Adjustable
• Application：Burst Test for Pipes,Valves,Hoses
• Driven Piston Diameter：160mm
• Transport Package：Wooden Case Packing
• Specification：350KG
• Trademark：TEREK
• Origin：Jinan
• Production Capacity：6000pieces,Year

Type

Pressure ratio

Max outlet pressure  (bar)

Max flow   (L/min)

Connection size(inch)Drive

Connection size(inch)   Inlet

Connection size(inch)   Outlet

THT-LDD-16

16:1

128

19.73

G1/2

NPT 1/2

NPT 1/2

THT-LDD-28

28:1

224

11.3

G1/2

NPT 1/2

NPT 1/2

THT-LDD-40

40:1

320

7.69

G1/2

NPT 1/2

NPT 1/2

THT-LDD-64

64:1

512

4.94

G1/2

NPT 1/2

NPT 3/8

THT-LDD-80

80:1

640

3.96

G1/2

NPT 1/2

NPT 3/8

THT-LDD-100

100:1

800

3.13

G1/2

NPT 1/2

NPT 3/8

THT-LDD-175

175:1

1400

1.81

G1/2

NPT 3/8

M14*1.5

THT-LDD-255

255:1

2040

1.23

G1/2

NPT 1/4

M14*1.5

THT-LDD-400

400:1

3200

0.79

G1/2

NPT 1/4

M14*1.5

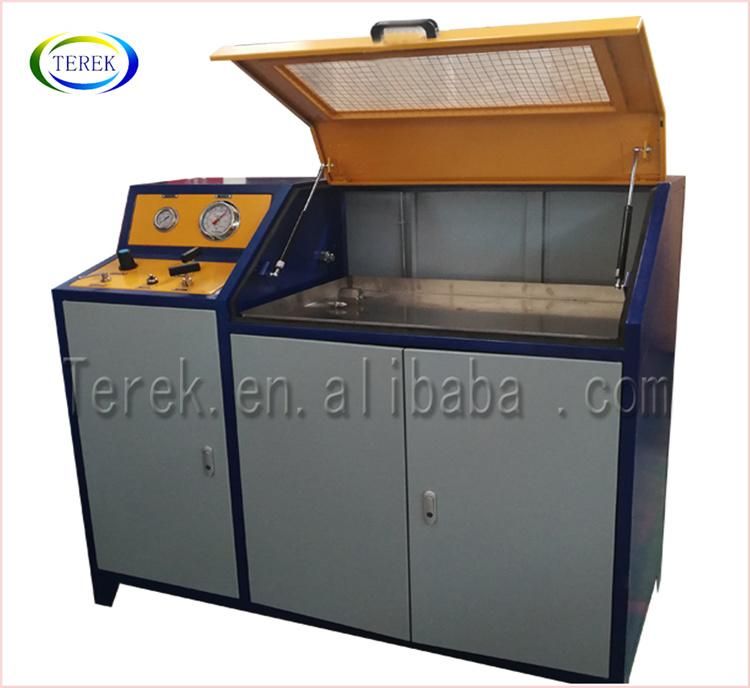

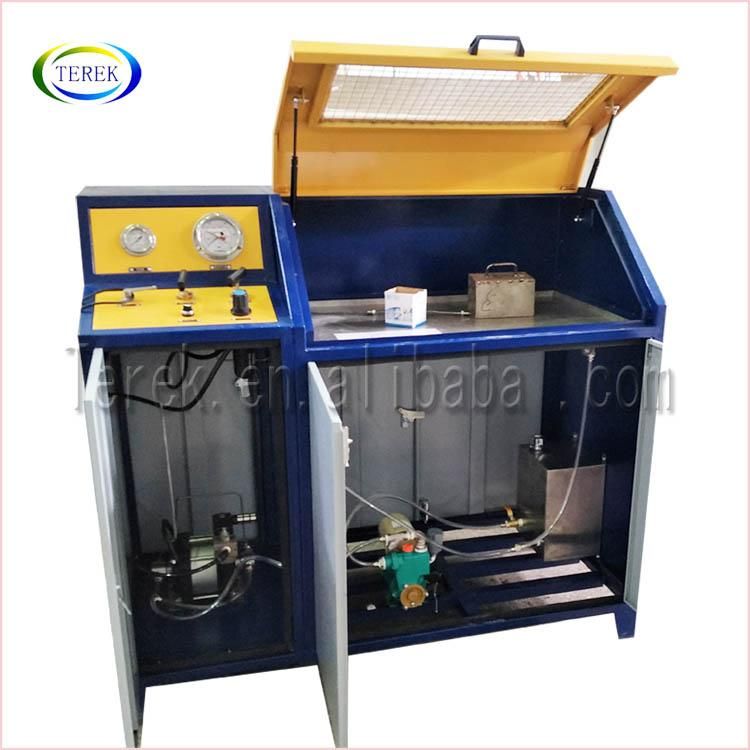

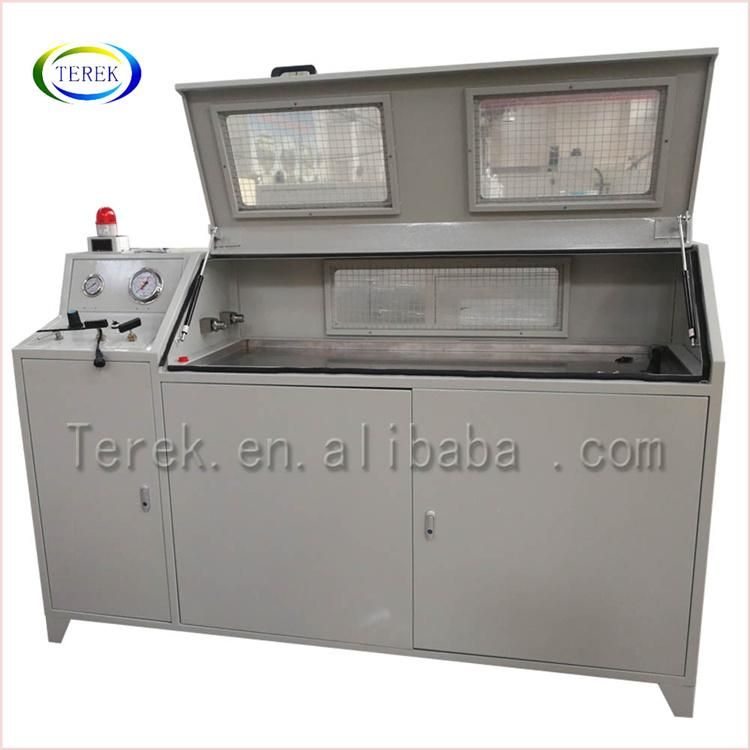

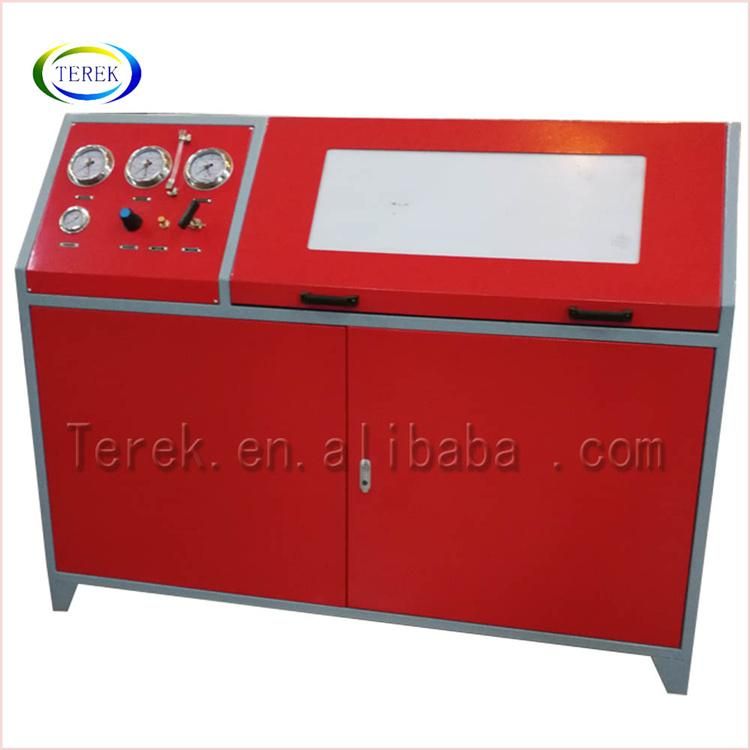

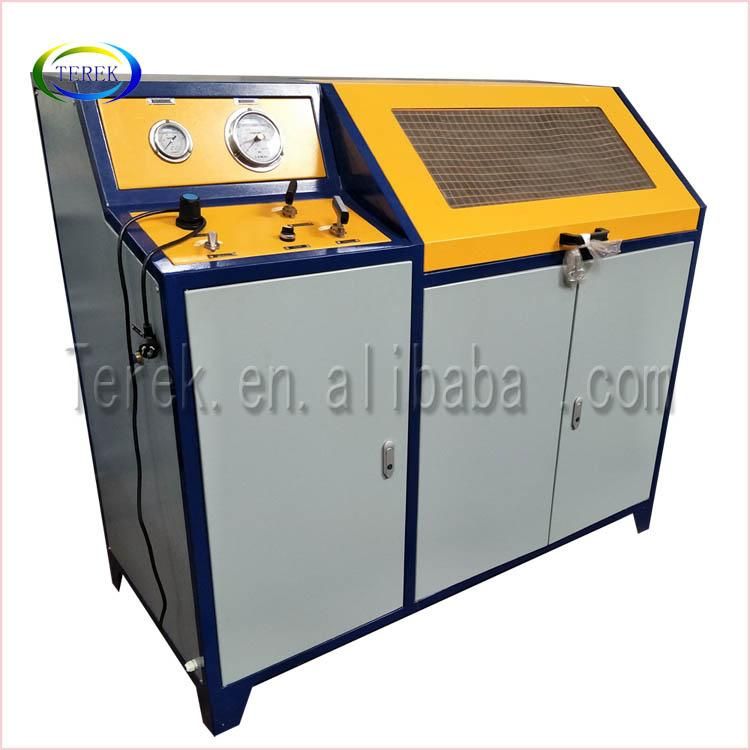

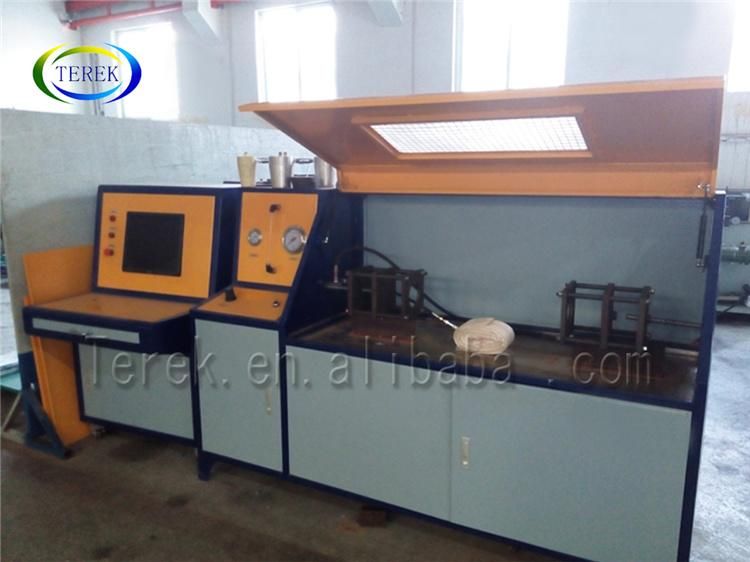

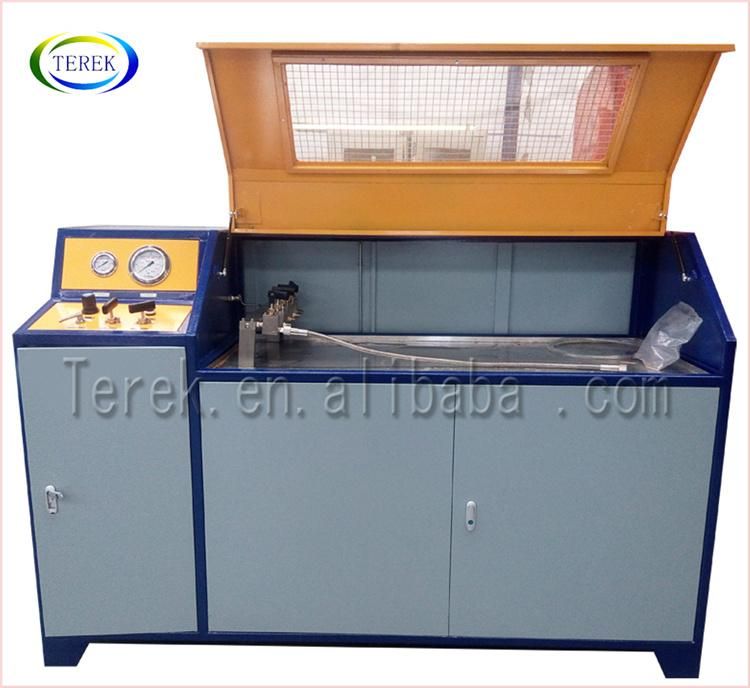

1.TEREK Burst Pressure Test Benches is Special pressure testing equipment,   Provide pressure and bursting testing for various hydraulic hoses, valves, vessels, tubes and other hydraulic products.

2.They are use air driven hydraulic pump for liquid pressurization. Test pressure is up to maximally 320Mpa. Test medium can be water and hydraulic oil.

3.We have introduced the German technology to produce this high-performance test bench. The machine has a pneumatic pump and no electricity needed.

4.The machine is easy for operation with low noise and fast boosting. Testing liquid can be recycled. It played a important role in the improvement of quality and reliability.

Key features include:
1. Reliable ,Easy to Maintain ,compact and robust.
2. No heat, flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls.
5. The piping system with non welded connection
6.Seals system designed for long working life, No lubricated required.
7. Wide range of standard and customized liquid pressure test systems
8.In the testing process, the pressure can be automatically compensated; time after the bursting pressure decreased rapidly, pressure automatic stop system;
9.The protection of tooling, special design, can effectively protect the damage of blasting operation personnel and equipment.
10. With comprehensive security protection; observation window with security protection mechanism which cannot operate before turn off.  Meanwhile with emergency stop switches, safety valves and other hardware protection measures.

TEREK Company focus on provide various kinds of pneumatic and hydraulic booster pumps, booster systems, High pressure filling equipment, pressure testing system and fluid pressure solutions to the customers all over the world etc. With more than 18 years experiences in fluid pressure exchange and controlling field.

Our main products including:

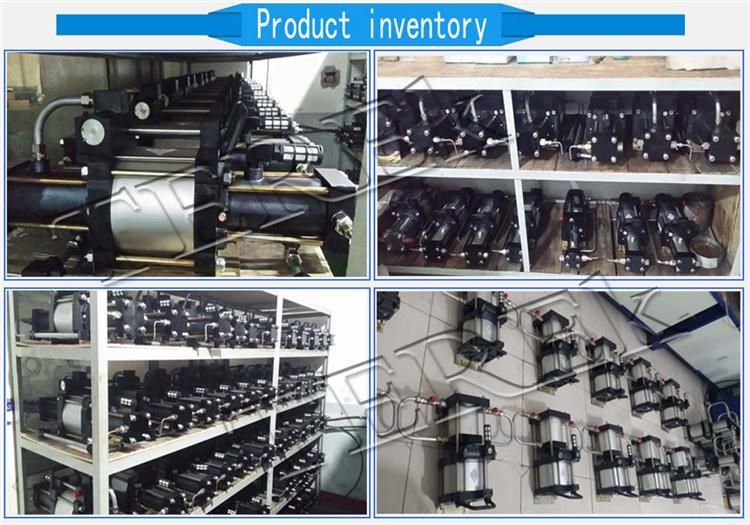

High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump,Refrigerant booster pump and Air Amplifier )
