• Model NO.：JBS-450C
• Accuracy Grade：0.5
• Load Way：Mechanical Load
• Loading Method：Dynamic Load
• Display：Computer
• Control：Computer
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Trademark：CHENGYU
• Origin：China
• HS Code：9024800000
• Production Capacity：1000

Model

JBW-300C

JBW-450C

JBW-600C

JBW-750C

Max. impact energy(J)

300

450

600

750

Pendulum Torque

160.7695

241.1543

321.5390

401.9238

The distance between the

pendulum shaft and impact  point

750mm

Impact speed

5.24 m/s

Raised angle

150°

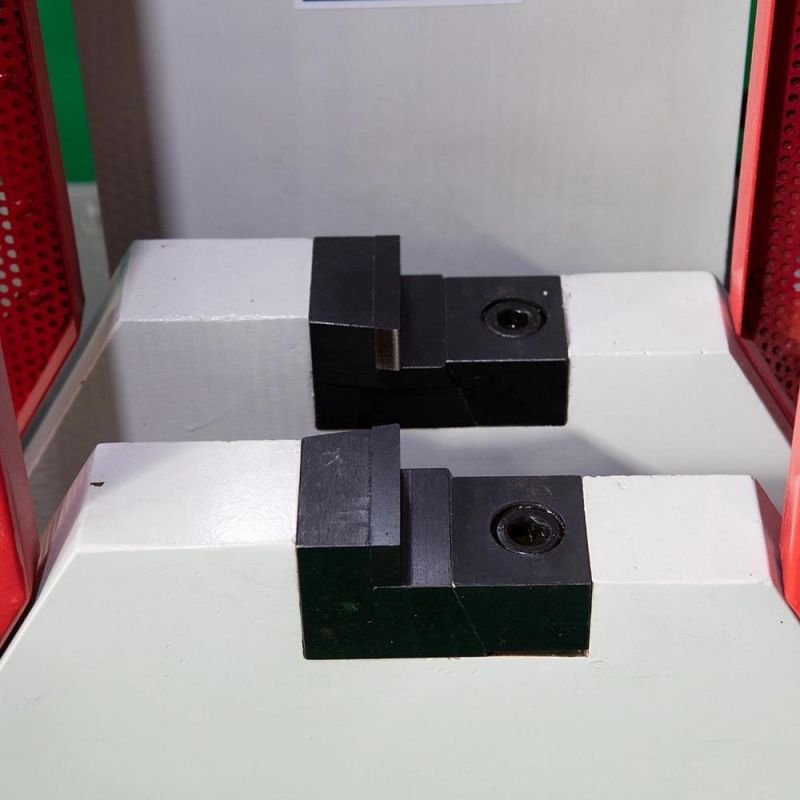

Round angle of the jaw

R1-1.5mm

Round angle of impact edge

R2-2.5mm,R8±0.05mm

Angle accuracy

0.1°

Cooling way

compressor

Capacity of sample box

20

Range of low temperature

room tempeature --60°c/80°c

Standard specimen dimension

10mm×10(7.5/5)mm×55mm

Power supply

3phs, 380V, 50Hz or specified by users

Net Weight (kg)

900https://cytesting.en.made-in-china.com

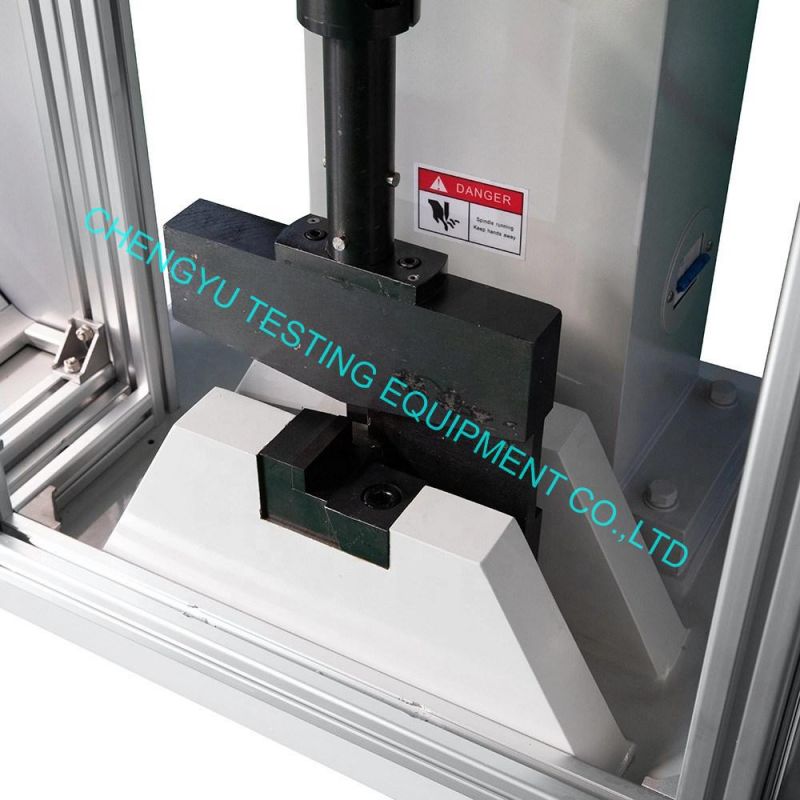

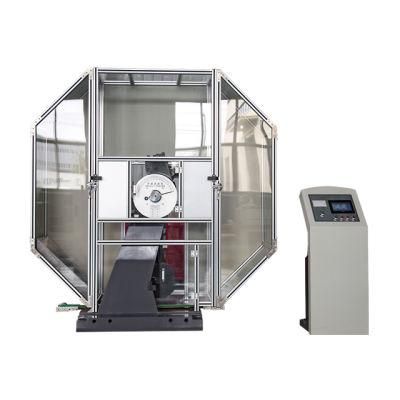

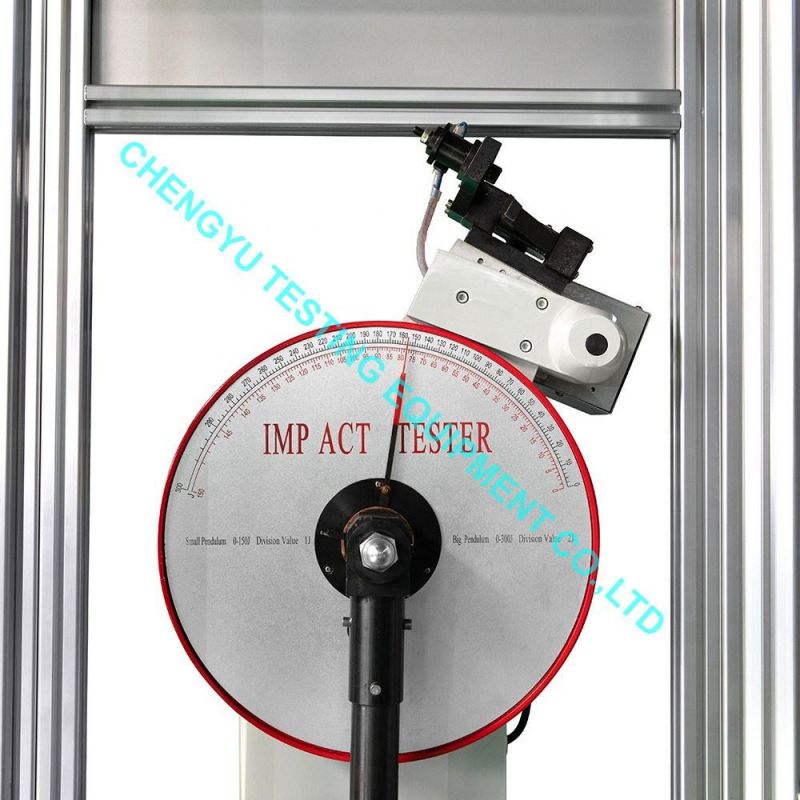

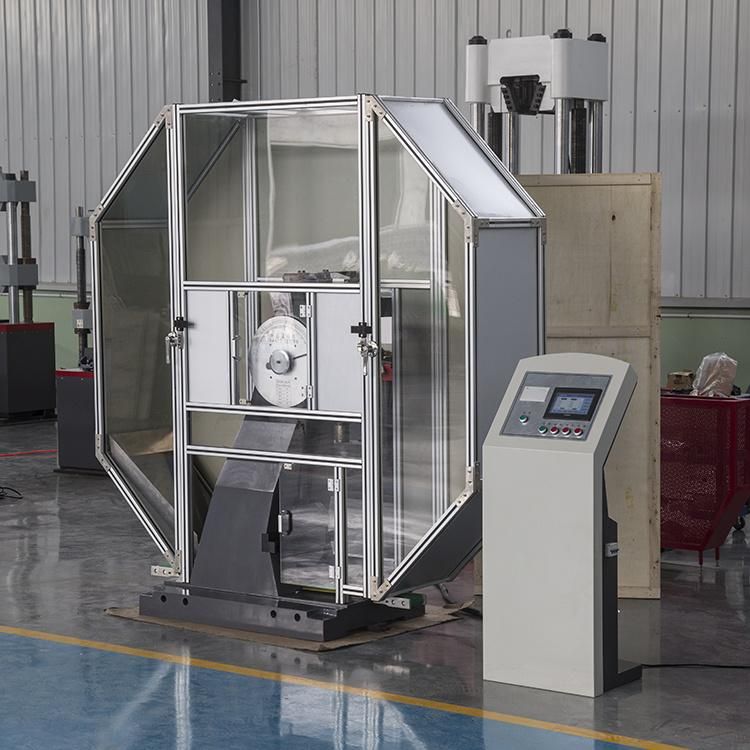

5. Details Images










6. Packaging & Shipping

1. Packing Method: Horizontal Packing to saving moreipping cost.

2. Packing Materials: Plywood Case metting export long transport requirement.

3. Shiping Time: Shipped within 15-20 days after payment.

4. Shipping Way: Shipped by sea or air is available.

FAQ

1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
