• Model NO.：GDY-1A+
• Repeatability Error：≤0.2% (Grade C)
• Pressure Endured by Oxygen Bomb：20 MPa
• Ambient Temperature：15 ºC~28 ºC (Room Temperature)
• Storage Temperature Data：31
• Ambient Humidity：Less Than 85%
• Power Supply：AC220,50Hz
• Total Power Consumption：Less Than 150W
• Transport Package：Wooden Case
• Specification：600 mm * 460 mm * 430 mm
• Trademark：GOLD
• Origin：China
• Production Capacity：10000 Sets, Month

1. Bomb Calorimeter is designed and made according to GB/T213-2008 Method for the determination of the calorific value of coal, GB/T384 Method for the determination of the heat value of petroleum products and Calibration and Inspection Regulation of People's Republic of China JJG672-2001 Oxygen Bomb Calorimeter.
2.It is suitable for the determination of water free oil products (gasoline, jet fuel, diesel oil and fuel oil, etc.) and combustible material such as coal, coke, paraffin wax content determination of calorific value.
3.It is a high grade instrument with the advantages of automatic, efficient, safe, high precision, fast test speed and easy to use.

1) The instrument uses a single-chip control technology, color LCD display, high-precision temperature sensor and high-performance A / D
conversion device, consisting of a high degree of automation, screen effect is good, easy to use, convenient intelligent data compilation instrument. 2) Bomb Calorimeter is fully automated in the testing process, after the sample in place, correct input various parameters automatically without manual intervention to complete each test process; you can print measurement data directly on the A4-format printer configuration after the end of the trial.
3) Bomb Calorimeter adopts the self sealing type oxygen bomb, all the structure is made of stainless steel, and the strength is enough to withstand the pressure test of 20MPa at room temperature.
4) The inner tube of the instrument is made by stainless steel sheet, section of pears, put the barrel of water was 3000 grams, water cylinder with electric blender, to ensure that the inner tube water bath temperature uniformity.
5) Bomb Calorimeter of the external water jacket is a double container and experiment when filled with water, through the water jacket mixer to cylinder in uniform temperature, formed to meet the test requirements of the constant temperature environment.

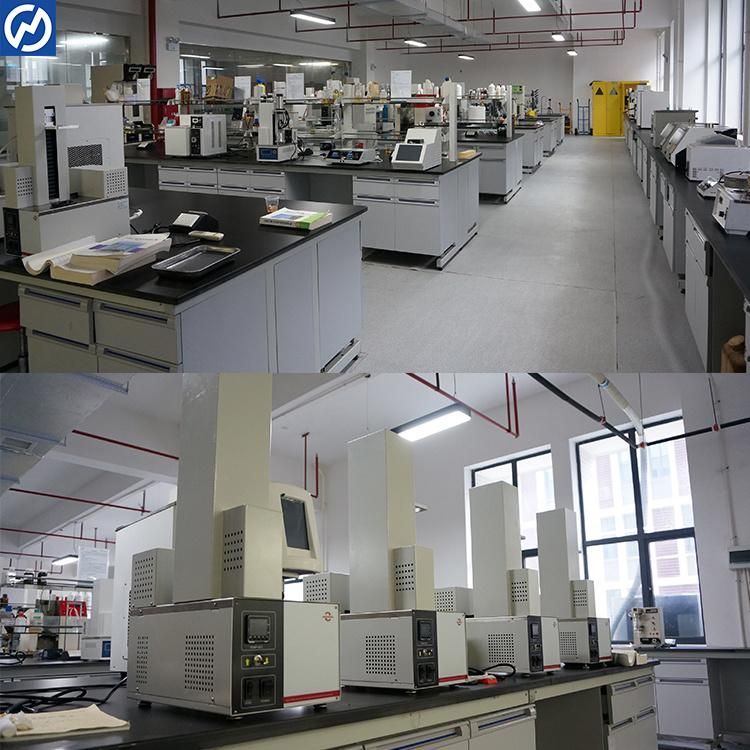

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. which is mainly design and manufacture the petroleum testing instrument, asphalt testing equipment and related lab equipment.After more than 20 years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument and asphalt testing instrument. We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.And we have gained strong advantage and high reputation in international market.
