• Model NO.：STTLD-1
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：No
• Weight：17kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Sttld-1 Steel Concrete Slump Cone Test Set
• Consists of：The Apparatus Consists of One Slump Cone with Hand
• Diameter of Top Hole：100mm
• Diameter of Below Hole：200mm
• High：300mm
• Tamping Rod：Diameter: 16mm Length: 600mm
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STTLD-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 17kgs Power Source AC220V Oil Cylinder Position No Product Name Sttld-1 Steel Concrete Slump Cone Test Set Consists of The Apparatus Consists of One Slump Cone with Hand Diameter of Top Hole 100mm Diameter of Below Hole 200mm High 300mm Tamping Rod Diameter: 16mm Length: 600mm Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

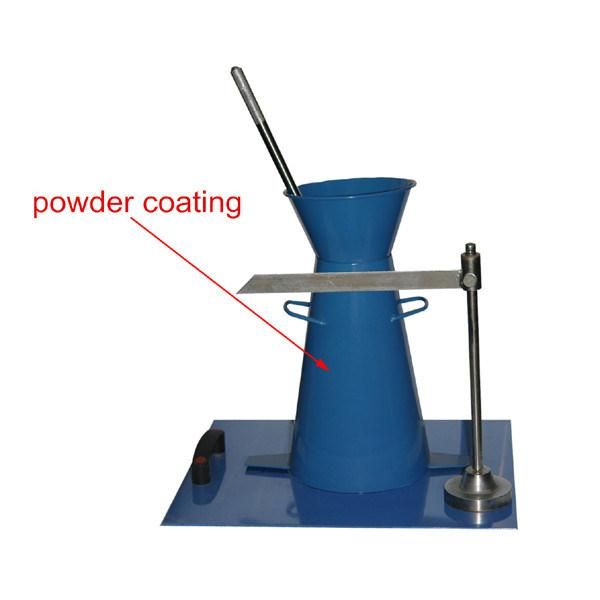

STTLD-1 Steel concrete slump cone test set


Slump Cone test set is used for the determination of the consistency and workability of fresh concrete.
The Concrete Slump Test Set is supplied complete with: Slump Cone, Slump Funnel, Base Plate, Tamping Rod, Rubber mallet, Steel ,ruler

Easy to clean, economical, & lightweight polyethylene Slump Base with strong adjustable hold down clamps and rod clamps to hold tamping rod which doubles as a carrying handle (scoop fits inside cone).
Each set contains a slump, a crowbar, a funnel, and a ruler.Total is four.

1. Slump Test Sets offer convenience and assurance that testing can be readily performed in accordance with ASTM and AASHTO standards. Standard sets include a slump cone, base and tamping rod. Deluxe sets also include a scoop, funnel, measuring tape and cleaning brush.

2. Slump Cones are constructed of rugged plated steel or high-density plastic, and meet ASTM and AASHTO or BS standards. Plastic and steel slump cones are rust resistant, and available in inch or metric dimensions. They can be secured by standing on the integral foot tabs or clamped in the slump test base for additional stability.

3. Tamping Rods in 0.626x24in, 0.374x12in or 0.374x18in (15.9x610mm, 9.5x305mm or 9.5x457mm) Dia.xL sizes are machined from solid stainless steel and will not corrode. Both ends have hemispherical tips and meet requirements of numerous ASTM and AASHTO standards for testing slump and air content, and molding concrete strength samples.

4. Slump Test Bases come in models constructed of EZ-Clean high-density polyethylene or cast aluminum, equipped with carrying handle and offer a smooth and stable working platform for both plastic or steel slump cones.

5. Lightweight Aluminum Scoops are easy to handle for remixing the bulk sample and dispensing a representative sample of fresh concrete into slump cones.

6. Scrub Brushes are useful for easy clean-up of all concrete testing equipment.

7. Slump Cone Filling Funnel reduces spillage and waste.

8. Measuring Tapes are the most accurate and efficient way to measure slump, and serve a number of other purposes.

Technical Parameters:

Diameter of top hole	100mm
Diameter of below hole	200mm
High	300mm
Tamping Rod	Diameter: 16mm    Length: 600mm
