Test Instrument

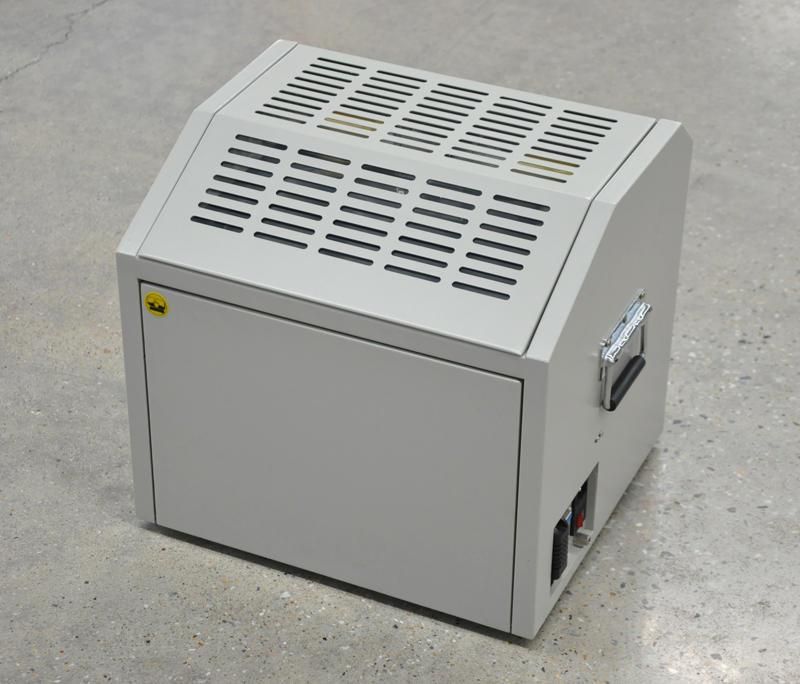

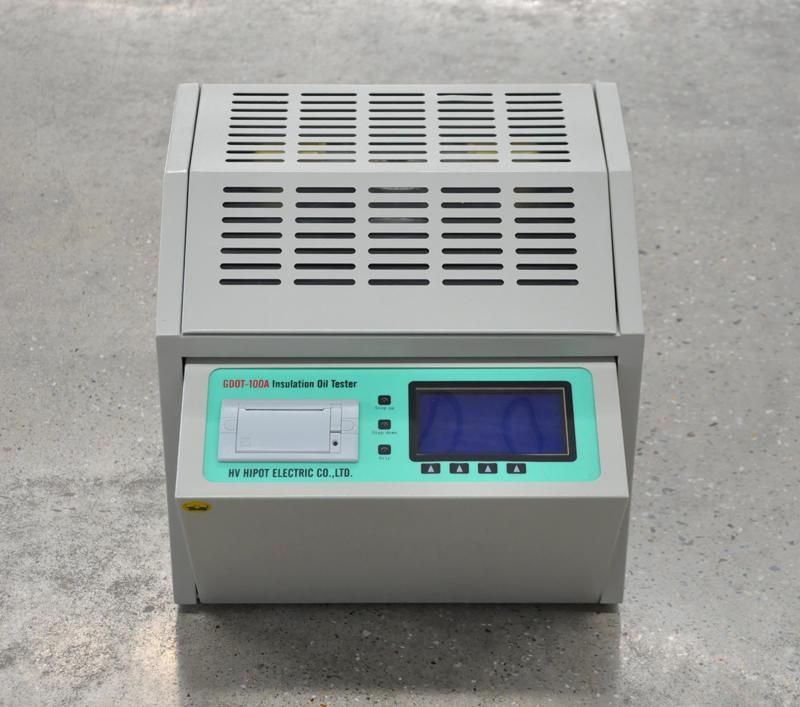

80kV Insulation Oil Dielectric Strength BDV Tester

HV Hipot Electric Co., Ltd.
  • After-sales Service:Yes
  • Warranty:1 year
  • Type:Strength Testing Machine
  • Accuracy Grade:1
  • Load Way:Electronic Load
  • Loading Method:Static Load

Base Info

  • Model NO.:GDOT-80A
  • Display:Digital
  • Control:Computer Control
  • Weight:0-100Kg
  • Power Source:AC220V
  • Oil Cylinder Position:Top
  • Capacity:1.5kVA
  • Output voltage:80kv
  • Delivery time:7 working days
  • Transport Package:Wooden Box
  • Specification:430 mm*350 mm*370 mm
  • Trademark:HV Hipot
  • Origin:China(Mainland)
  • HS Code:9030899090
  • Production Capacity:5000set,Year

Description

Output voltage0-80kVPower distortion rate<1%Voltage increasing speed2.0kV/s, 3.0kV/s (choice one) Error 0.2kV/sElectrode gapstandard 2.5mmDisplayLCD screenVoltage increasing interval5mins, adjustableVoltage increasing times1-6times, optionalCapacity1.5kVAPower inputAC220V±10%, 50Hz±1HzPower200WWorking temperature0-40ºCHumidity <85%RHDimension430*350*370mm
