• Model NO.：HJ-3
• Weight：0-100Kg
• Power Source：AC220V
• Test Station：4 (Working at The Same Time)
• Test Timer：0~99999999 Times
• Load Weight：50, 100, 200, 300, 500g Each of Four (Optional)
• Test Stroke：0~20mm
• Adjustable Range of Test Rod Fixture：0~180mm
• Dimensions (L*W*H)：500×400× 550mm
• Machine Weight：25kg
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-3 Weight 0-100Kg Power Source AC220V Test Station 4 (Working at The Same Time) Test Timer 0~99999999 Times Load Weight 50, 100, 200, 300, 500g Each of Four (Optional) Test Stroke 0~20mm Adjustable Range of Test Rod Fixture 0~180mm Dimensions (L*W*H) 500×400× 550mm Machine Weight 25kg Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

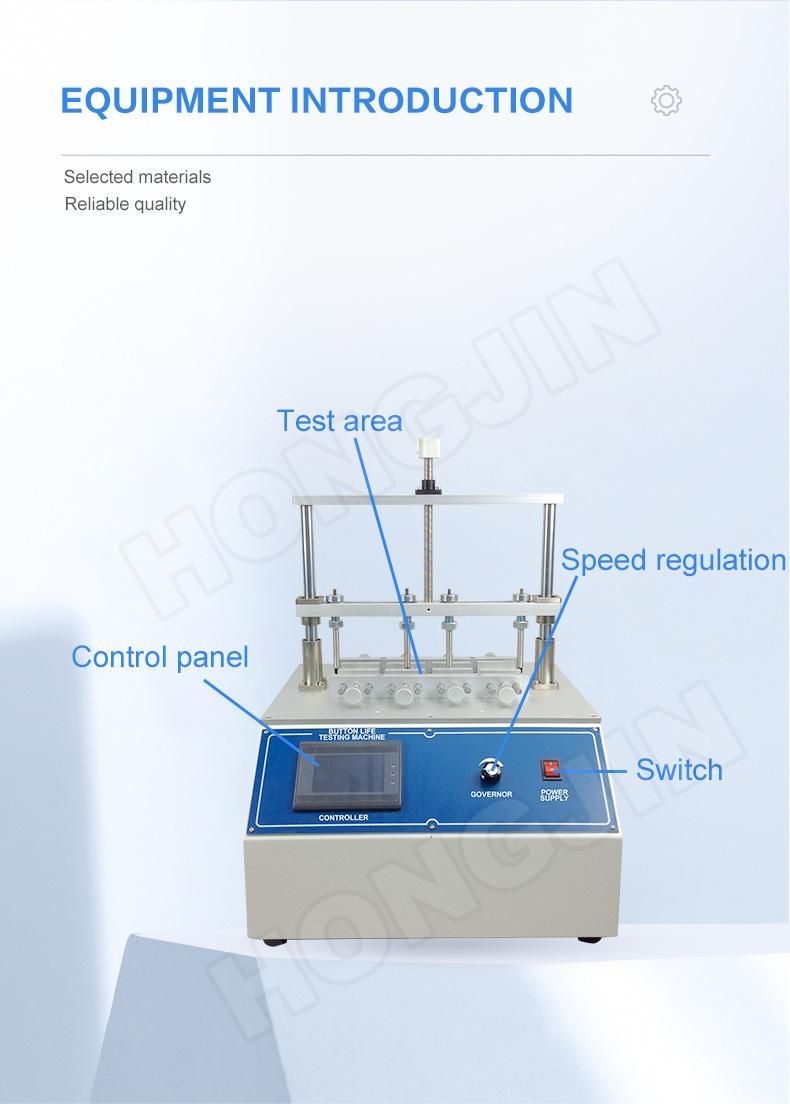

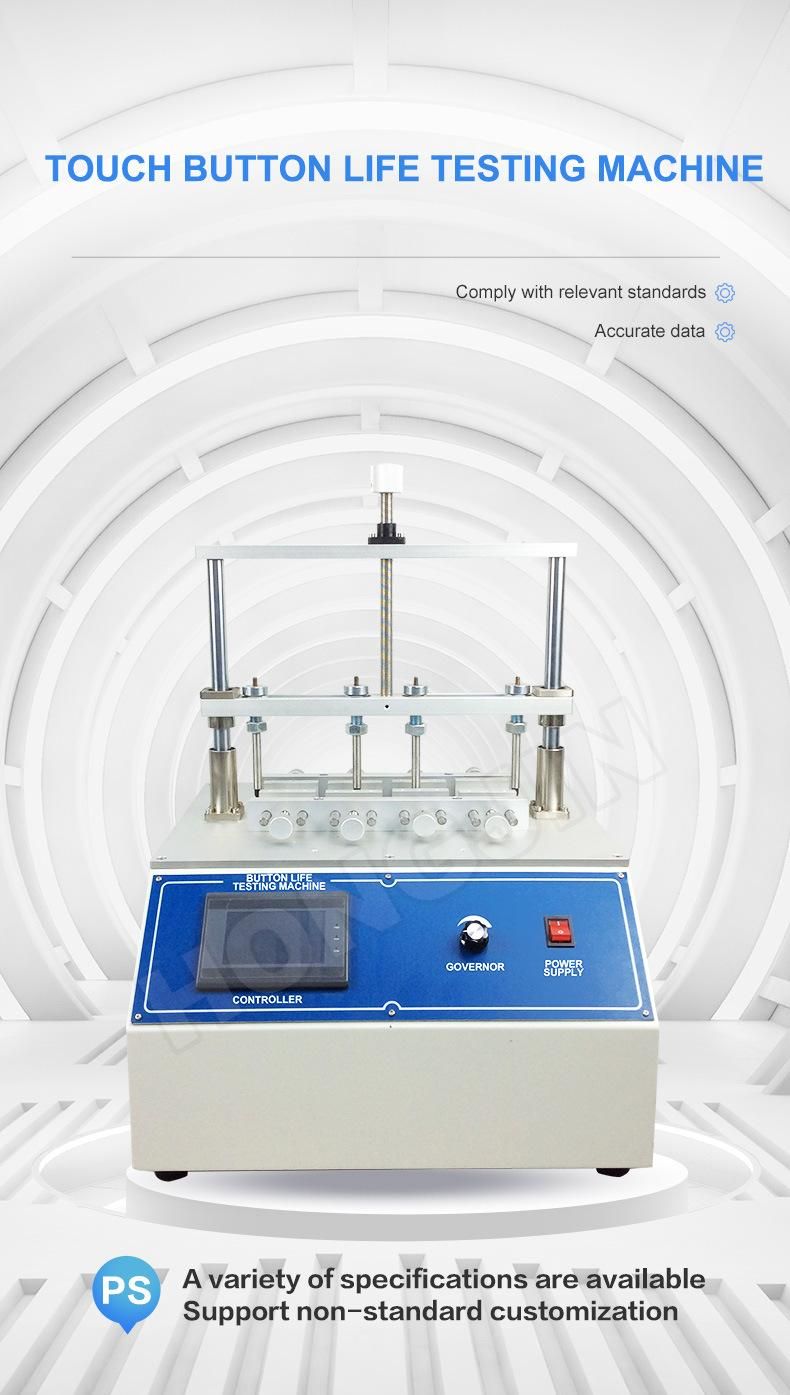

Button life testing machine is suitable for mobile phones, computers, electronic dictionaries, car players, remote control buttons, vehicle alarms, fax machine buttons, MP5, MP4, MP3, button switches, touch switches, membrane buttons, rubber Keys, silicone keys and other keys are used for life testing. This machine is to put the product in the test position of the corresponding station, and the key test bar simulates the life test of the product under a certain test load, speed, stroke, and number of times.


Test station	4 (working at the same time)
Load weight	50, 100, 200, 300, 500g each of four (optional)
Test timer	0~99999999 times
Test conduction times counter	0~999999 times (automatic counting when four-station is turned on, and counting automatically when disconnected)

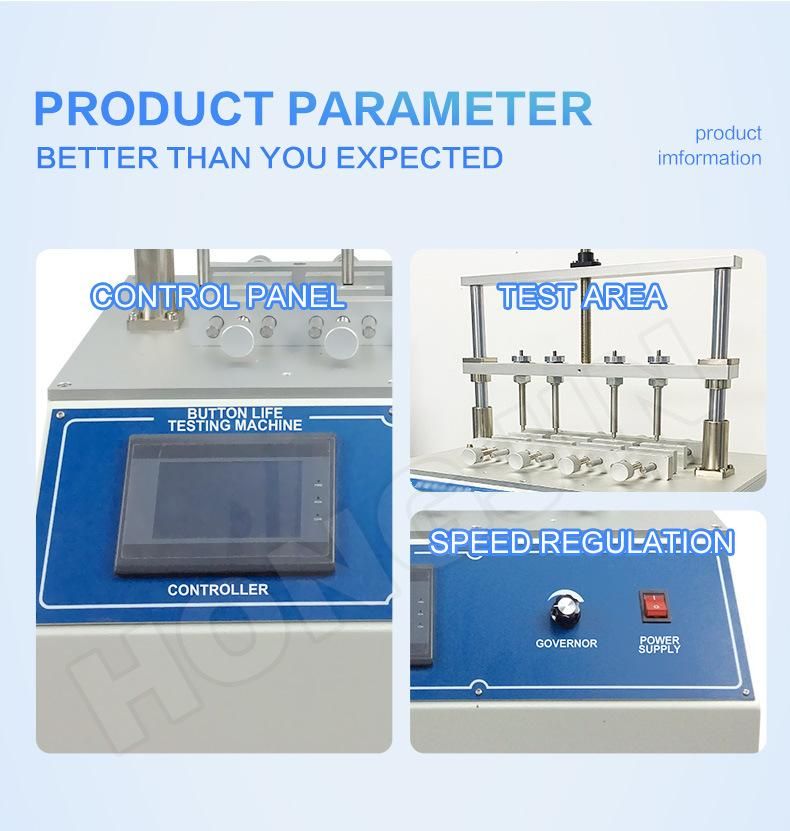

Test speed	5~60 times/min (adjustable knob, LCD display
Test stroke	0~20mm
Conventional clamping range of test fixture	60×70mm (adjustable by hand)
Adjustable range of test rod fixture	0~180mm
Dimensions (L*W*H)	500×400× 550mm
Machine weight	25kg

Usage:
1. Adjustment of bending angle: open the side door of the testing machine, loosen the connecting screw between the motor driving wheel and the connecting rod, move the position of the sliding block wrapped in the chute, mark the index on the swing mechanism to the required angle during the test, and then tighten the connecting screw between the driving wheel and the connecting rod.
2. Short the positive and negative of the tested lead plug piece, and then clamp it on the test fixture.
During the test, if the tested power line on a station has been bent, the counter of the station will automatically stop counting. At this time, the user can stop the machine for inspection or replace it with a new sample, or continue the test until the end of the test.
