• Model NO.：EV-3020
• Production Capacity：30sets Per 30days

Basic Info.

Model NO. EV-3020 Production Capacity 30sets Per 30days

Product Description

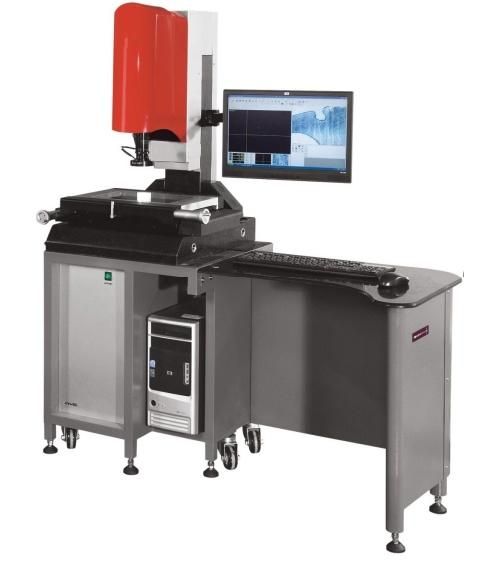

Image measuring machine
 Main technical data Measuring range: x: 300mm Y: 200mm Z:200mm
Resolution: 0.0001m
The X.Y liner accuracy:U = (2.5+ L/200) μm
Repeatability accuracy: ±0.002mm
Size of loading table: 460mmx360mm
Size of glass table: 340mmx240mm
Loading Weight: 20kg
The Max. Height of the work piece: 200mm
Optical magnification: 0.75X-4.5X
Image magnification: 25-150X
Image system: SONY1/2 Chip high resolution color camera( Made in Japan)
On-axis light: Integrated lens
Lighting system: F-100 40 Full-function light source( with laser assisted focusing)
Orientation system: Double laser assisted positioning
Electrical control system: AR-3 Image measuring machine ethernet network control system
Transmission type: ray rod transmission+ double rail
Operating type: X.Y hand wheel+rapid move  Z motor-drive
Machine case, Z axis column: High accuracy granite platform
Data output: Word, Excel
The dimension of main machine: 690x720x890mm
The dimension of complete machine: 1350x800x1700mm
