• Model NO.：GW-026A
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-026A
• Test Speed：0-200 mm,Min
• Specimen Size：16 mm
• Dimension：76*42*39 Cm
• N.W：65 Kg
• Transport Package：Wooden Case
• Specification：76*42*39cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-026A Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-026A Test Speed 0-200 mm/Min Specimen Size 16 mm Dimension 76*42*39 Cm N.W 65 Kg Transport Package Wooden Case Specification 76*42*39cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

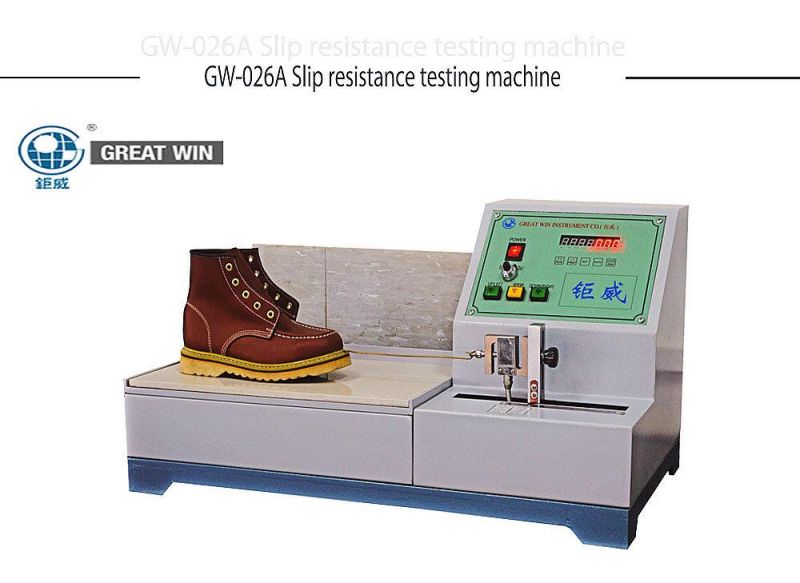

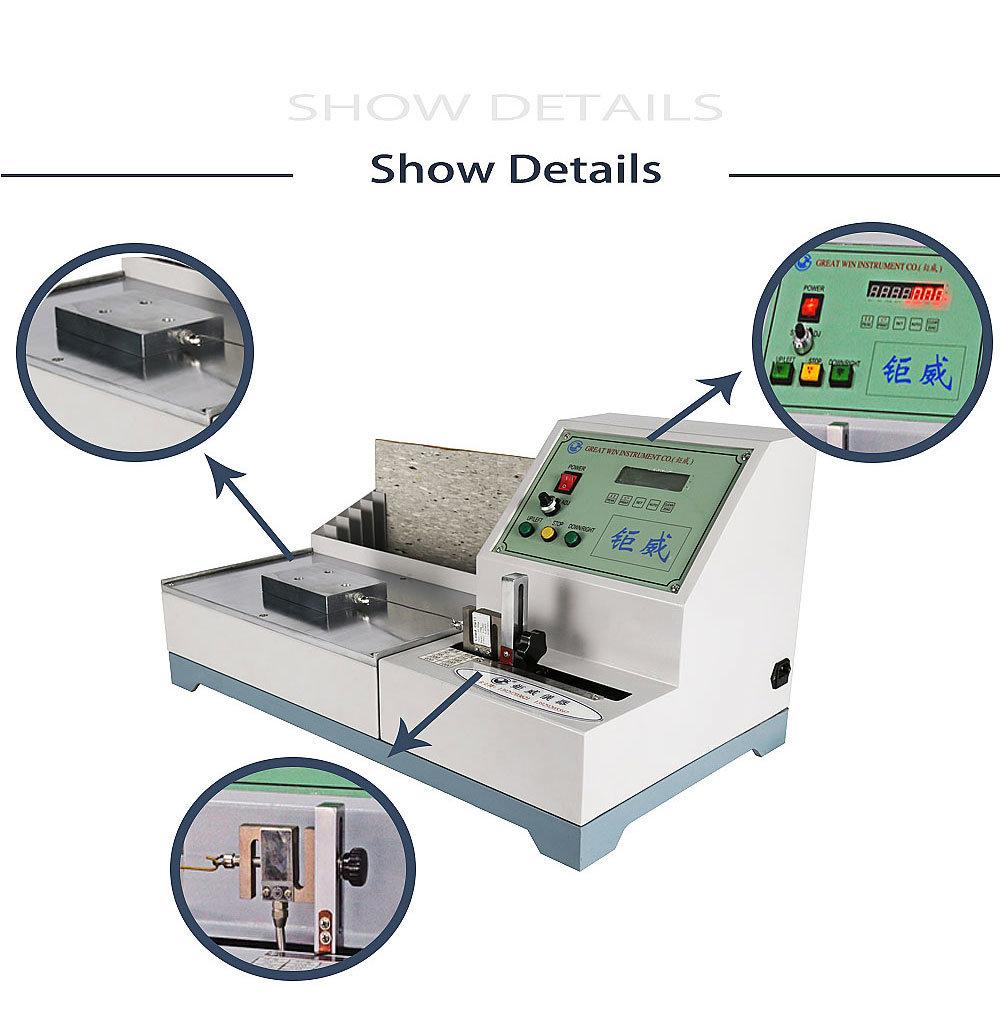

Slip resistance testing machine/equipment/Coefficient of friction testing machine(GW-026A )

•Brief introduction:
The instrument through test drive a certain specification and tensile strength of the specimens with a certain load required to calculate the maximum static slide coefficient of samples, to determine the soles slide properties of the material, the equipment can test the finished shoes, the sole and only test specimens. Can do dry, wet, and the oil type.

•Technical Specifications:

Model	GW-026A  Slip resistance testing machine
Weight:	2.7kg
Test speed:	0-200mm/min
Specimen size:	16mm
Dimension:	760*420*390mm
N.W.:	65kg

•Standard for:
ASTM-F609

•Attached accessories:
2pcs PVC test table
1pc standard die mould


What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
