LV/Mv/Hv Circuit Breaker Dynamic Mechanical CB Analyzer, Circuit Breaker Time Trip Velocity Analyzer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Channels：12
  • Time Measurement Range：4000ms
  • Sensors：Linear Resistance Sensor and Angle Resistance Sens
  • Pre-Insertion Resistance Measurement：Range: 50~5000ohm; Error :<1%Rdg+2D
  • Application：Test All Kinds of Circuit Breakers
  • Dynamic Resistance Measurement：Test Current: 25~100A

Base Info

  • Model NO.：GDGK-307
  • Contact Resistance Measurement：Range:0--10mohm ; Error<0.5%Rdg+0.05%Fs
  • Vibration Measurement：Range: 0~5000g; Error:<3%
  • Coil Current Measurement：Range: 0~20A; Resolution: 0.001A; Error:<0.01A
  • Power Supply：AC220V±10%; 50Hz±10%
  • Transport Package：Plywood Case
  • Specification：40kg
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9030849000
  • Production Capacity：200piece,Month

Description

Speed measurement250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D25mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2DAngle sensor: 0~20m/s; error:<0.5%RDG+2DAcceleration sensor: 0~20m/s; error:<5%RDG+2DCoil current measurementRange: 0~20A; resolution: 0.001A; error:<0.01AVibration measurementRange: 0~5000G; error:<3%Internal DC power sourceVoltage: 12~265V; current:0~20AData SaveBuilt-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connectionPower supplyAC220V±10%; 50Hz±10%Working environmentTemperature: -10~50°C; Humidity:<80%

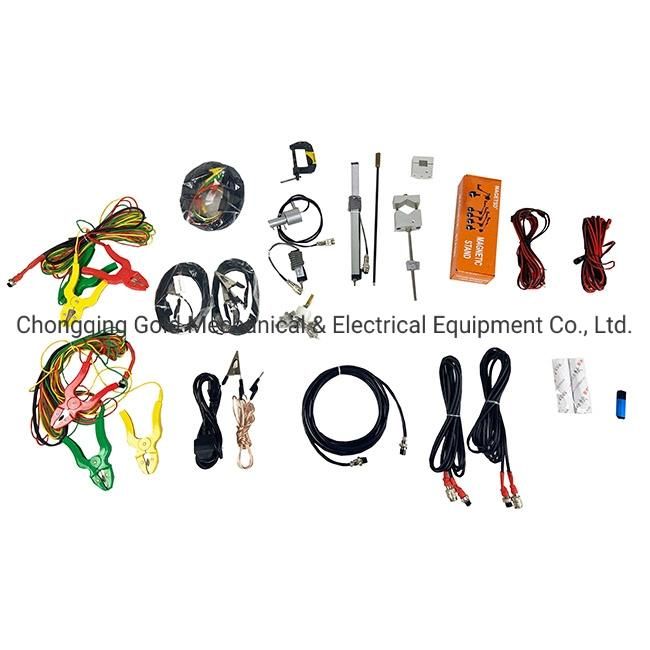

Real Pictures:
LV/Mv/Hv Circuit Breaker Dynamic Mechanical CB Analyzer, Circuit Breaker Time Trip Velocity Analyzer

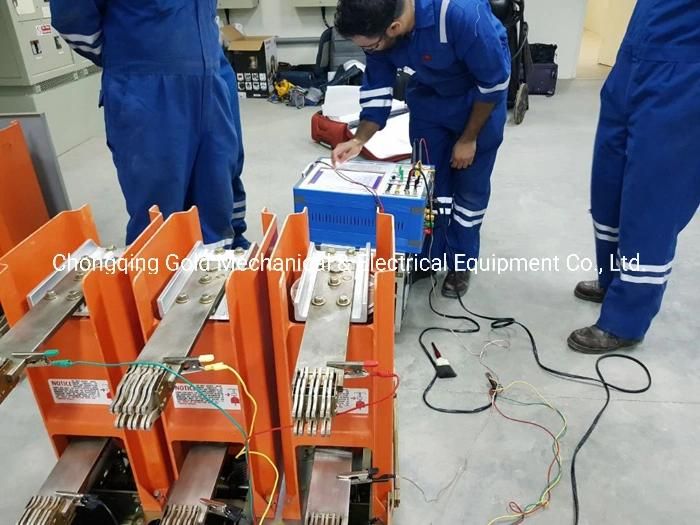

LV/Mv/Hv Circuit Breaker Dynamic Mechanical CB Analyzer, Circuit Breaker Time Trip Velocity AnalyzerField work in UAE

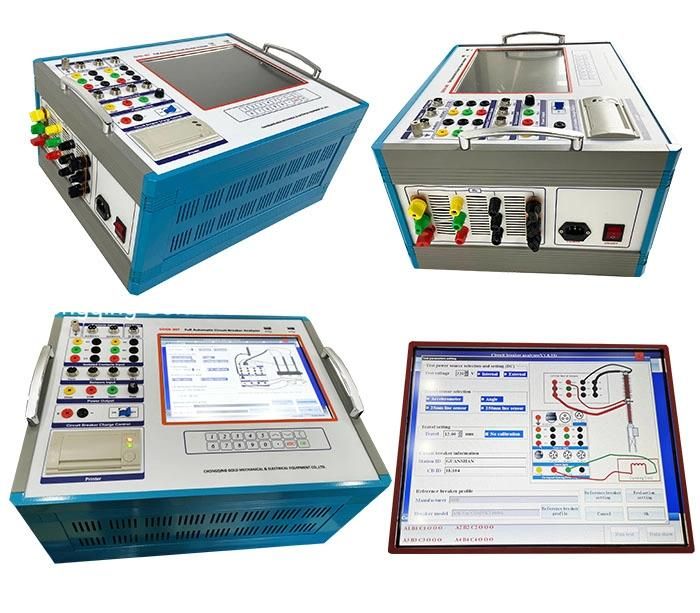

LV/Mv/Hv Circuit Breaker Dynamic Mechanical CB Analyzer, Circuit Breaker Time Trip Velocity Analyzer
