Railway Eqipment Portable Rail Flaw Detector Single Rail Tester

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Max Diameter of Workpiece：Flaw Detector
  • Mass Scope of Workpiece：Flaw Detector
  • Type：Flaw Detector
  • Maxcapacity：Flaw Detector
  • Accuracy Grade：Flaw Detector
  • Load Way：Flaw Detector

Base Info

  • Model NO.：Flaw Detector
  • Loading Method：Flaw Detector
  • Display：Digital
  • Control：Flaw Detector
  • Weight：2kg
  • Power Source：Flaw Detector
  • Oil Cylinder Position：Flaw Detector
  • Working Frequency：(0.5-15)MHz
  • Material Sound Velocity：(1000-9999)M,S
  • Pulse Shift：(0-2000)mm
  • Probe Zero：(0-99.99)Us
  • Vertical Linear Error：≤3%
  • Transport Package：Wooden
  • Specification：270mm*190mm*60mm
  • Trademark：China Coal
  • Origin：Shandong, China
  • Production Capacity：1000 Sets Per Month

Description

Product Name

Flaw Detector

model

YUT2600

working frequency

(0.5-15)MHz

Resolution

≥32dB

Material sound velocity

(1000-9999)m/s

Dynamic Range

≥30dB

Work way

Pulse echo, twin crystal

Sensitivity margin

≥55dB (depth200mm Φ2)

Pulse shift

(0-2000)mm

Average electrical noise level

≤10%

Probe zero

(0-99.99)us

Battery working time

>8 hour

Gain adjustment

(0-110)dB,(0.1,1,2,6)dB

 power source

12V DC,220V AC

Vertical linear error

≤3%

Dimension

270mm*190mm*60mm

Horizontal linear error

≤0.3%

weight

2Kg

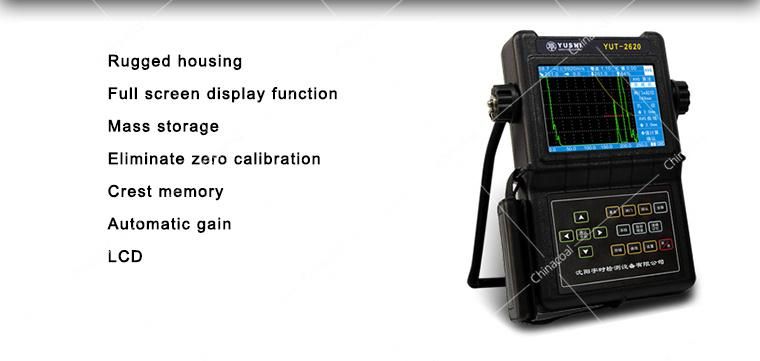

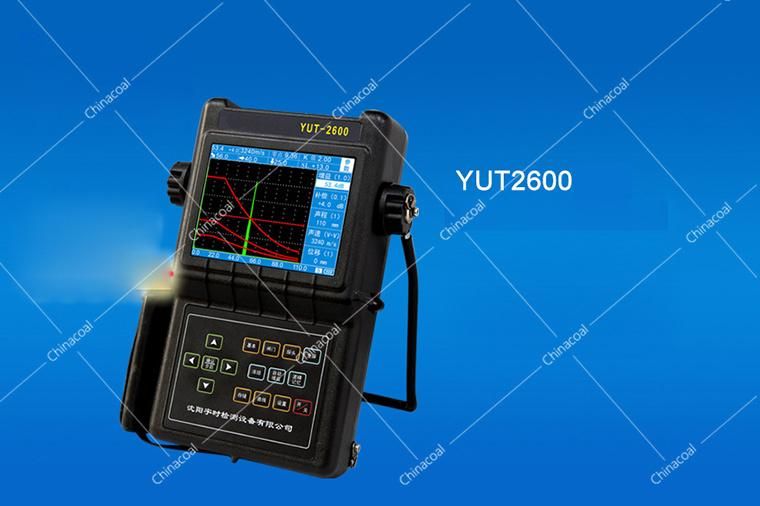

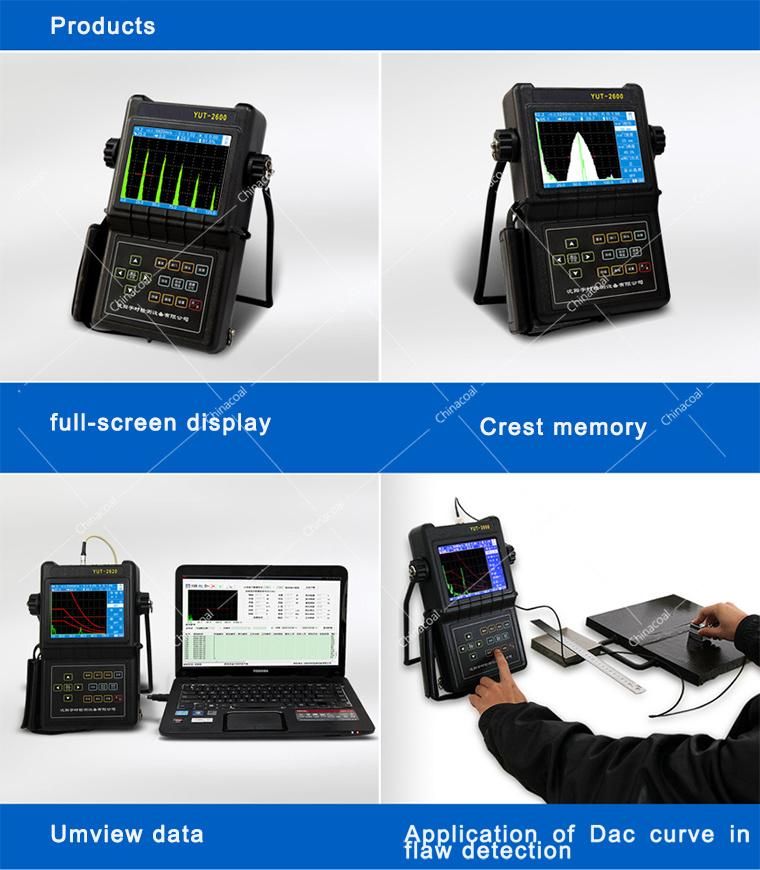

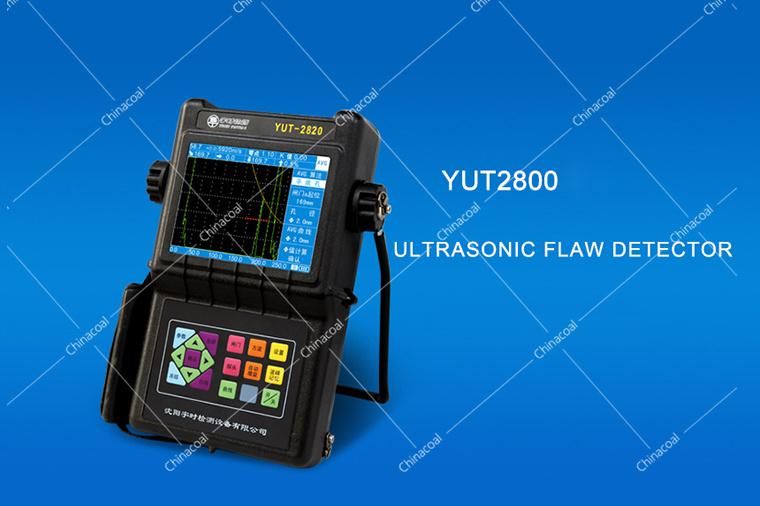

Photos of Ultrasonic Flaw Detector
