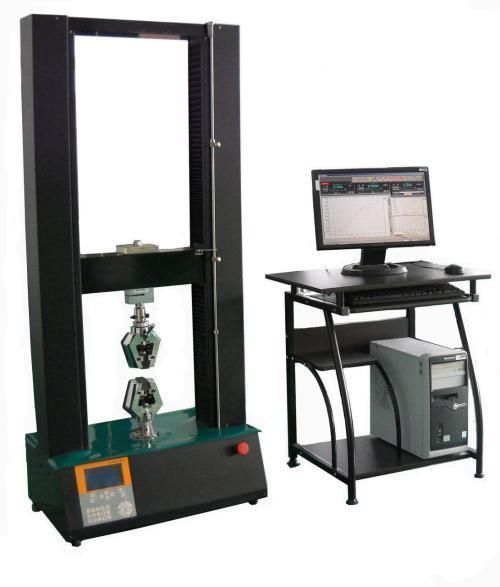

20kn Corrugated Carton Compression Tester and Rubber Tensile Testing Machine

Qingdao Evertech Industry Co., Ltd.
  • Mass Scope of Workpiece:<900kg
  • Type:Tensile Testing Machine

Base Info

  • Model NO.:WDW-20M
  • Maxcapacity:<1000KN
  • Accuracy Grade:0.5
  • Load Way:Electronic Load
  • Loading Method:Dynamic Load
  • Display:Digital
  • Control:Computer Control
  • Weight:100-500Kg
  • Power Source:AC220V
  • Oil Cylinder Position:Under
  • Max Load:20kn
  • Accuracy:1 Class
  • Test Speed:0.01mm-500mm,Min
  • Certificate:Ce ISO
  • Standard:BS.En.ASTM
  • Warranty:12 Months
  • Transport Package:Standard Export Wooden Box
  • Specification:Electronic
  • Trademark:Evertech
  • Origin:Qingdao, China
  • HS Code:90248000
  • Production Capacity:100 Set,Sets Per Month

Description

Model

WDW-20M

Max. Testing Force

20kN

Character

Adopting TECO servo systems and servo motor, with full-digital Measure control system

Machine Stiffness(kN/mm)

80

Measure Range of Testing Force

2%-100% of the Max. testing force

Accuracy of Testing Machine

Over ±1% than the value display

Accuracy of Deformation Measure

±1%

Measure of Cross-beam Displacement(mm)

Discrimination 0.001

Accuracy of Testing Force Value Display

Over ±1% than the value display

Measure Range of Deformation

2-100%

Measure Range of Large Deformation

10~800(optional)

Accuracy of Large Deformation

With in ±1% of the value display

Discrimination of Displacement(mm)

0.001

Adjustment Range of Force Control Speed

0.001~10%

Accuracy of Force Control Speed

≤±1%

Adjustment Range of Deformation Speed

0.00025 /S~0.0025 /S

Control Accuracy of Deformation Rate

≤±1%

Adjustment Range of Displacement Rate

0.01mm/min~500mm/min;(random setting)

Accuracy of Displacement Rate and Space

≤±1%

Tensile Volume(mm)

800

Width of the Testing Space(mm)

370

Overall Dimension (mm)

686 ×525×1880

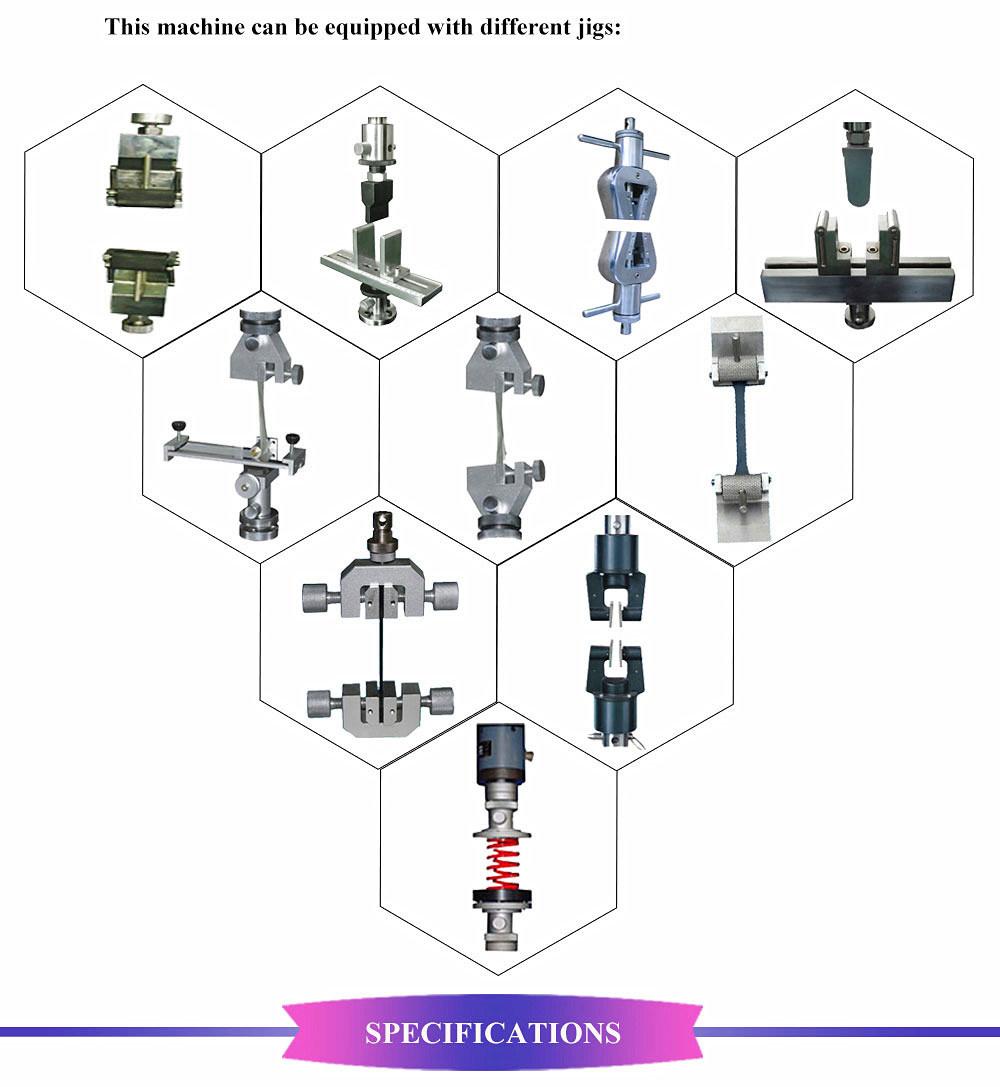

Clamping Type

Standard Refiguration: wedge tensile,compression, bending optional implement,wedge, plate and any other jaw optional implement

Weight(kg)

250

Motor Power(kW)

0.75

Type of Machine

Floor type

Certifications20kn Corrugated Carton Compression Tester and Rubber Tensile Testing Machine
Testing Equipment
20kn Corrugated Carton Compression Tester and Rubber Tensile Testing Machine

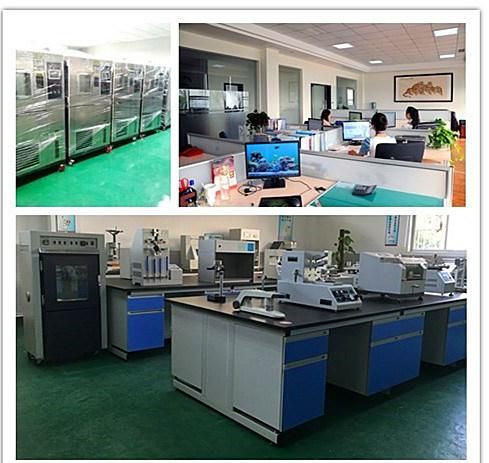

Company Information
20kn Corrugated Carton Compression Tester and Rubber Tensile Testing Machine
20kn Corrugated Carton Compression Tester and Rubber Tensile Testing Machine
Packaging & Shipping

1. Packing Method: Horizontal Packing to saving moreipping cost.

 2. Packing Materials: Plywood Case metting export long transport requirement.

 3. Shiping Time: Shipped within 15-20 days after payment.

 4. Shipping Way: Shipped by sea or air is available.
