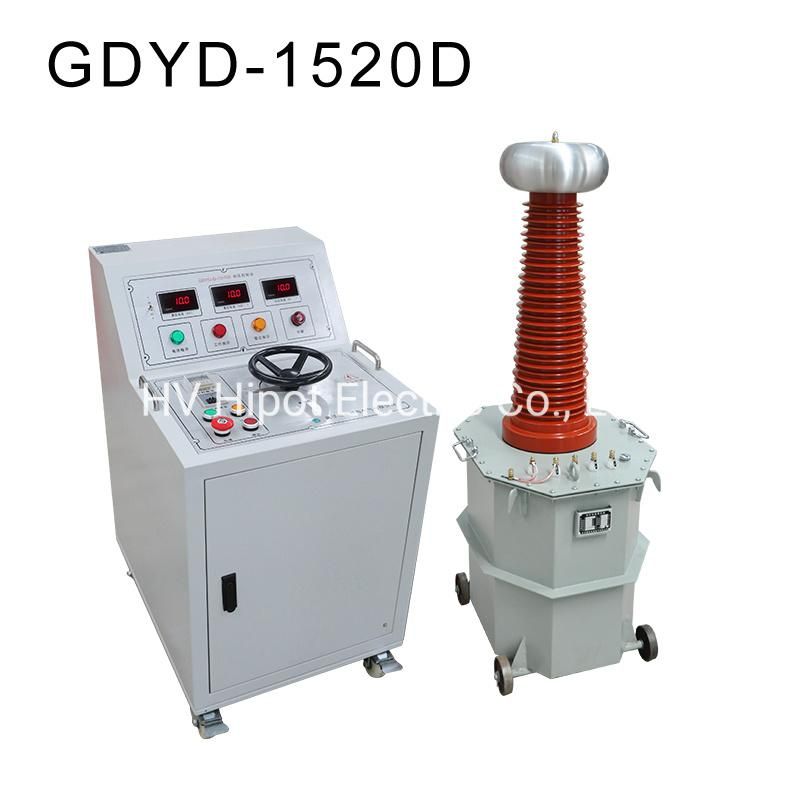

GDYD-1520D 20kVA 150kV Digital AC Hipot Test Set


AC hi-pot testing is the effective and direct way to test insulation strength for electrical equipment, apparatus or machines. It checks dangerous flaws which assure electrical equipment continuous working.
Typical applications include testing of transformers, switchgear, cables, capacitors, aerial motors platforms, hot sticks bucket bricks, vacuum bottles and other related equipment like vacuum interrupters, blankets, ropes, gloves, hydraulics hose, instruments transformers generators.

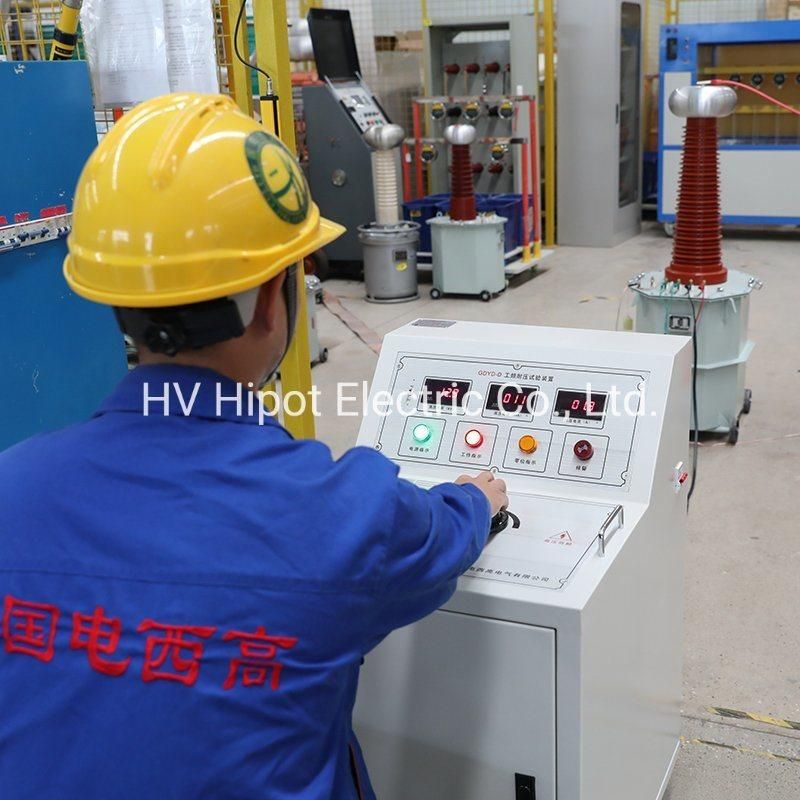

GDYD series AC/DC Hipot Test Set is composed of manual control unit and AC testing transformer(HV unit) which output AC/DC voltage smoothly. Meanwhile, it has many monitoring and protection functions.

Features

1. Digital display panel mounted controls & indicators with easy to read legend.
2. Monitoring high voltage side voltage, low voltage side current and indicator of zero, power, working start, timing.
3. Over-current protection, zero-starting protection, sound and light alarm.
4. Continuously variable output from zero to full voltage.
5. With new type time relay, time range is more wider (1S ~ 99H).
6. Using the latest current relay, more accurate and reliable.
7. All equipment equipped with wheels, easy to move.

Technical Specifications


Power Supply	AC 380V
Frequency	50Hz±1
Output	0-150kV, AC 0-133mA
Capacity	20kVA
HV Source	Insulation Oil (Oil type testing transformer)
Output control	Manual control
Voltage accuracy	≤3.0% (F.S)
Current Accuracy	≤3.0% (F.S)
Timing range	0-99H
Metering	Digital display, kV meter: 0-150kV, mA meter: 0-135mA
Humidity	85% RH
Environmental temperature	-20ºC~50ºC
Weight	Control Unit: about 90kg 20kVA/100kV oil testing transformer: about 200kg.

Accessories

Power cord                                                 1 piece
Metering cable                                          1 piece
Output cable                                              1 piece
HV cable                                                      1 piece
Ground cable                                            1 piece
Protective resistor                                   1 piece
Microammeter&connection cable  1 piece
Discharge rod                                            1 piece
User's guide                                               1 piece
Factory test report                                  1 piece
