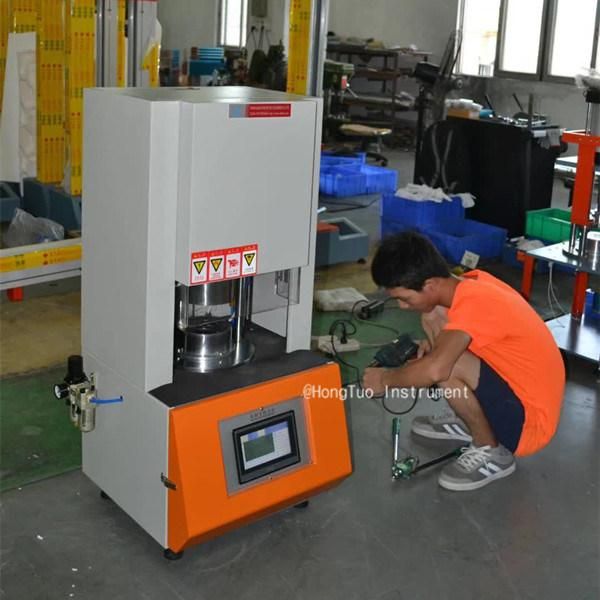

DH-MV-01 ASTM D 1646 Rubber Mooney Viscometer Testing, Digital Mooney Viscosity Measurement Instrument
DongGuan HongTuo Instruments Co., Ltd.- Type：Rubber Mooney Viscometer Test
- Temperature Resolution：0.1°C
- Torque Range：0-100 Mooney
- Calibration Accuracy：100±0.5 Mooney
- Delivery Time：2-7 days
- Testing Before Delivery：Yes
Base Info
- Model NO.：DH-MV-01
- After-sale Customer Service：Yes
- OEM Service：Yes
- Transport Package：Standard Exporting Wooden Package
- Specification：660*570*1300mm
- Trademark：DahoMeter
- Origin：Dongguan, Guangdong
- HS Code：9027809900
- Production Capacity：300 Sets,Month
Description
Main Technical Parameters
A. Temperature range 0-200°C
B. Temperature measurement accuracy ≤±0.3°C
C. Control accuracy ≤±0.3°C
D. Temperature Resolution 0.1°C
E. Torque range 0-100 Mooney
F. Calibration accuracy 100±0.5 Mooney
G. Rotor speed 2±0.02 rev/min
H. Measurement time 0-200 points Resolution 1 second
I. Ambient temperature 0-35°C
J. Relative humidity <80
K. Test pressure 11.5KN ±0.5KN
L. Gas distribution 0.45-0.6MPA
M. Power supply AC 220V 1KVA
N. Machine size: about 660×570×1300mm
O. Machine weight: about 210Kg
Main Configuration
1. Cylinder: Jarring series standard cylinder
2. Temperature Control System: Omron Temperature Controller
3. Force sensor: Shanghai Chengzhi high-precision sensor
4. Pneumatic components: Yadeke
5. Pneumatic door automatic lifting
6. A special test software for Mooney viscometer (domestic, independent research and development.)
7. Imported NSK Bearings
