• Model NO.：YDT-15
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：N,a
• Drop Quantity：4PCS
• Max. Specimen Weight：2kg
• Drop Height：0-15cm
• Test Speed：6-20times,Min
• Control Type：PLC Control
• Machine Size：63X55X75cm
• Machine Weight：50kg
• Air Source：Less Than 0.5MPa
• Application：Mobile Phone, Dictionary, Charger, Camera,etc
• Power Supply：AC 1 Phase 220V 50Hz
• Transport Package：Plywood Case
• Specification：CE, TUV, SGS Certificate
• Trademark：Yuanyao
• Origin：China
• HS Code：90318090
• Production Capacity：100sets,Month

Basic Info.

Model NO. YDT-15 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position N/a Drop Quantity 4PCS Max. Specimen Weight 2kg Drop Height 0-15cm Test Speed 6-20times/Min Control Type PLC Control Machine Size 63X55X75cm Machine Weight 50kg Air Source Less Than 0.5MPa Application Mobile Phone, Dictionary, Charger, Camera,etc Power Supply AC 1 Phase 220V 50Hz Transport Package Plywood Case Specification CE, TUV, SGS Certificate Trademark Yuanyao Origin China HS Code 90318090 Production Capacity 100sets/Month

Product Description

Introduction and application:

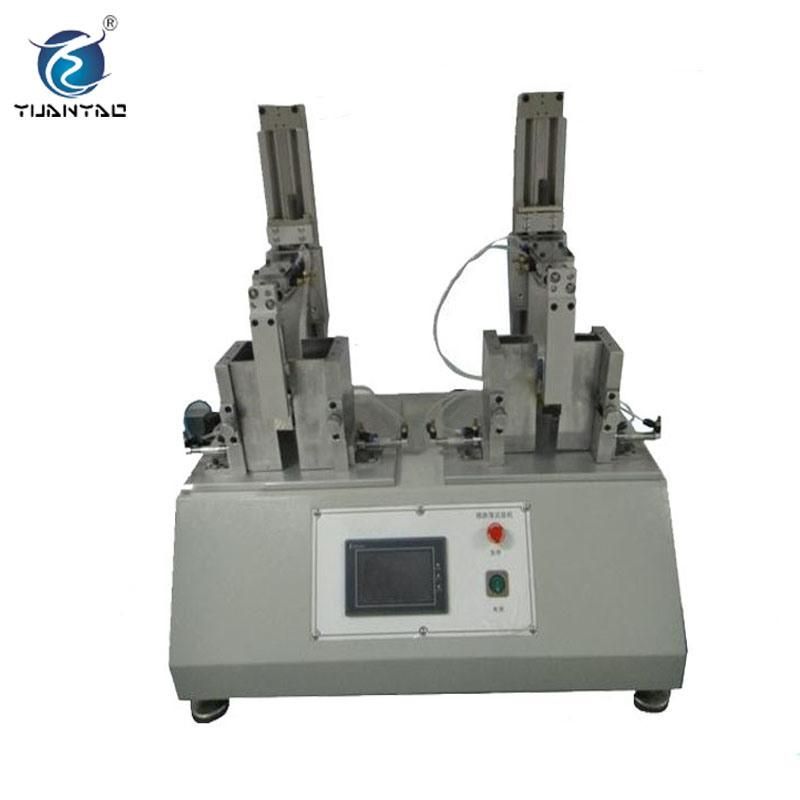

Customized slight falling resistance lab instrument adopts pneumatic structure, place the specimen on a special holder, press drop button, then cylinder loose, meanwhile, the specimen will be free fall test. Drop height is adjustable. It is suitable for the free drop test of mobile phones/cell phones, electronic dictionaries, building intercom, and CD/MD/MP3 and other small consumer electronic products and components.



Specification
1. Drop height: 0~15cm
2. Machine size: 63x55x75cm
3. Max. specimen weight: 2kg
4. Drop specimen quantity at the same time: 4pcs
5. Air sourch:≥0.5MPa
6. Test speed: 6~20times/min
7. Drop direction: 6 working station(front, back, left right sides, top bottom sides, four corners)
6. Power: AC 1 phase 220V 50Hz
