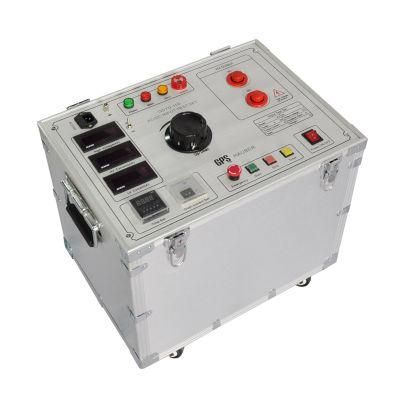

Portable One Piece Design AC 10kV DC 14kV Hipot Tester
HV Hipot Electric Co., Ltd.- After-sales Service：Yes
- Warranty：1 year
- Type：Universal Testing Machine
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：GDYD-11D
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Capacity：1kVA
- Output current：AC 0-100mA
- Application：Electrical equipment , transformer
- Transport Package：Standard Export Wooden Box
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan, China
Description
Power input
AC220V±10%,50Hz
Capacity
1kVA
Output voltage
AC 0-10kV , DC 0-14kV
Output current
AC 0-100mA
Rated current rectified range
0-5A
Accuracy
1.5% of the reading±1digit(F.S)
HV ammeter range
0-100mA
Accuracy
1.5% of the reading±1 digit(F.S)
LV ammeter range
0-5A
Accuracy
2.0% of the reading±1 digit(F.S)
Timing range
0-99h
Weight
about 36kg
Dimension
425mm (L)*510mm (W)*390mm (H)
It can be customized due to customer's requirements.
More voltage and current level , feel free to contact us !
