• Model NO.：HD-B609B-S
• Loading Method：Dynamic Load
• Display：Digital, Computer Display
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Standards：ASTM JIS Cns Pstc
• Motor：Servo Motor
• Delivery Time：15 Days After Receive The Deposit
• Disign Criteria：ASTM, Cns, JIS, Pstc
• Power：1 Phase, 220V, 50Hz
• Outside Dimension：520 × 520 ×1200mm
• Test Speed：20-300mm,Min
• Load Precision：≤ 0.5%
• Accessory：One Set of Fixture
• Transport Package：Strong Plywood Case
• Specification：Design Standards: GB,T16491; GB,T1040; GB,T1041; G
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-B609B-S Loading Method Dynamic Load Display Digital, Computer Display Control Computer Control Weight 0-100Kg Power Source AC220V Standards ASTM JIS Cns Pstc Motor Servo Motor Delivery Time 15 Days After Receive The Deposit Disign Criteria ASTM, Cns, JIS, Pstc Power 1 Phase, 220V/ 50Hz Outside Dimension 520 × 520 ×1200mm Test Speed 20-300mm/Min Load Precision ≤ 0.5% Accessory One Set of Fixture Transport Package Strong Plywood Case Specification Design Standards: GB/T16491; GB/T1040; GB/T1041; G Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

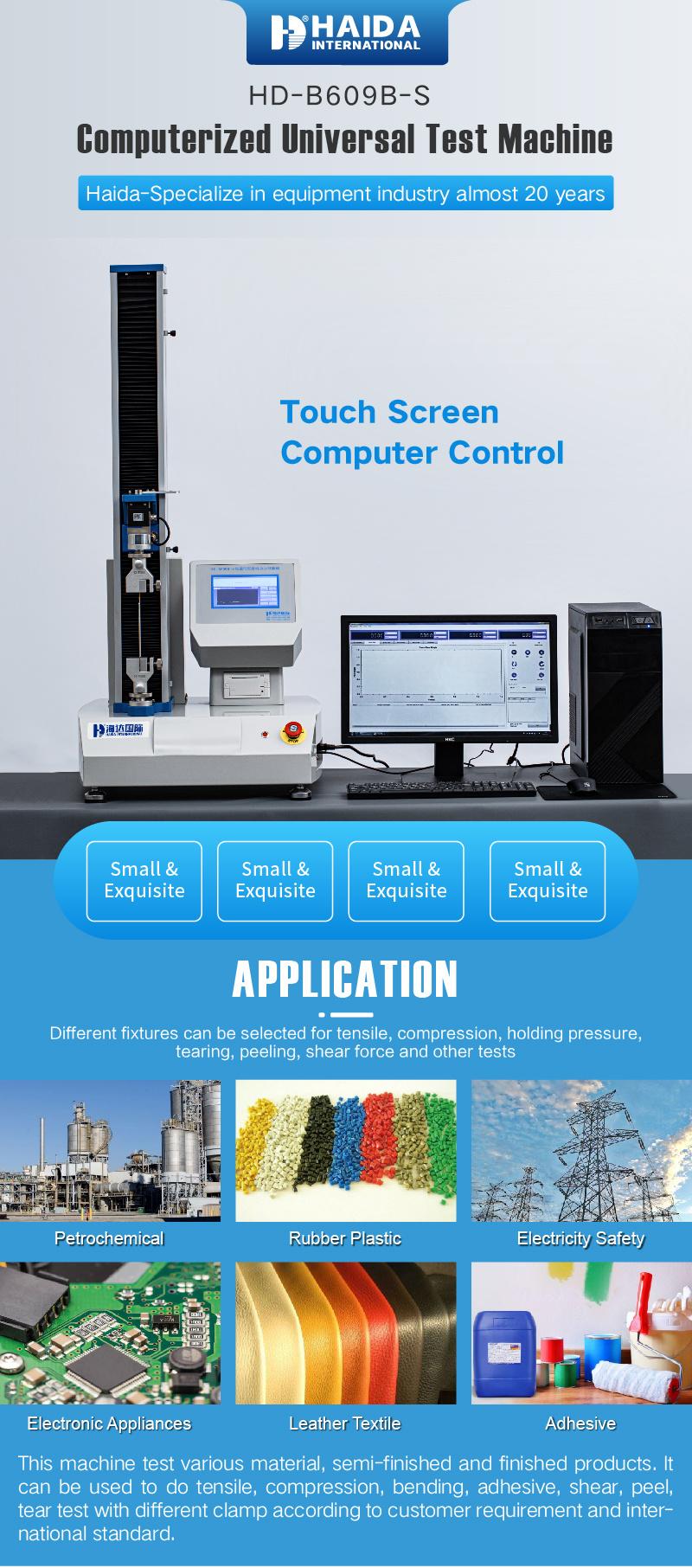

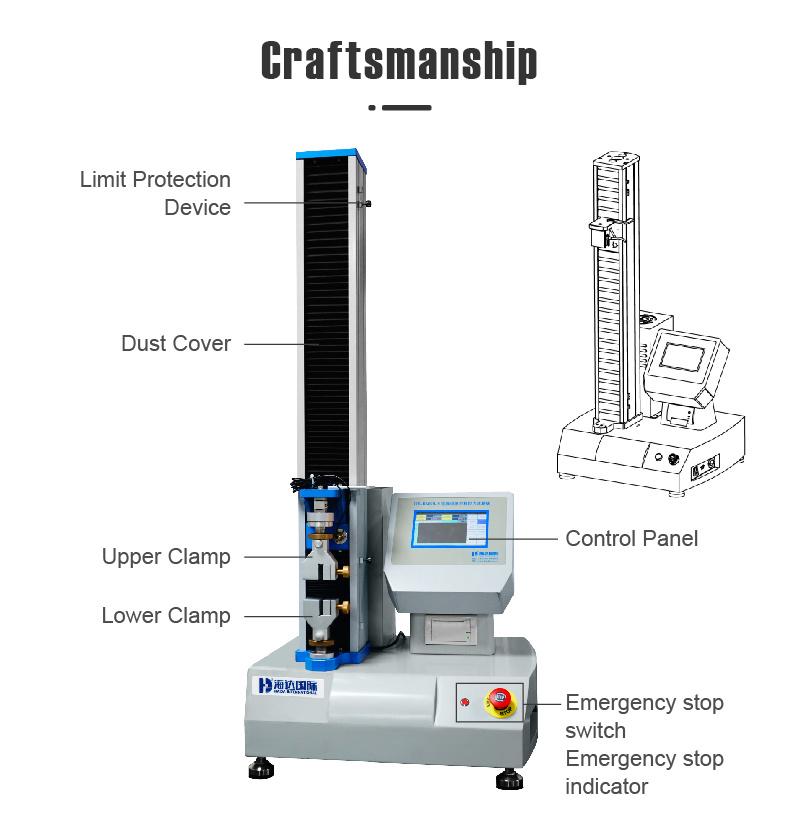

Single Column Vehicle Safe Belt Tensile Strength Tester

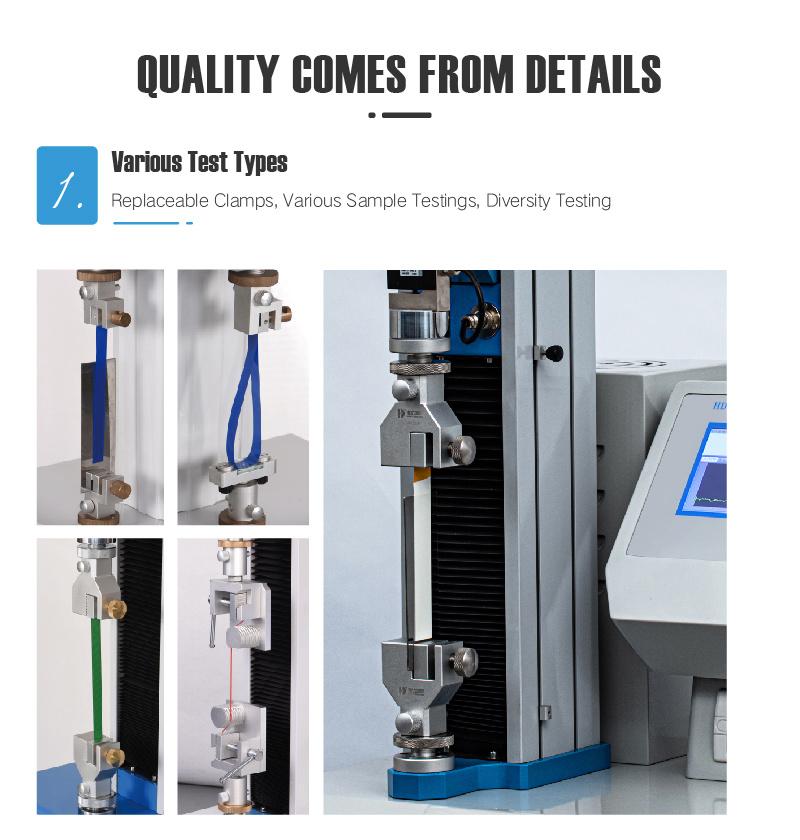

These series of Tensile Strength Tester are used to test tension, compression, shearing force, adhesion, peeling force, tear strength, etc. Of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile, etc., which are the basic facilities for input quality contorl (I. Q. C), Quality Control (Q. C. ), Physical Inspection, Mechanics Research and Material Development.

Main Parameters of Single Column Leather Tensile Strength Tester:


Capacity	50.100, 200kg, (Optional)
Load resolution	1/250, 000
Load precision	≤ 0.5%
Maximum trip	1000mm (exclude the fixture)
Test speed	20-300mm/min
Display device	PC display( which can display and print the number of tests,   print the fracture value, maximum, average and minimum values
Outside dimension	520 × 520 ×1200mm
Weight	70kg
Power	1 phase, 220V/ 50HZ
Accessory	One set of fixture

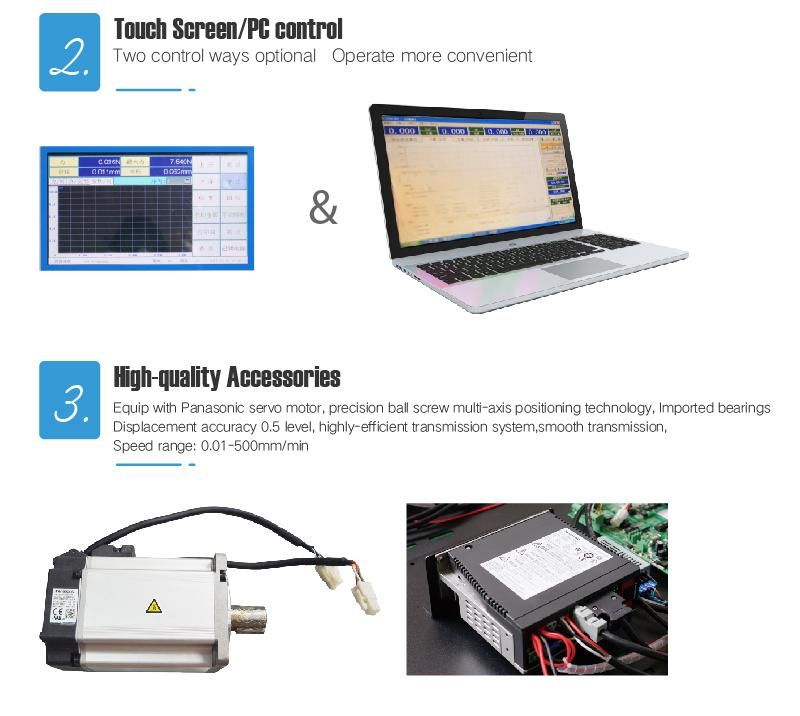

Motor	AC frequency conversion control
Disign criteria	ASTM, CNS, JIS, PSTC

Characteristics of Single Column Leather Tensile Strength Tester:

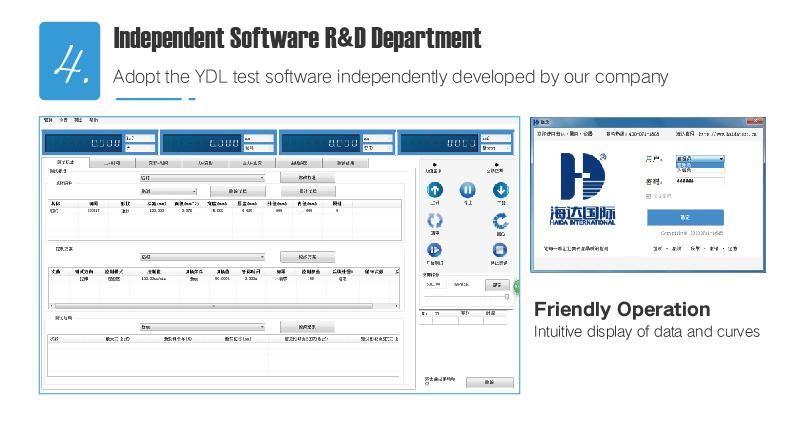

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;

2. Using a single-screen operation; Do not need to switch the screen;

3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

4. The pattern of Test reports can be self-designated; Test data can be displayed directly in the main screen;

5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;

6. With a variety of measurement units, Measure In Imperial & Metric are switchable

7. With self-return & auto-correction function;

8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;

9. With the user-defined Test methods; With experimental data analysis function;

10. High quality, accurate and reliable models with reasonable price.



Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
