IEC156 100kv Insulating Oil Transformer Oil Dielectric Strength Bdv Tester with Best Price

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Output Voltage：AC 0V~100kv
  • Test Standard：IEC60156, Is6792, BS5874, ASTM D1816, ASTM D877
  • Rate of Voltage Rise：0.5kv,S±5%, 2kv,S±5%,
  • Rate of Voltage Rise 1：3kv,S±5%,5kv,S±5%
  • Max Test Times Setting for User-Defined：9
  • Stir Time Setting for User-Defined Mode：0~999s

Base Info

  • Model NO.：GDYJ-502
  • Waiting Time Setting for User-Defined Mo：0~999s
  • Test Error：3%Rdg+0.3%Fs
  • Power Supply：AC220V±10%, 50Hz,60Hz
  • Weight：55kg
  • Transport Package：Standard Case
  • Specification：55kg
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：200piece,Month

Description

41kg



Functions:

  • Breakdown test of user-defined;

  • Proof test;

  • IEC60156/IS6792/BS5874 test;

  • ASTM D1816 standard test;

  • ASTM D877 standard test;

  • 5 minutes standard test;

  • Manual test;

  • Calibration interface for customers;

  • Uploading data to PC and making word report automatically;

  • Result print;



Features:

  • LCD screen can display test procedure and test result;

  • All the human interaction operations complete by the rotating mouse;

  • It is very easy for customers to measure the breakdown voltage of all kinds of oil;

  • You can print the test result by the micro printer internal the tester;

  • Meanwhile, you can upload the test data to PC from RS232 for data analyzing;

  • The special circuit design makes the tester has a good performance at stability and anti-noise;

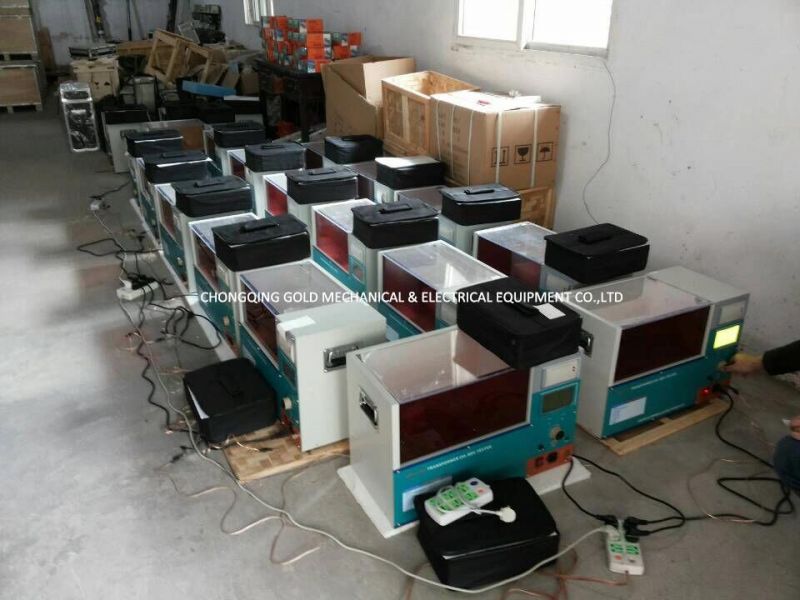

20Sets GDYJ-502 for Bangladesh customer:
