• Model NO.：YG (B) 231D
• Total Mass of The Penetrating Disc：500g
• Liquid Flow Rate：3.5s Flow Through 25ml
• Electrode Diameter：1.6mm
• Timing Accuracy：0.01s
• Substrate Size：125*125mm
• Sample Size：125*125mm
• Filter Paper Specification：100*100mm
• Overall Size：370mm*250mm*450mm
• Transport Package：Carton
• Trademark：Darong
• Origin：China
• HS Code：9024800000
• Production Capacity：2000PCS

Basic Info.

Model NO. YG (B) 231D Total Mass of The Penetrating Disc 500g Liquid Flow Rate 3.5s Flow Through 25ml Electrode Diameter 1.6mm Timing Accuracy 0.01s Substrate Size 125*125mm Sample Size 125*125mm Filter Paper Specification 100*100mm Overall Size 370mm*250mm*450mm Transport Package Carton Trademark Darong Origin China HS Code 9024800000 Production Capacity 2000PCS

Product Description

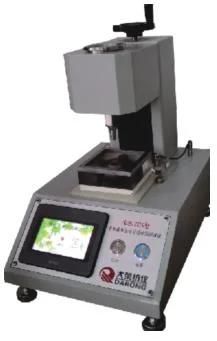

 YG (B) 231D Non-woven liquid penetration time tester


[Scope of application]
The instrument is suitable for comparing the liquid penetration performance of different non-woven cloth covering materials. It can also be used to control the quality of nonwovens cladding materials and compare the penetration time of different nonwovens cladding materials.
[Related standards] GB/T24218.8, GB/T24218.13, ISO9073, FZ/T60017, etc
[Technical parameters]
1. The overall size of the penetration plate: 100mm×100mm×25mm (L×W×H)
2. Total mass of the penetrating disc :(500±5)g
3. Liquid flow rate :(3.5±0.25)s flow through 25ml
4. Electrode diameter: φ1.6mm
5. Time timing accuracy: 0.01s
6. Substrate size: 125mm×125mm
7. Sample size: 125mm×125mm; Filter paper specification: 100mm×100mm
8. Overall size: about 370mm×250mm×450mm (L×W×H)
9. Power supply: AC220V±10% 50Hz 0.2KW
10. Weight: 10kg
