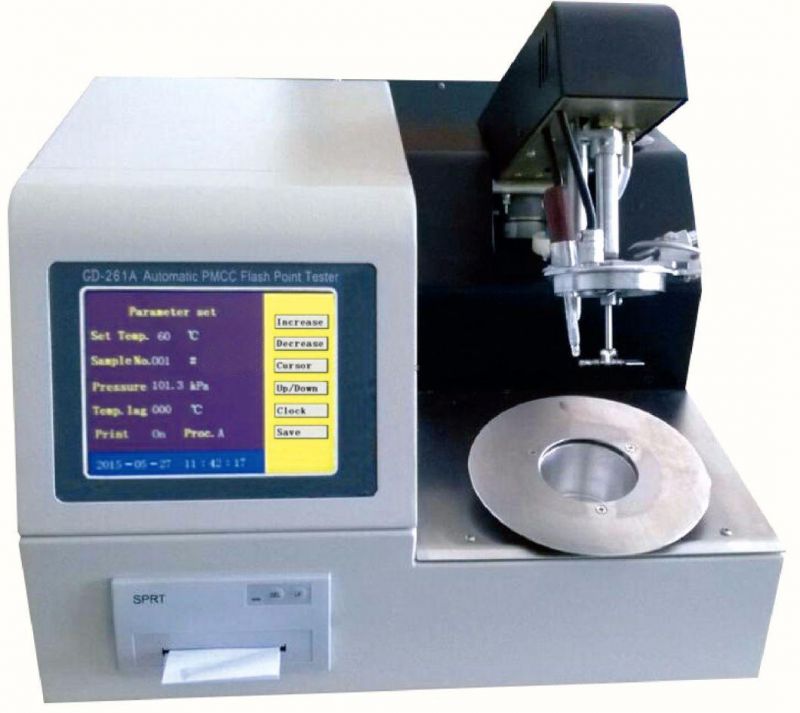

• Model NO.：GD-261A
• Maximum Power Consumption：500W
• Flash Point：More Than 40ºC
• Transport Package：Standard Wooden Case
• Specification：ISO
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：100 Set , Month

1Simulation tracking displays function curves of heating up and test time.2Equipped with the English prompt function of mis-operation.3Equipped with prompt function of test date,test time and other parameters.4Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.5Differential coefficient detection.Automatically correct the system deviation.6Automatically open the lid,detect the flash point and print test data.7The test arm rises up and lowers down automatically.8Igniting with electric igniting gun,forced air cooling.


2Temperature measurementRange: Room temperature~300°CRepeatability: ≤ 2°CReproducibility: ≤ 4°CAccuracy: 0.1°C3Heating rateProcedure A: (5~6)°C/minProcedure B:(1~1.6)°C/minAutomatic control and manually adjustable.4Stirring rateProcedure A: (90~120)RPMProcedure B: (250±10)RPMAutomatic control and manually adjustable.5Igniting modeIgniting source: gas(or other civilian fuels,the same below)Electric ignition. Gas flame diameter:3.2mm~4.8mm6Ambient temperature≤ 40°C7Relative humidity≤ 80%8Maximum power consumption350W
