• Model NO.：HD-F750-2
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Operation：Easy to Operate
• Control and Display：Computer
• Capacity：200kg
• Unit：Kg, N, Lb
• Max Stroke：500mm
• Test Speed：0×500mm,Min
• Motor：Servo Motor
• Power：Single Phase, 220V, 50Hz
• Dimension：790×590×1010mm
• Transport Package：Strong Case
• Specification：ASTM
• Trademark：Haida
• Origin：Dongguan
• HS Code：9024
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. HD-F750-2 Control Computer Control Weight 100-500Kg Power Source AC220V Operation Easy to Operate Control and Display Computer Capacity 200kg Unit Kg, N, Lb Max Stroke 500mm Test Speed 0×500mm/Min Motor Servo Motor Power Single Phase, 220V, 50Hz Dimension 790×590×1010mm Transport Package Strong Case Specification ASTM Trademark Haida Origin Dongguan HS Code 9024 Production Capacity 30 Sets Per Month

Product Description

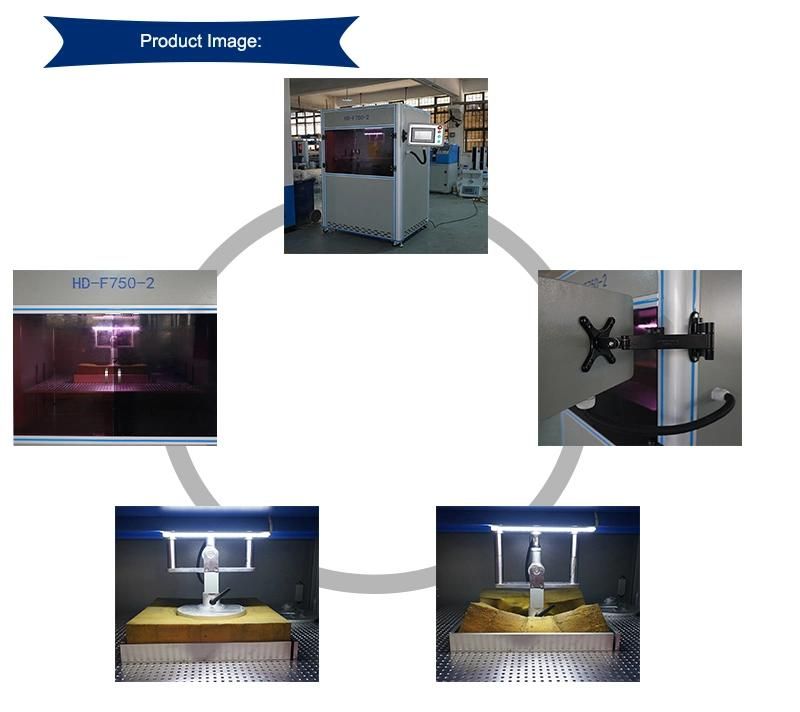

High Quality ASTM Standard Foams Hardness Test Machine
Product Introduction:
Foams Hardness Test Machine is applied to testing material compressed indentation hardness, such as sponge, foam and other porous elastic.
Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.With a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.

Design standard:
ASTM D 3574

Specification:

Control and display	Computer
Sensor	Load cell
Capacity	200KG
Unit	Kg, N, LB
Up plate	Diameter 200mm, bottom fillet R1mm
Low plate	420×420mm, holes diameter 6mm, space 20mm
Max stroke	500mm
Test speed	0~500mm/min
Motor	Servo motor
Driver	Taiwan high precision ball screw
Power	Single phase, 220V, 50Hz
Weight	160KG
Dimension	790×590×1010mm
Accessories	One computer with software

The above parameters are machine standard parameters and can be customized according to your requirements



The introduction of Haida

Founded in 2004, Haida International Equipment Co., Ltd (Haida) is Located in Dongguan city, Guangdong Province, China, who has more than 10 years experience for Test Equipment.
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

FAQ:

1.What about the after-sale service?
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

2.What about the power supply?
We have Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

3.What about the package?
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
