• Model NO.：GW-014F
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-014f
• Sampling：2 PCS
• Bending Angle：25 Deg Adjustable
• Bending Speed：60 Times,Min
• Counter：0-999999 Adjustable
• Dimension：91*82*84 Cm
• Power：220V 50Hz
• Transport Package：Wooden Case
• Specification：910x 820x840mm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-014F Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-014f Sampling 2 PCS Bending Angle 25 Deg Adjustable Bending Speed 60 Times/Min Counter 0-999999 Adjustable Dimension 91*82*84 Cm Power 220V 50Hz Transport Package Wooden Case Specification 910x 820x840mm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

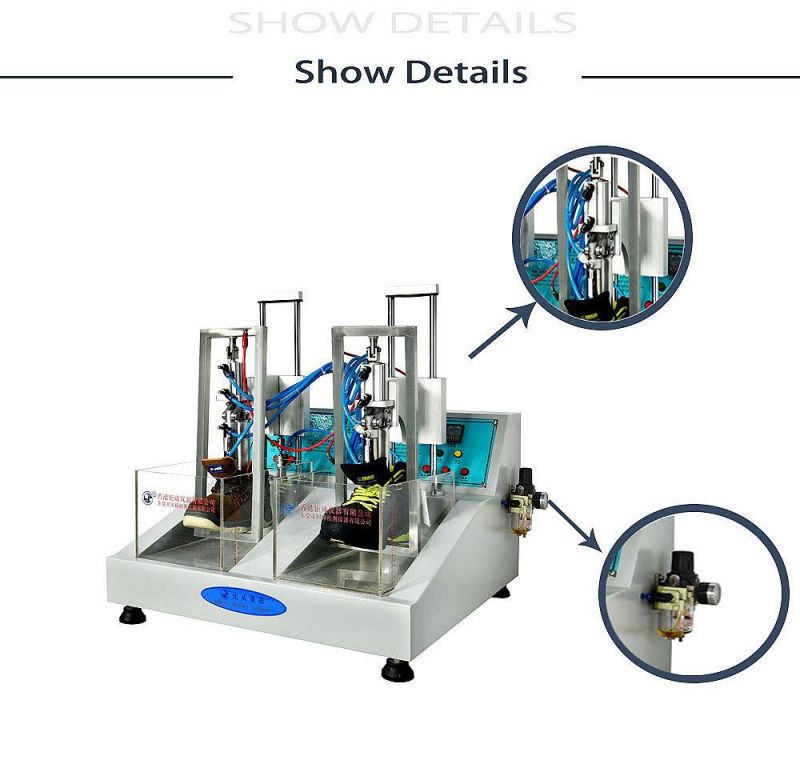

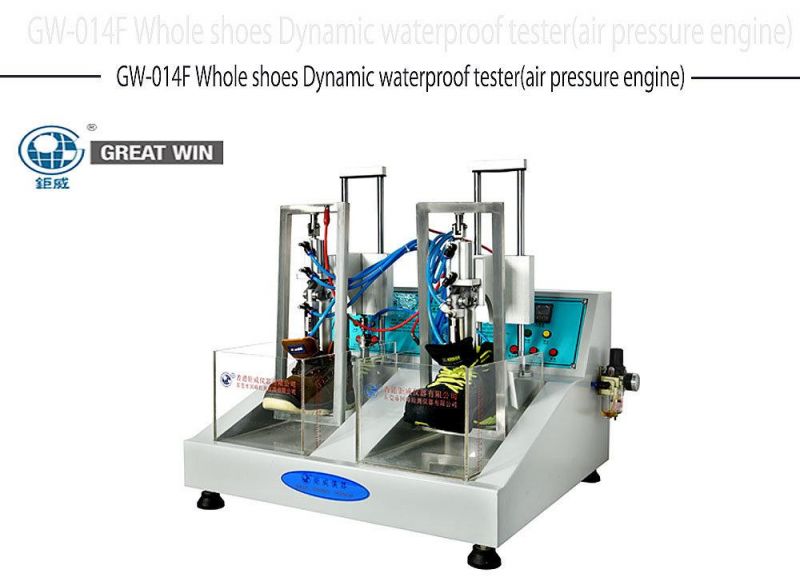

Máquina de prueba dinámica a prueba de agua de zapatos enteros con motor de presión de aire (GW-014F)

•Breve introducción:
Esta máquina se usó para probar la impermeabilidad dinámica del calzado completo. Configure la muestra, ponga un poco de agua en la caja de agua y haga que toque el agua. Luego, el probador hará un motor con un grado estándar de flexión de la media suela. De acuerdo con el tiempo de formación del agua exterior, permee el interior y los tiempos de flexión para juzgar la prueba.

•Especificaciones técnicas:

ModelO	GW-014F Zapatos completos Probador dinámico a prueba de agua (motor de presión de aire)
Muestreo:	2pcs
Ángulo de flexión:	25° adjustable
Velocidad de flexión:	60 times/minc
Aire comprimido 6 bar min.
Mostrador:	0~999999 adjustable
Dimensión:	910×820×840mm
Tamaño del tanque:	400*200*200
N.W.:	59kg
Poder:	AC220V, 50HZ

•Estándar para:
SATRA TM 230

•Accesorios adjuntos:
1 llave hexagonal




What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
