• Model NO.：PHQ-160H
• Control：Computer Control
• Power Source：AC380V
• Oil Cylinder Position：Under
• Certificate：Ce,ISO,SGS,BV.
• Max. Mass of Workpiece：160kg
• Delivery Time：30 Days
• Warranty：1 Year
• Number of Packing：2 PCS
• MOQ：1 Set Rotor Dynamic Balancing Machine
• Color：Blue
• Usage：Auto Testing Machine
• Item：Rotor Dynamic Balancing Machine
• Transport Package：Packed in Standard Export Wooden Case
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031100090
• Production Capacity：1000 Sets,Month

Technical data at a glancePHQ-50PHQ-160HPHQ-300HPHQ-500HMax Mass of Workpiece(kg)50160300500Max Diameter of Workpiece (mm)Φ700Φ1000Φ1220Φ1500Distance Between Two Support Bearings (mm)80~700130~1270130~1270130~1270Journal Diameter Scope of Workpiece (mm)Φ 8~80Φ 15~75³⁾Φ 15~75³⁾Φ 15~75³⁾Diameter Scope of Driving Belt (mm)Φ18~200Φmax400Φmax500Φmax600Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 700,1050¹⁾756,1176¹⁾756,1176¹⁾756,1176¹⁾Motor Power (kw)0.75²⁾1.5²⁾1.5²⁾2.2²⁾Length of Bed (mm) 150015001500Min Achievable Residual Unbalance Amount (emar)≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kgSpecially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

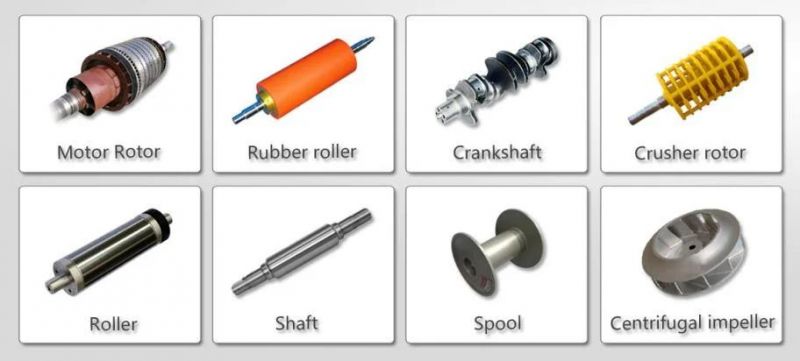

Range of Application

Horizontal Balancing Machine for Electrical Motor (PHQ-500) is also widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency


Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

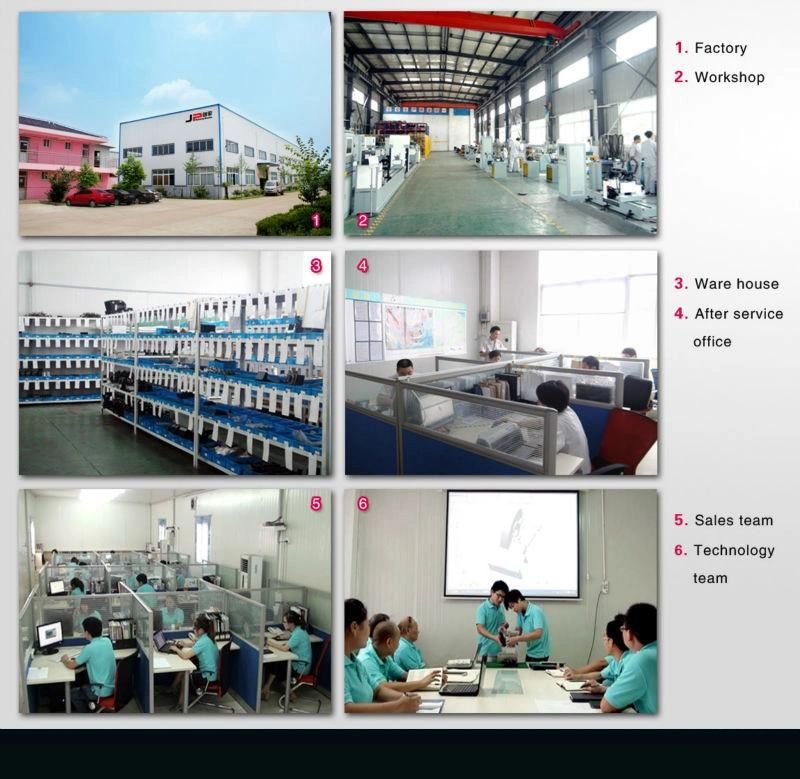

Factory Outlook

 Certificates

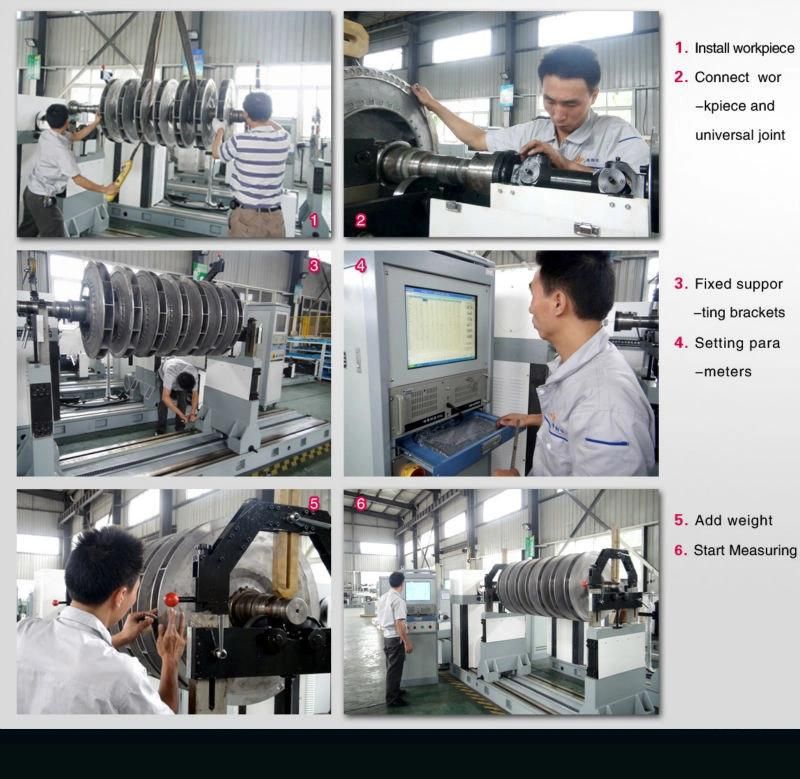

Workshop debugging
