Test Instrument

Home > Product > Test Machine

Secondary Current Injection Test Device Cheap Relay Protection Tester Test Set

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Max Diameter of Workpiece：>3200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Secondary Current Injection Test Set
  • Accuracy Grade：0.5

Base Info

  • Model NO.：GDJB
  • Display：Digital
  • Control：Manual Control
  • Weight：10kg
  • Power Source：AC220V
  • Current Output Setting Range AC：1*0~10A, 1*0~100A
  • Current Output Setting Range DC：1*0~10A
  • Current Output Power AC：1*1000va,W
  • Current Output Power DC：1*80va,W
  • Voltage Output Setting Range AC：1*0~380V
  • Voltage Output Setting Range DC：1*0~350V
  • Voltage Output Power AC：1*400va,W
  • Voltage Output Power DC：1*960va,W
  • Time Measurement：1ms~9999s , 1ms
  • Switch Parameters Ouput：1 Channel
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：1000 Sets , Month

Description

PARAMETERGDJB-IIICurrent outputSetting range AC1*0~10A, 1*0~100ASetting range DC1*0~10APower AC1*1000VA/WPower DC1*80VA/WVoltage outputSetting range AC1*0~380VSetting range DC1*0~350VPower AC1*400VA/WPower DC1*960VA/WSwitch parameters input1 channelSwitch parameters ouput1 channelTime measurement1ms~9999s / 1ms

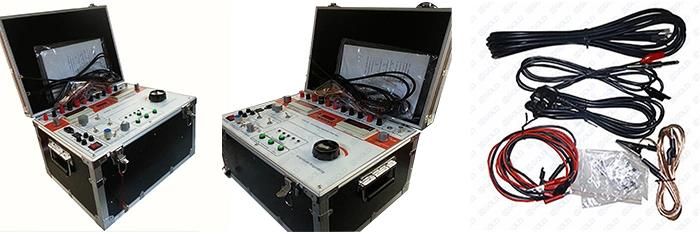

  • PRODUCT SHOW:
Secondary Current Injection Test Device Cheap Relay Protection Tester Test Set
