• Maxcapacity：<1000KN
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：Customzied
• Oil Cylinder Position：None
• Sample Diameter：Φ0.3-Φ10mm
• Sample Length：150-250mm
• Bending Angle：±90° (Planar Bending)
• Bending Speed：≤ 60rpm
• Deformation Display Error：±1% or±0.5%
• Counting Range：99999
• OEM：Support
• Certificate：Ce,ISO
• Transport Package：Plywood Case
• Specification：750*600*1120mm
• Trademark：Hiwoc
• Origin：China
• Production Capacity：50000sets,Year

Basic Info.

Maxcapacity <1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source Customzied Oil Cylinder Position None Sample Diameter Φ0.3-Φ10mm Sample Length 150-250mm Bending Angle ±90° (Planar Bending) Bending Speed ≤ 60rpm Deformation Display Error ±1% or±0.5% Counting Range 99999 OEM Support Certificate Ce/ISO Transport Package Plywood Case Specification 750*600*1120mm Trademark Hiwoc Origin China Production Capacity 50000sets/Year

Product Description

Main purpose and application

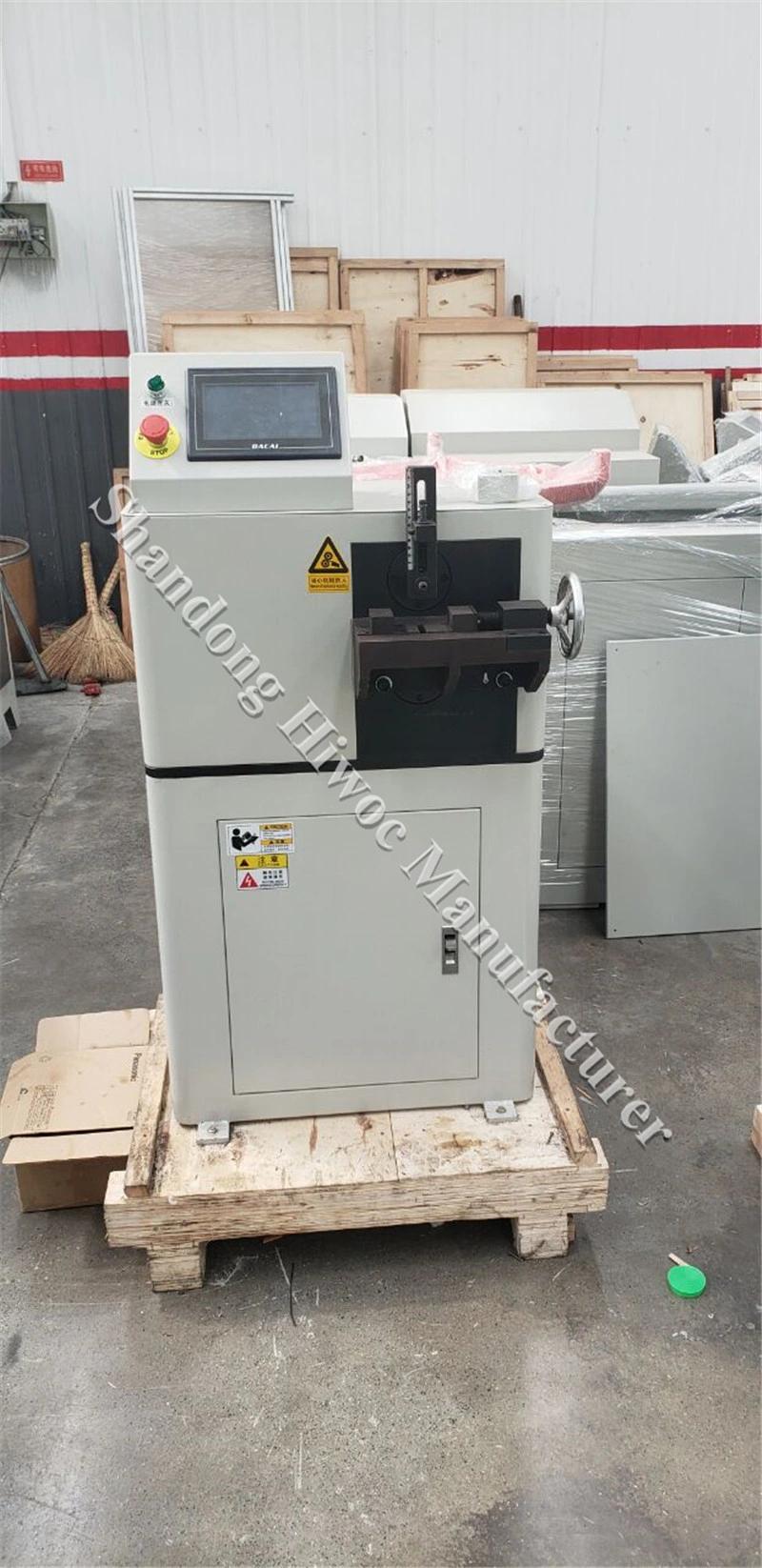

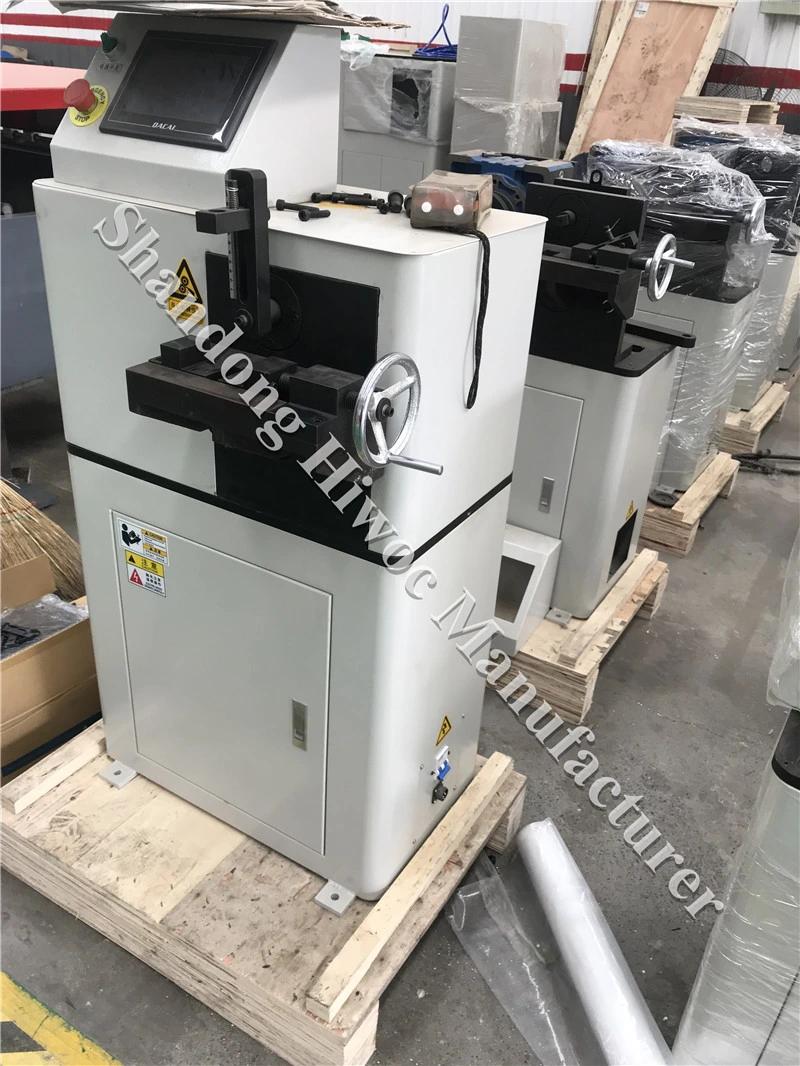

This testing machine is mainly used for the repeated bending test of metal wires to test the performance of plastic deformation and the defects displayed of metal wires in repeated bending.
Test principle: a sample of a certain diameter is clamped into the jaws of two specified sizes through the guide sleeve, and the button is pressed to make the sample bend 90° to the left and right. After the sample breaks, the sample is automatically stopped, and the number of bending is recorded.
This machine is widely used in steel, construction industry, prestressed steel wire, wire rope, and wire cable manufacturers. Applicable to Ф0.3-Ф10 metal wire, equipped with special fixtures, can also be used for other metal bending tests.
Applicable standard
1. GB 238-2013 "Metal material wire rod repeated bending test method"
2. TB/T2809-2005 "Copper and Copper Alloy Contact Wire for Electrified Railways"
3. TB/T3111-2005 "Copper and Copper Alloy Conductors for Electrified Railways"
4. GB/T4909.5-2009 "Test methods for bare wires - Part 5: Bending test - repeated bending"
Main technical parameters
1. Sample diameter: Φ0.3-Φ10mm
2. Sample length: 150-250mm
3. Bending angle: ±90° (planar bending)
4. Counting range: 99999
5. Display mode: LCD display, automatic recording times
6. Bending speed: ≤ 60rpm
7. Motor power: 1.5kw
8. Power: 220V, 50Hz
9. Dimensions: 750*600*1120mm
10. Host weight: about 200 kg
Structural characteristics and working principle

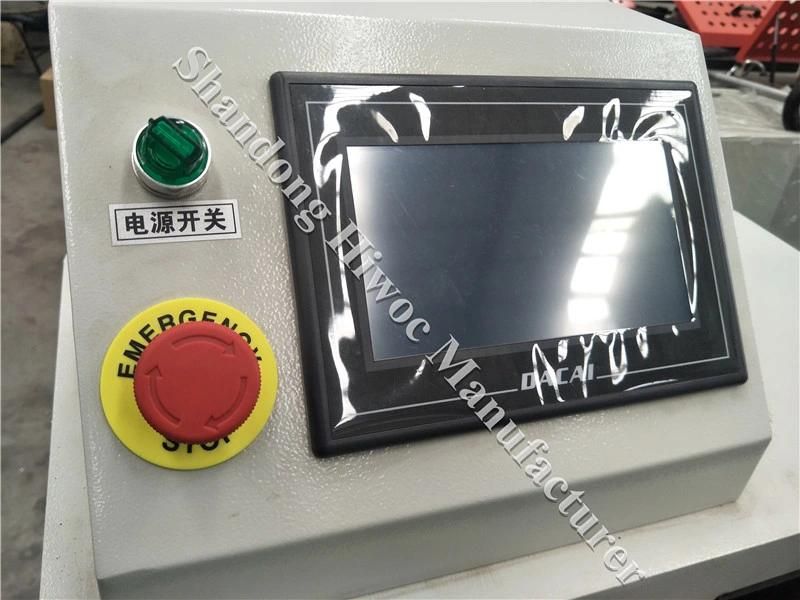

The test machine is mainly composed of two parts: the main machine and the electrical measurement and control system. The mechanical transmission is used to apply the test torque to repeatedly bend the sample, and the photoelectric switch is used to detect the number of bending tests. After the sample breaks, it will stop automatically, the pendulum rod will be reset, the liquid crystal meter will automatically display, and the number of bending tests will be recorded.

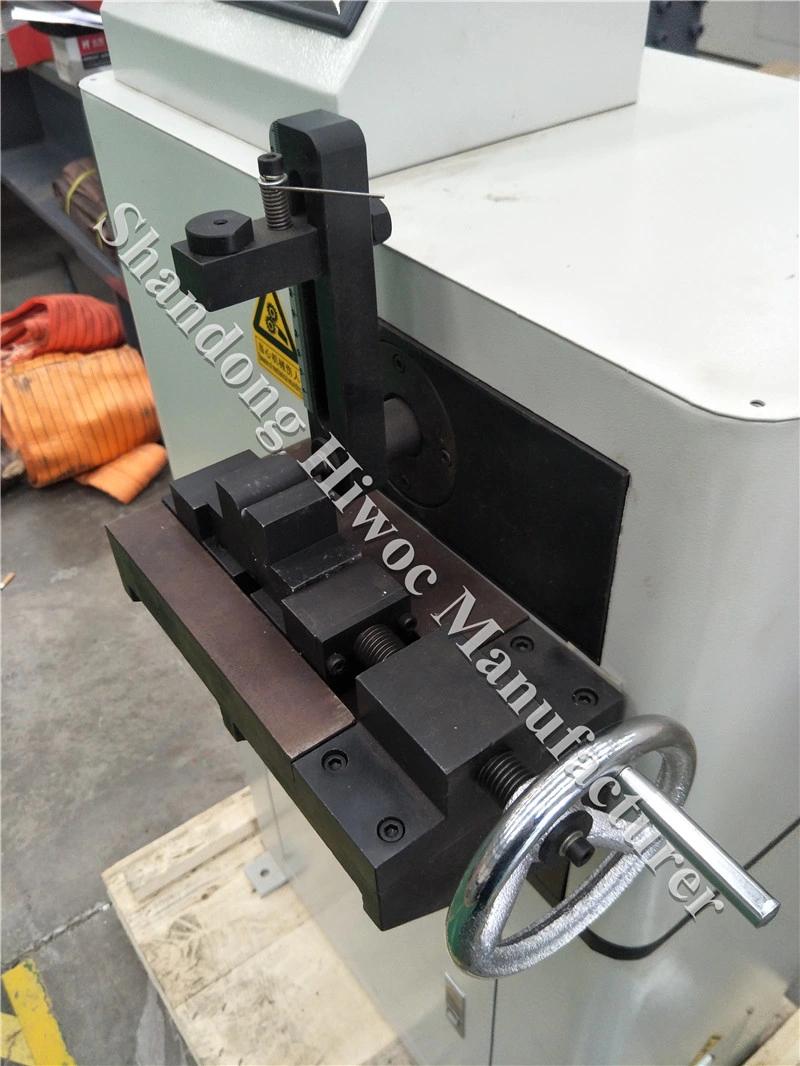

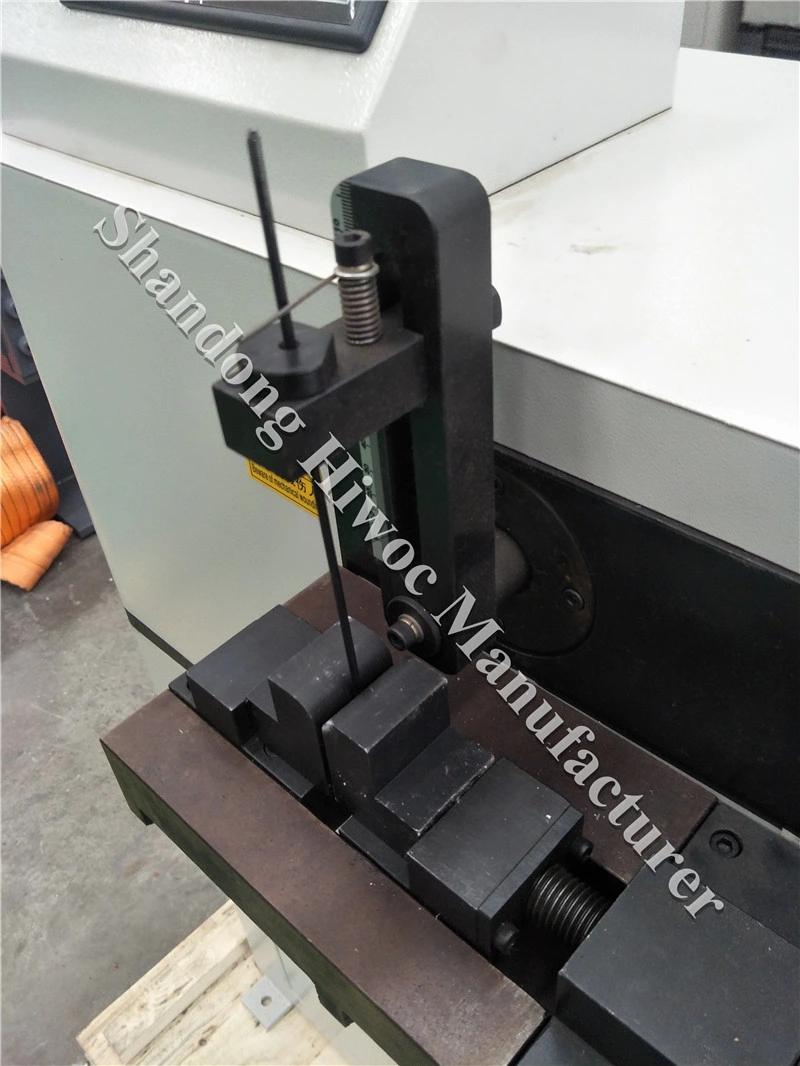

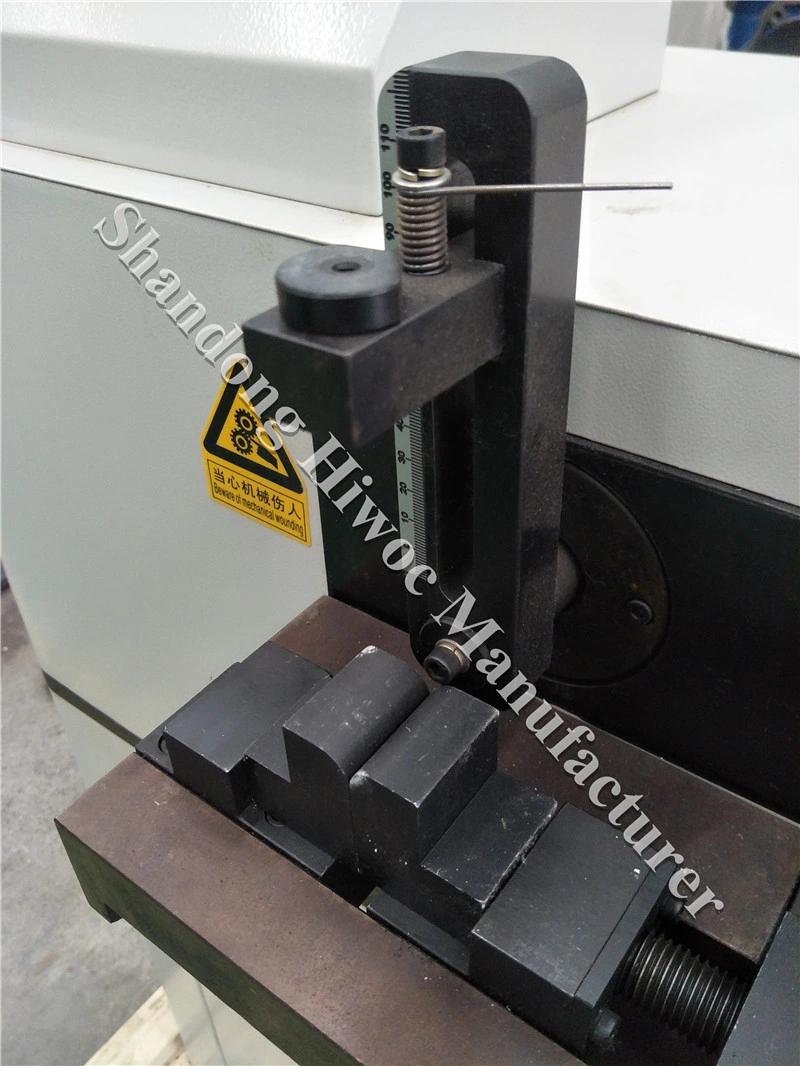

Test procedure: Select the appropriate jaw and guide sleeve according to the diameter of the sample, loosen the nut behind the lever, adjust the height h, and pass the sample from top to bottom through the guide sleeve, jaw and table, turn the hand The wheel clamps the sample, the counter is "cleared", and the test can be started by pressing "Start". The test stops automatically and the number of bends is saved.
Working conditions
1. At room temperature of 10-45 ° C;
2. On a stable basis, horizontal placement;
3. In a vibration-free environment;
4. No corrosive substances around;

Wire nominal diameter or thickness d	Jaw support radius R	DistanceH	Guide hole diameter d
0.3≤d<0.5	1.25±0.05	15	2.0
0.5≤d<0.7	1.75±0.05	15	2.0
0.7≤d<1.0	2.5±0.1	15	2.0
1.0≤d<1.5	3.75±0.1	20	2.0
1.5≤d<2.0	5.0±0.1	20	2.0 and 2.5
2.0≤d<3.0	7.5±0.1	25	2.5 and 3.5
3.0≤d<4.0	10±0.1	35	3.5 and 4.5
4.0≤d<6.0	15±0.1	50	4.5 and 7.0
6.0≤d<8.0	20±0.1	75	7.0 and 9.0
8.0≤d<10.0	25±0.1	100	9.0 and 11.0
