• Model NO.：GD-6536A
• Usage：Determine The Distillation Characteristics
• Temperature Controller：Ambient~400celsius
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Test Parameter：Petroleum Products
• Transport Package：Wooden Case for ASTM D86 Double Column Distillatio
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-6536A Usage Determine The Distillation Characteristics Temperature Controller Ambient~400celsius Delivery Time 10 Working Days(If Urgent, We Can Push) Test Parameter Petroleum Products Transport Package Wooden Case for ASTM D86 Double Column Distillatio Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

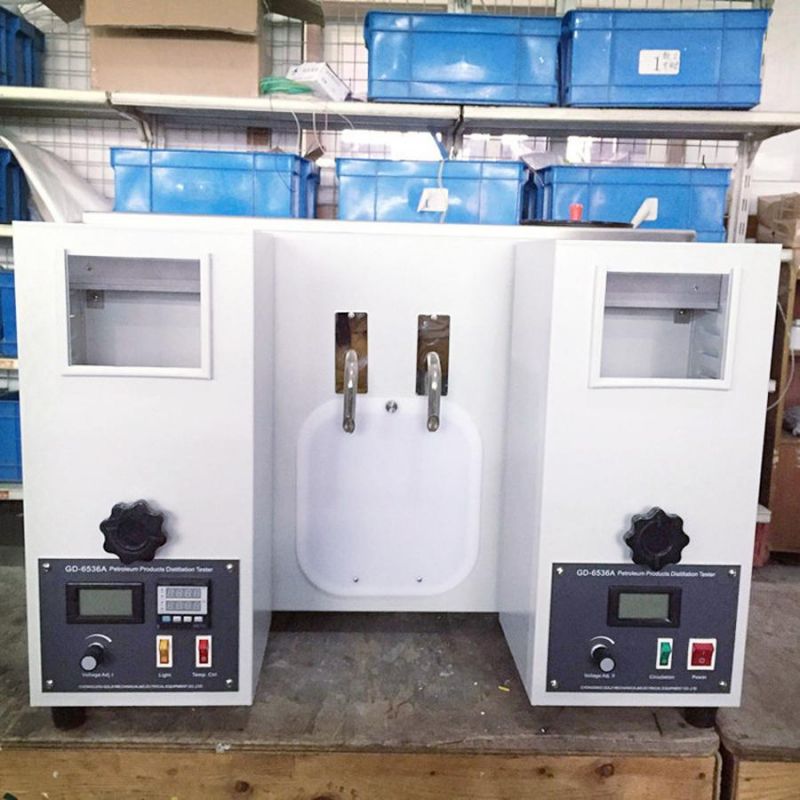

ASTM D86 distillation Apparatus for Petroleum Products


Lab distillation apparatus is designed and made as per ASTM D86. It can performs boiling range analysis of gasoline, aviation gasoline, jet fuels, solvent with special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products at Atmospheric Pressure.
Our company also can provide distillation apparatus at vacuum pressure.




1. Summary:  Lab distillation apparatus is designed and made as per ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure.     It is an ideal distillation tester for petroleum products.


2.Main technical features:
1.Lab distillation apparatus adopts double units working mode, can do test for one sample as well as two samples which having the same specification or different specifications.It highly improves the work efficiency.
2.Lab distillation apparatus adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is uniform,can fully meet the requirements of test.
3.Lab distillation apparatus adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test.

 3.Main technical specifications:

1	Standard	ASTM D86
2	Measurement range	Ambient~400ºC
3	Temperature precision	±0.5ºC
4	Single/Double unit	Double
5	Atmospheric/Vacuum	Atmospheric
6	Power supply	AC(220±10%)V, 50Hz
7	Heating power	1300W×2, continuously adjustable
8	Receiving cylinder	100ml, division value 1ml
9	Distillation flask	125ml,meet the requirements of ASTM D86
10	Dimension	760mm×520mm×500mm



4.Detail Images:




5.Petroleum & Oil Analyzer Petroleum Testing Instruments:


Open Cup Flash Point Tester
Flash & Fire Point Tester for Petroleum Products
Closed Cup Flash Point Tester
Engler Viscometer
Water Content Tester
Rotational Viscometer
Kinematics Viscometer
Distillation Tester
Density Tester
Rust and Corrosion Tester
Sulphur Content Tester
Acid and Alkali Tester
Dropping Point Tester
Demulsibility Characteristics Tester
Ash Content Tester

Low Temperature Tester(Including solidifying point, cold filter plugging point, pour point, cloud point, and freezing point)
Residue Carbon Tester
Existent Gum Tester
Vapor Pressure Tester
Bomb Calorimeter
OCTANE & CETANE ANALYZER
Lubricating Oils Foaming Characteristics Tester
Petroleum Products Color Tester
Petroleum Wax Oil Content Tester
Automatic Interfacial Tension Tester
Liquid Petroleum Products Hydrocarbon Tester
Lubricating Oil Air Release Value Tester
Petroleum Products and additives Mechanical impurities tester

6.About us:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
