Stmj-1d Automatic Marshall Compactor
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:350kg
- Type:Automatic Marshall Compactor
- Maxcapacity:No
- Accuracy Grade:1
- Load Way:No
Base Info
- Model NO.:STMJ-1D
- Loading Method:No
- Display:Digital
- Control:Digital Display
- Weight:350kg
- Power Source:AC220V
- Oil Cylinder Position:No
- Transport Package:Wooden Case
- Specification:0.87CBM
- Trademark:SHTG
- Origin:China
- HS Code:9031809090
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. STMJ-1D Loading Method No Display Digital Control Digital Display Weight 350kg Power Source AC220V Oil Cylinder Position No Transport Package Wooden Case Specification 0.87CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

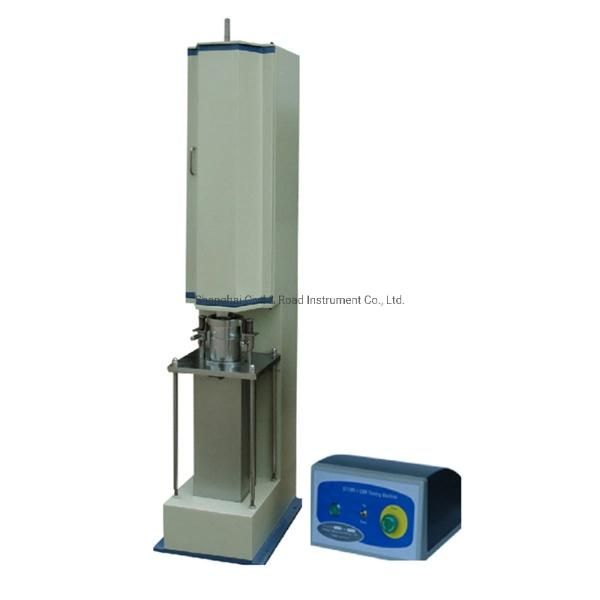

STMJ-1D Automatic Marshall CompactorApplication: The Marshall compactor is applied for compaction of Marshall specimen, which will result in consistent and repeatable laboratory specimens, and releasing staff for other work during the compaction process.
Technical parameters:
Hammer weight | 10.21kg(STMJ-1D) |
Height of fall | 457.2mm |
Compaction frequency | 60hit/min |
Diameter of the compaction head | 149.5mm(STMJ-1D) |
Specimen size | 152.4mm(dia)×115mm(STMJ-1D) |
Direct reading counter | 0-9999 times |
Laminated hardwood block compaction foundation | 457x200x200mm |
Voltage | AC220V |
Power | 370W |
Dmension | Main: 540mm*540mm*1740mm Control cabinet: 400mm*330mm*700mm |
Net weight | about 180kg |

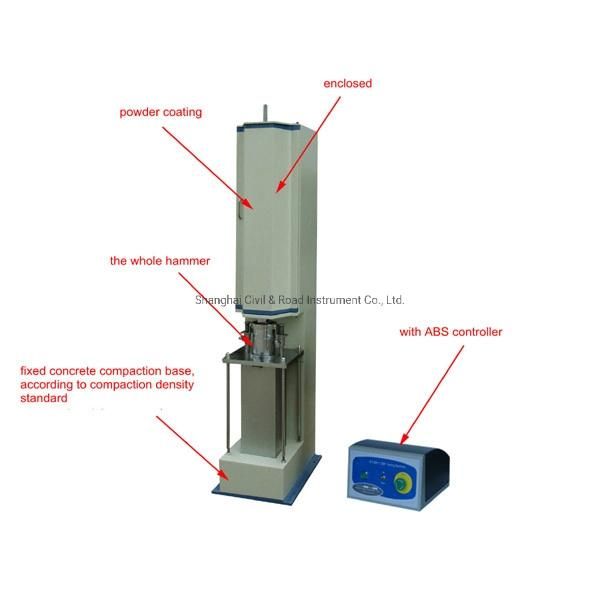

Features: whole hammerhead, control cabinet made of ABS plastic; consistent and even compaction
