• Model NO.：GD-ISO11925
• Transport Package：Plywood Case
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD-ISO11925 Transport Package Plywood Case Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

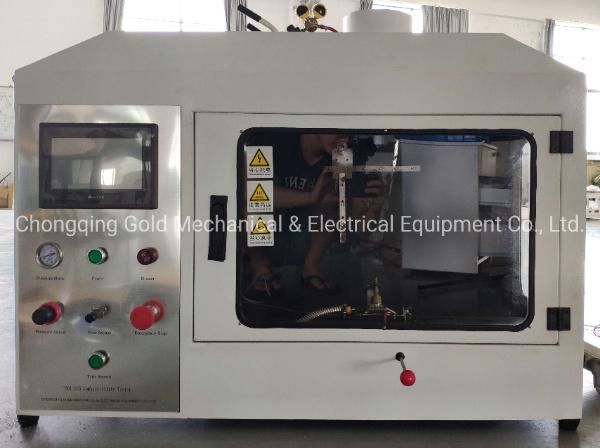

ISO 11925 Single Flame Source Test / Ignitability Test Apparatus



Introduction:

Single-Flame Source Tester is designed and made according to ISO11925-2, it is used to test building material under the condition in the absence of external radiation to direct impact of vertically placed samples with a small flame to determine the flammability of this building material products.



Application:

Building Materials

Rail

IMO



Standards:

EN ISO 11925-2

Reaction to fire tests -- Ignitability of products subjected to direct impingement of flame -- Part 2: Single-flame source test

DIN 53438

Testing of combustible materials

DIN4102-1

Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing



Main Feature:

1. Box paint treatment, beautiful. Features:

2. The combustion chamber dimensions: length 700mm *width 400mm * high 600mm.

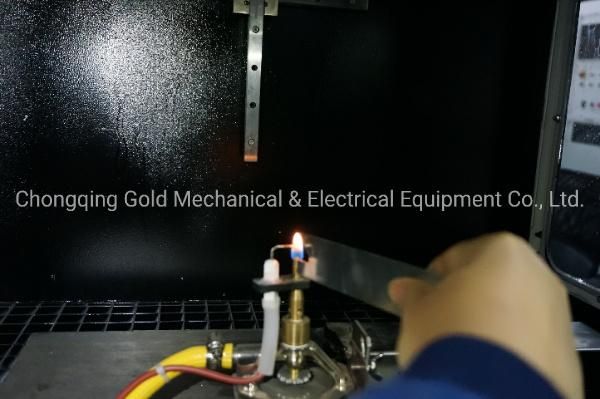

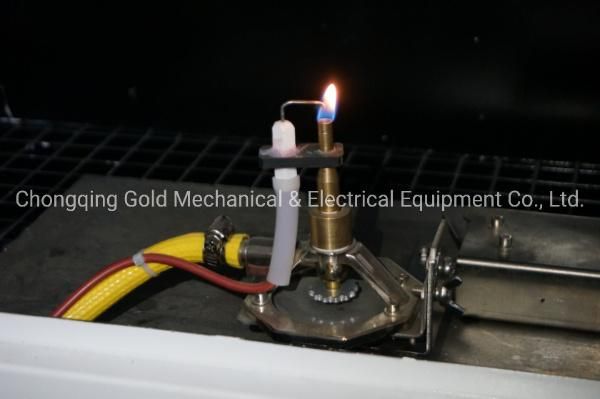

3. The flame height can be adjusted, automatic ignition.

4. The flame burning application time and hold time can range from 0 to 99 minutes 99 seconds regulation.

5. Combustion angle: 0 ° (vertical), 45 °.

6. The burner can be moved in a horizontal direction.

7. Glass doors for easy observation test.

8. All fixtures are made of stainless steel; beautiful and anti-corrosion.

9. Equipped with two types of the stainless steel sample holder. With flame height measuring.

10. The high degree of test automation, test data accurate, easy to operate.



 Control System:

1.Programmable Logic Controller (PLC) Control.

2.Automatic timing, automatic detection of the flame, automatic ignition, ignition abnormal protection.

3.LCD touch screen display.

4. Real-time monitoring of experimental data, queries six samples of experimental data, query alarm content.



Specification:

Product name	Single Flame Source Test / Ignitability Test Apparatus
Standard	EN ISO 11925-2, DIN 53438, DIN4102-1
Dimension	400mm(W)*700mm(D)*600(H)
Power	AC 220V, 50/60Hz, 10A
Weight	about 50kg

Product details:
