Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：900mm
  • Mass Scope of Workpiece：<900kg
  • Type：Material Testing Machine
  • Maxcapacity：Sampling:12 PCS
  • Accuracy Grade：1
  • Load Way：Mechanical Load

Base Info

  • Model NO.：GW-001
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-001
  • Bending Angle：22.5 Deg
  • Test Speed：100+,-3 Cpm
  • Flexing Grips：12 Sets
  • Power：AC 220V, 50Hz
  • Counter：LCD, 0-999999
  • Dimension：790*420*350mm
  • Attached Accessories：1 Ocs Die Cut 70*45cm
  • Transport Package：Standard Export Safety Packing
  • Specification：83*40*33cm
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Basic Info.

Model NO. GW-001 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-001 Bending Angle 22.5 Deg Test Speed 100+/-3 Cpm Flexing Grips 12 Sets Power AC 220V, 50Hz Counter LCD, 0-999999 Dimension 790*420*350mm Attached Accessories 1 Ocs Die Cut 70*45cm Transport Package Standard Export Safety Packing Specification 83*40*33cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

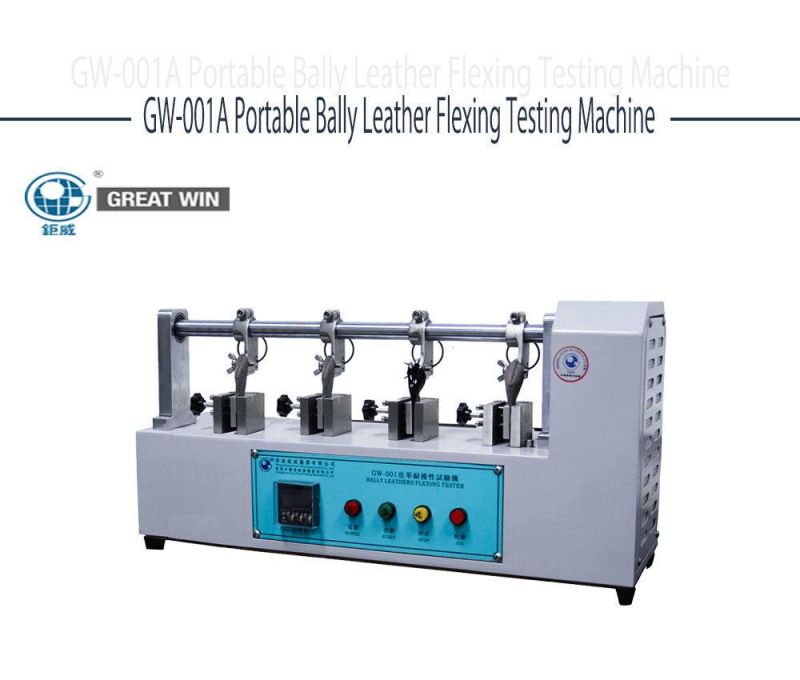

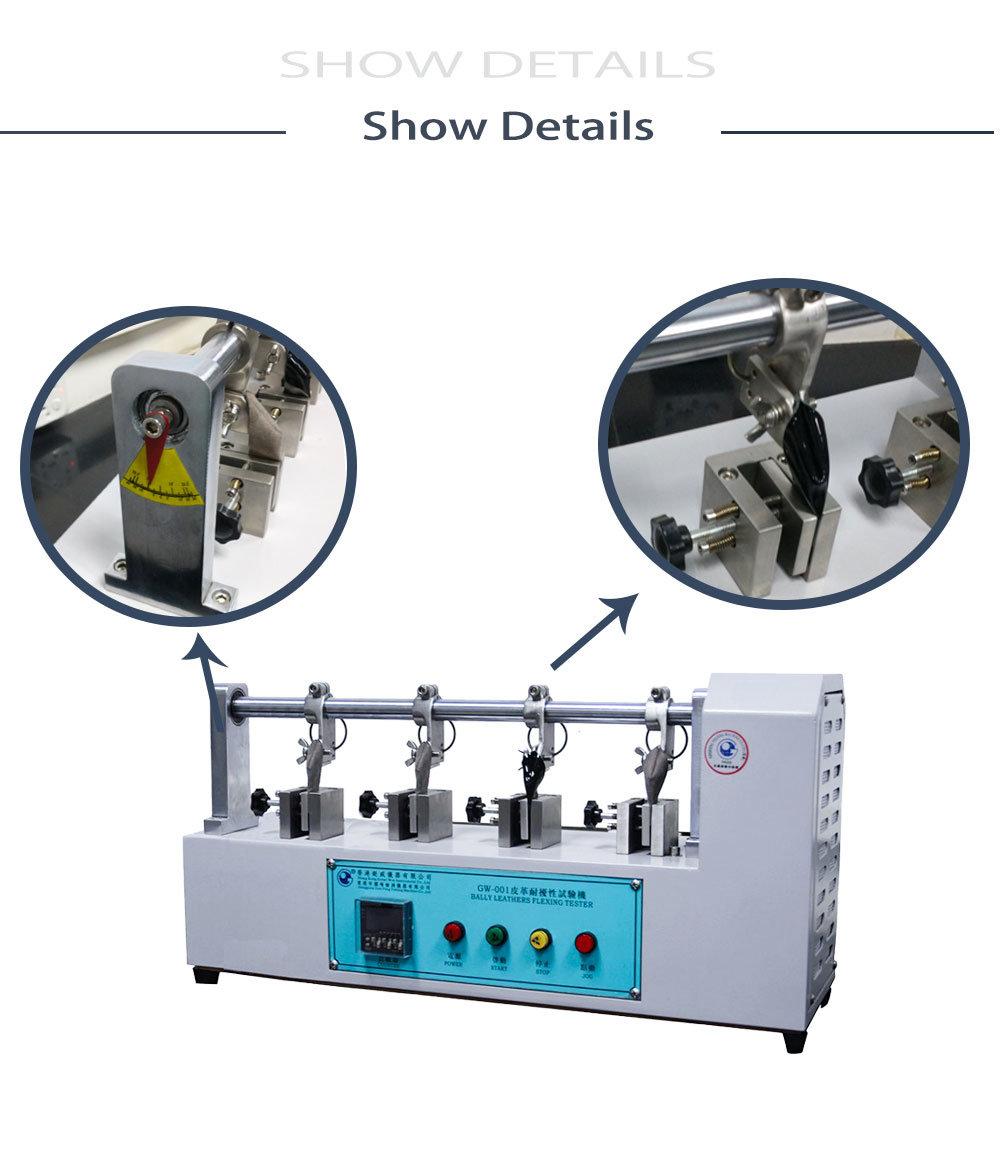

Leather Standars Flexing Durability Testing Machine (GW-001)

•Brief introduction:
Place the specimen in position and bend it repeatedly until it breaks. Record the bending times. This device is suitable to test thin leather products for vamp, dress cloth and bags.

•Technical Specifications:

ModelGW-001 Bally leather flexing testing machine
Bending degree:22.5°
Speed:100±3cpm
Flexing grips: 12 sets
Power:AC220V
Counter:LCD(0~99999999)
Dimension: 790*420*350mm
Weight: 78KGS
Attached accessories:1PCS Did cut 70*45cm



•Standard for:
BS-3144, JIS-K6545, GB/T20991-2007, SATRA TM55


•Attached accessories:
1PCS Did cut 70*45cm

Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)
Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)
Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)Great Win High Quality Digital Leather Flexing Durability Testing Machine (GW-001)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
