Test Instrument

6545-3 15A Lithium Polymer Battery Pouch Cell Tester Testing Clamp Clip

XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.
  • After-sales Service:Life Time Support
  • Warranty:1 Year
  • Type:Battery Test Clamp
  • Application:Lithium-ion Battery
  • Transport Package:Standard Packing
  • Trademark:TOB

Base Info

  • Model NO.:TOB-6545-3
  • Origin:China

Description

Basic Info.

Model NO. TOB-6545-3 Origin China

Product Description

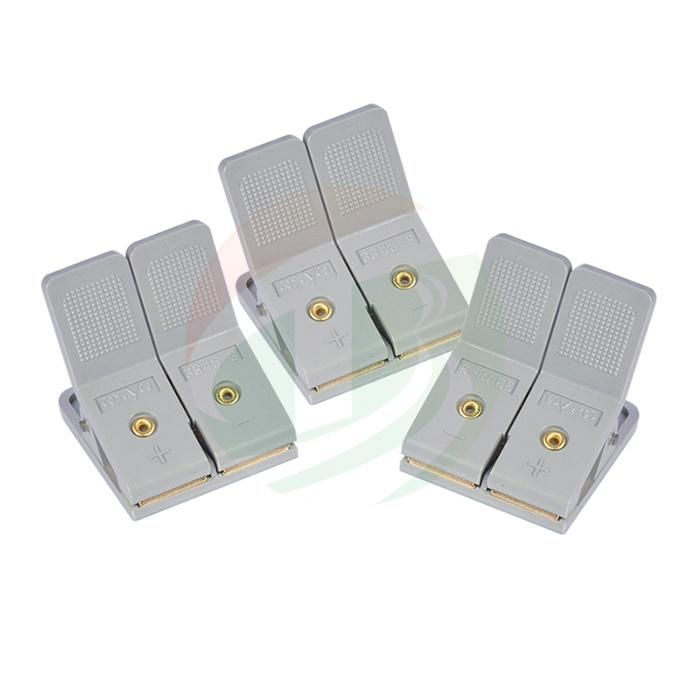

6545-3 15A Lithium Polymer Battery Pouch Cell Tester Testing Clamp Clip

6545-3 15A Lithium Polymer Battery Pouch Cell Tester Testing Clamp Clip
Model6545-3
Working temperature range-55°C~155°C
Current and Voltage≤15A, ≤500V
Base materialPolysulfone, brass, stainless steel
PlatingNi (3~5um)
Contact resistance≤2mΩ
Insulation resistance500VDC≥1X10^9Ω
Humidity≤90%
Clamping force10N
Working life≥30000 times
Unit & Tolerancemm, ±0.05mm
  6545-3 15A Lithium Polymer Battery Pouch Cell Tester Testing Clamp Clip
6545-3 15A Lithium Polymer Battery Pouch Cell Tester Testing Clamp Clip

 Reference picture
