• Model NO.：HD-R811-1
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Temperature Display Range：0~200 ºC
• Temperature Measurement Range：Room Temperature-200 ºC
• Temperature Measurement Accuracy：100~200 ºC,≤ ± 0.3 ºC
• Dimensions：540 mm*560 mm*1120mm
• Equipment Weight：Approx. 250kg
• Purpose：Used for Rubber Quality Control
• Transport Package：Strong Plywood Case
• Specification：GB, ISO standard
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-R811-1 Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Temperature Display Range 0~200 ºC Temperature Measurement Range Room Temperature-200 ºC Temperature Measurement Accuracy 100~200 ºC,≤ ± 0.3 ºC Dimensions 540 mm*560 mm*1120mm Equipment Weight Approx. 250kg Purpose Used for Rubber Quality Control Transport Package Strong Plywood Case Specification GB, ISO standard Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

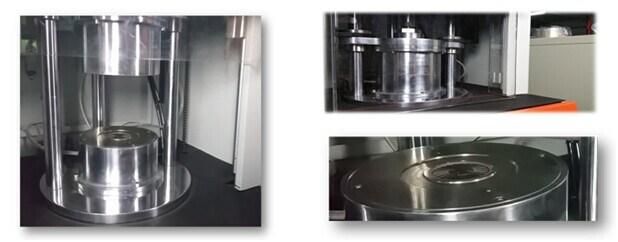

Computer Control Plastic Rubber Rotorless Rheometer Price

Equipment Introduction:
Vulcanization is a crosslinking process that changes the rubber macromolecular chain from linear to network, and it is also one of the most important processes in the manufacturing process of rubber products. The vulcanizer can continuously and intuitively describe the curves of viscosity, elasticity, hysteresis loss and vulcanization rate in the whole vulcanization process, so as to obtain some main parameters in the vulcanization process. For example, torque, induction time (scorch time), curing speed and appropriate curing time have the advantages of continuous, fast, accurate and convenient.

Rubber rheometer is the most widely used instrument in the rubber processing industry to control the quality of the rubber, rapid inspection and basic research on rubber. It provides accurate data for the optimal formula combination of rubber, and can accurately measure the scorch time, positive vulcanization time, vulcanization Index and parameters such as maximum and minimum torque.

Equipment Characteristic:
1. High temperature control precision and wide range. (± 0.3 ºC)
2. Clock programming function. (Setting and modification time)
3. Advanced technology switching power supply, wide voltage range.
4. Imported integrated circuits and control components.
5. All Chinese and English display.
6. Comply with the requirements of GB / T16584 (Testing the vulcanization characteristics of rubber with a rotorless vulcanizer) and ISO6502.

This type of vulcanization instrument is more stable, more accurate, cheaper, and more functional than other models. It is the best instrument for testing rubber properties.

Technical Parameters:

Item	Parameter
Purpose	Used for rubber quality control Provide accurate data for rubber optimized formulation combination, such as combustion time, positive vulcanization time, sulfide index and maximum and minimum torque.
Equipment alias	Sulphurometer,rotorless sulphur transformer, rotorless vulcanization test instrument
Executive standard	ASTMD5289-95 ISO6502-1999 (E) GB / T16584-1996
Temperature measurement range	Room temperature-200 ºC
Temperature measurement accuracy	100~200 ºC,≤ ± 0.3 ºC
Temperature stability	100~200 ºC,≤ ± 0.3 ºC
Setting range	0~200 ºC; setting minimum unit:0.1 ºC
Temperature display range	0~200 ºC; display resolution:0.1 ºC
Setting time range	0~200 minutes; setting minimum unit:1 minute
Automatic range switching	automatically increase according to actual torque
Power supply	50HZ, ~220V ± 10%, 50 ± 1Hz, must be well grounded
Compressed air	0.4Mpa (4KG) controlled by pneumatic regulating valve
Swing frequency	100 times / minute (about 1.7HZ)
Ambient temperature	normal temperature -40 ºC, relative humidity less than 80%, no corrosive gas in the air
Weight	Approx.  250kg
Power	600W
Dimensions	540 mm* 560 mm* 1120mm

Company Introduction:
Haida International Instrument Co., Ltd. are widely used in many industries such as paper products, packaging, ink printing, adhesive tape, luggage, shoemaking, leather, environment, toys, baby products, hardware electronics, plastics and rubber, etc., and are suitable for scientific research units, quality Inspection institutions, academic discussions and other fields; the company's products comply with domestic and international standards such as UL, ASTM, JIS, GB, ISO, TAPPI, EN, DIN, BS ... Main products: carton compression tester, rupture machine, rupture strength tester, ring pressure tester, ring press, edge pressure tester, vibration tester, shaker, simulated transportation shaker, tensile machine, tensile test machine , Electronic tension machine, constant temperature and humidity test chamber, constant temperature and humidity test machine, drop test machine, universal material test machine, aging test chamber, cold and hot impact test machine, cold and hot impact test chamber, tape retention test machine, peel strength test machine .


After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
