• Model NO.：KMH-1000L
• Temp. Range：-40oc~+150oc or -104of~+302of
• Humidity Range：20-98%R.H.
• Temp. Constancy：+,-0.5oc
• Humidity Constancy：+,-2.5%R.H.
• Humidity Uniformity：+,-3.0%R.H.
• Heat up Time：-40 Oc~+100 Oc Within 45mins
• Pull Down Time：+20 Oc~-40 Oc Within 60mins
• Interior Dimension：W1000*H1000*D1000mm
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

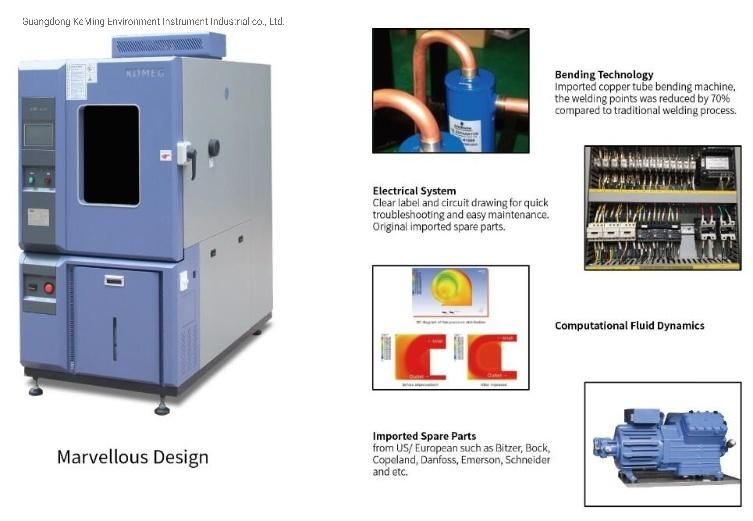

Environmental Temperature and Humidity Testing ChamberSecifications ( at +20°C  room temp.  Or+25°C  water temp with empty load)ModelKMH-L series150L225L408L800L1000LInterior sizelW(mm)60070070010001000H(mm)60070075010001000D(mm)4604808008001000Exterior sizeW(mm)88098098012801280H(mm)17301890194021602160D(mm)14001460174017501950Weight(KG)250300420530600Temp. range -40 °C  ~ +150°C Humidity Range20 ~ 98&R.H.Temp. constancy±0.5ºC   Humidity constancy±2.5%R.HHumidity uniformity±3.0 % R.H±5.0 % R.HHeat up time -40°C ~+100°C , within 45 minPull down time +20°C  ~ -40°C  , within 60 minEquipment Power7.57.58.514.514.5Ambient Temp.5ºC  ~+35ºC  Standard accessoriesSight window*1,  cable port(portΦ50mm)*1,   shelves*2,    chamber lamp*1,    power cable *2mSafety device  (standard)No fuse breaker, over pressure  over heat and over current protection for compressor,
Over temp. protect, over load protect of blower, dry heat protectionControl SystemBalanced Temperature & Humidity Control SystemRefrigeration systemAir Cooled  ( Water Cooled Type is option )Hermetic compressor,Single stage refrigeration system,                          CFC-Free refrigerant(HFC-507/HFC-23)ControllerPanel:7-inch LCD Touch panel,    Chinese or English display selectableOperation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesInterior materialStainless Steel Plate ( SUS 304 )Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane Foam and Glass Fiber WoolSystemBalanced & Humidity Control SystemWiring methodAC 380±10 %  50Hz ,3 phase 4 wires +Ground WiresNote:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
How to maintain the environmental test chamber ? When you are in an environmental chamber testing laboratory, You may need the environmental chamber insulation or environmental chamber testing services. The below are some guidance which may helpful for you when you are processing the environmental chambers repair work. Try to find local environmental test chamber manufacturers and inquiry their benchtop and walk in environmental chamber price is a good idea !

1. The refrigerating system (France Tecumseh Compressor), condenser parts shall be maintained regularly and kept clean. Dust sticking the condenser will make the environmental chamber compressor high pressure switch jump off and produce false alarm, the condenser should be regularly maintained every month. Use a vacuum cleaner to remove the dust on the condenser heat release screen or use a hard brush or a high-pressure air nozzle to blow the dust clean after starting the environmental chamber.

2. The overtemperature protection device of distribution box set data, Please don't revise without environmental chambers manufacturers permission. This protection switch is used to protect heating tube and humidifying tube from air burn-out and water shortage alarm. Set Point = Temperature Set Point (+20ºC~+30ºC)

3. When environmental chamber is working, temperature in the test room rises to the set point of the over-temperature protector, the power supply of the heater will be stopped and the over-temperature warning light will be on, but the fan will still be running. If the over-temperature protector is running for a long time and unattended, Before operation the environmental chambers next time, Please make sure to check the overtemperature protector, whether it is set properly.
