Bld-01 Auto Stripping Tester for Adhesive Tape Pressure Sensitive Tape Laminated Film
Pubtester Instruments Co., Ltd.- Warranty：12 Months
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Load Cell Capacity：30n,50n,100n,200n,500n
Base Info
- Model NO.：BLD-01
- Testing Accuracy：0.5% Fs
- Speed of Crossbeam：0.05~500 mm,Min
- Maximum Stroke：500mm
- Trademark：Pubtester
- Origin：China
Description
Extended ApplicationTensile Strength and Deformation Rate 180 Degree Peel Test Tear Resistance Shearing Performance Heat Seal Performance Adhesive Strength Test (soft) Tensile Strength at Break 90 Degree Peel Test Low Speed Unwrapping Force Release Paper Peel Test Opening Force of Bottle Caps Adhesive Strength Test (hard)
Note: *Additional accessories or customized sample grips may need to be purchased separately to complete the tests that cannot be completed with standard sample grips.
** Customized grips are needed for extended applications
GB/T 4850-2002, GB 8808, GB/T 1040.3-2006, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358
Optional configuration: Load Cell, Test Plate, Sample Cutter, Customized Sample Grips, Standard Pressure Roller, Professional Software, Communication Cable, calibration weight
About Us

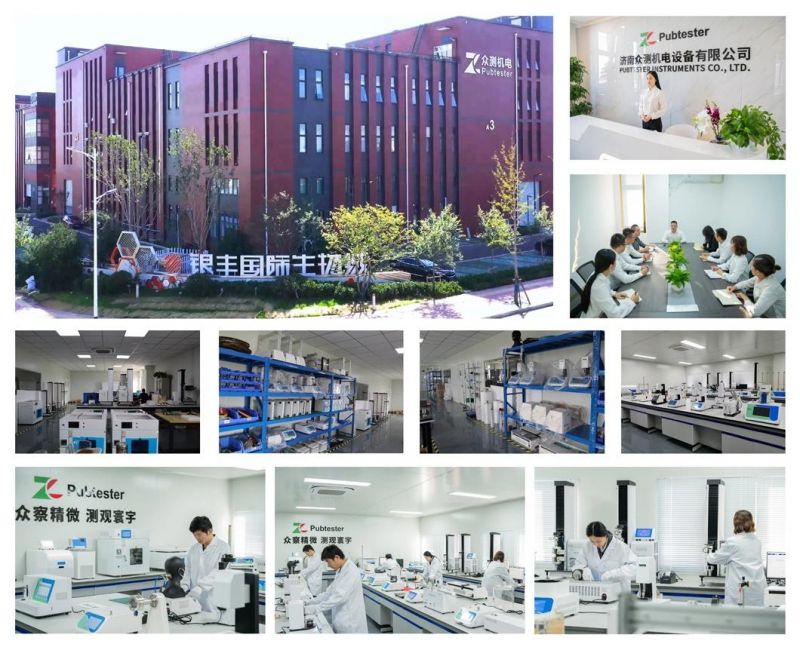

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.
Note: *Additional accessories or customized sample grips may need to be purchased separately to complete the tests that cannot be completed with standard sample grips.
** Customized grips are needed for extended applications
Technical Specifications
| Specifications | BLD-01 |
| Load Cell Capacity | 30N/50N/100N/200N/500N |
| Testing Accuracy | 0.5% FS |
| Drive System | Imported Panasonic servo drive system |
| Speed of Crossbeam | 0.05~500 mm/min (Stepless speed control) |
| Accuracy of Speed | ±1% |
| Maximum Stroke | 500mm |
| Number of Specimens | 1 |
| Specimen Width | 30mm (standard), 50mm (optional) |
| Clamping Way | Manual |
| Power Supply | AC 220V 50Hz/120V 60Hz |
| Instrument Dimension | 800mm(L)×320mm(W)×300mm(H) |
| Net Weight | 50kg |
Standards
GB/T 4850-2002, GB 8808, GB/T 1040.3-2006, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358
Configuration
Standard configuration: Instrument, Touch Screen, Grips, Micro-printerOptional configuration: Load Cell, Test Plate, Sample Cutter, Customized Sample Grips, Standard Pressure Roller, Professional Software, Communication Cable, calibration weight
