Fall Ball Impact Testing Machine

Dongguan Hong Tu Instrument Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Material Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：HTPV-05
  • Loading Method：Dynamic Load
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Transport Package：Wooden Box
  • HS Code：9031809090

Description

Basic Info.

Model NO. HTPV-05 Loading Method Dynamic Load Control Manual Control Weight 0-100Kg Power Source AC220V Transport Package Wooden Box HS Code 9031809090

Product Description

Model:HTPV-05
Name:Fall Ball Impact testing machine
Standard:According to UL1703-2004 , GB/T 15763.2-2005 standard requirement
Purpose:
to provide mass of steel ball adjust certain height , make it free fall , impact the sample and to view its damage level , use to determine the quality of  module ,toughened glass and junction box quality
Technical specifications:
  1. The mass of fall ball
1.1Module resistance impact:535g(UL1703-2004),
1.2Toughened glass resistance impact:1040g(GB/T 15763.2-2005),
1.3 Junction box resistance impact260g (UL1703-2004),
2,Drop height:1.295m (Max)
3,Drop control ways: DC electromagnetic control

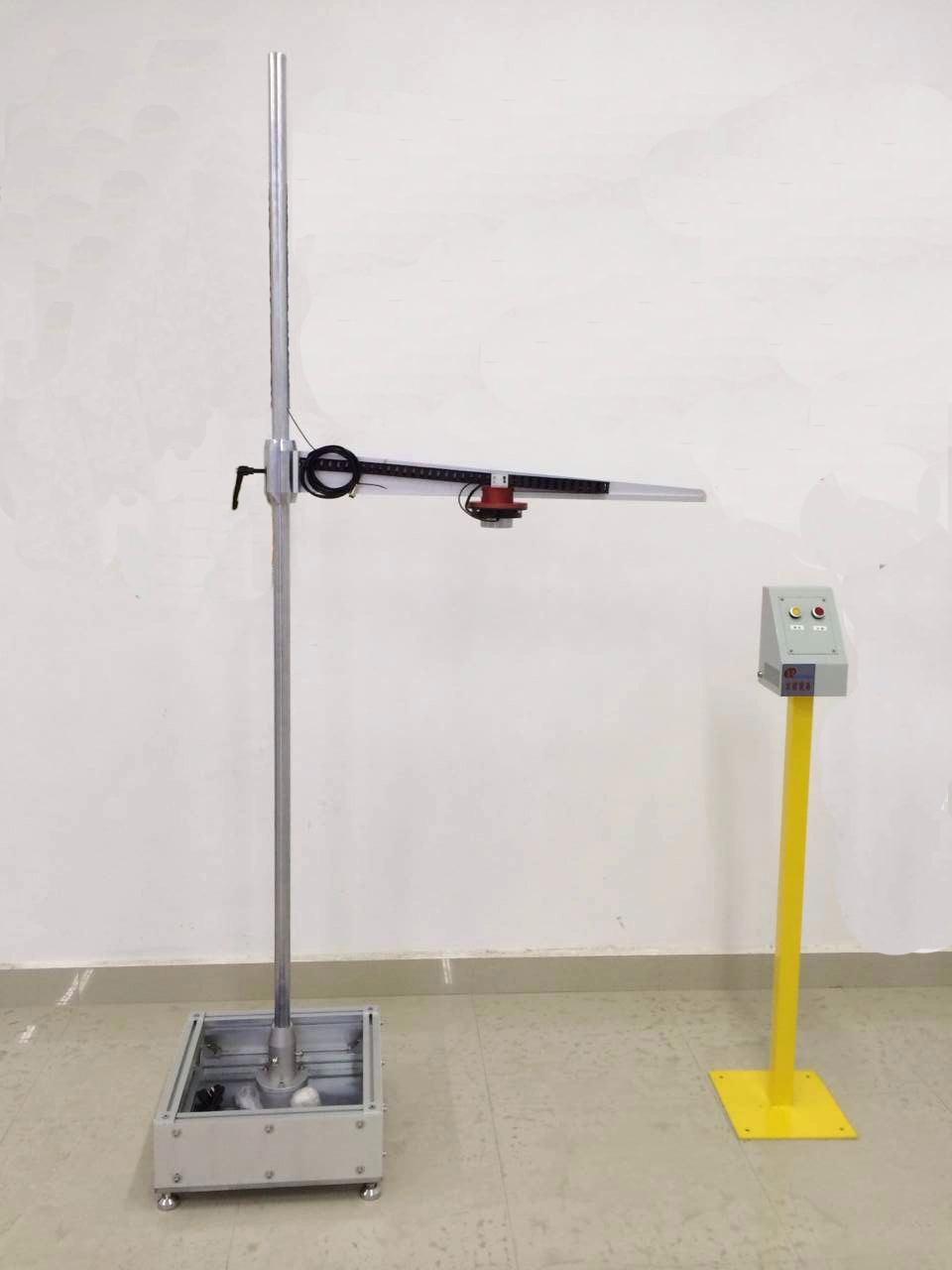

Fall Ball Impact Testing Machine
