• Model NO.：PHW-2000
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Top
• Length：3550 Mm
• Width：1050 Mm
• Height：1650 Mm
• Gross Weight：2200 Kg
• Transport Package：Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PHW-2000 Control Computer Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Top Length 3550 Mm Width 1050 Mm Height 1650 Mm Gross Weight 2200 Kg Transport Package Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 100 Sets/Month

Product Description

Multi-stage centrifugal impeller balancing machine(PHW-2000)

Production Description

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface

Range of Application Multi-Stage Centrifugal Impeller Balancing Machine (PHW-2000) is also mainly used in checking the balance of rotatable bodies such as medium-sized and large-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by universal joints, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
 Special Features
 The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

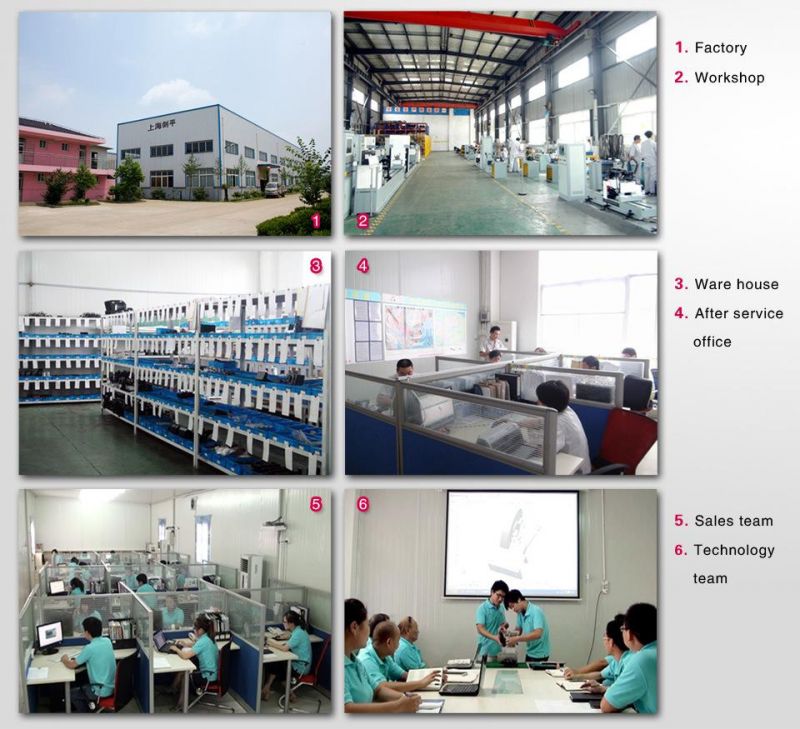

Factory Outlook


Certificates


Production Parameters



Technical data at a glance	PHW-2000
Mass Scope of Workpiece (kg)	2000
Max Diameter of Workpiece (mm)	1800
Distance Between Two Support Bearings (mm)	Min:100
Journal Diameter Scope of Workpiece (mm)	40~240
Max Distance between Driving Flange and Right Bearing Support (mm)	1800
Rotation Speed of the Main Axis (r/min)	560,1490 1)
Motor Power (kw)	7.5 2)
Torque of Universal Joint Shaft (N.m)	300
Min Achievable Residual Unbalance Amount (emar)	≤ 1g. mm/kg
