• Model NO.：GD-476-6
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Item Name：BS476-6 Fire Spread Index Tester
• Application：Determine The Fire Propagation Index
• Reference Standard：BS 476 Part 6
• Features：Computer Automatically Processes The Data, and Pri
• Material of Cabient：Stainless Steel
• Fire Propagation Index Tester Price：Negotiable
• Price：Competitive Price
• Installation：We Can Send Our Engineers for Installation and Tra
• Service：OEM Supply
• Warranty Period：One Year
• Transport Package：Flame Propagation Tester Packed in Veneer Case
• Specification：1CBM, 100kg
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. GD-476-6 Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Na Item Name BS476-6 Fire Spread Index Tester Application Determine The Fire Propagation Index Reference Standard BS 476 Part 6 Features Computer Automatically Processes The Data, and Pri Material of Cabient Stainless Steel Fire Propagation Index Tester Price Negotiable Price Competitive Price Installation We Can Send Our Engineers for Installation and Tra Service OEM Supply Warranty Period One Year Transport Package Flame Propagation Tester Packed in Veneer Case Specification 1CBM, 100kg Trademark GOLD Origin China HS Code 9031809090 Production Capacity 10 Sets/Month

Product Description

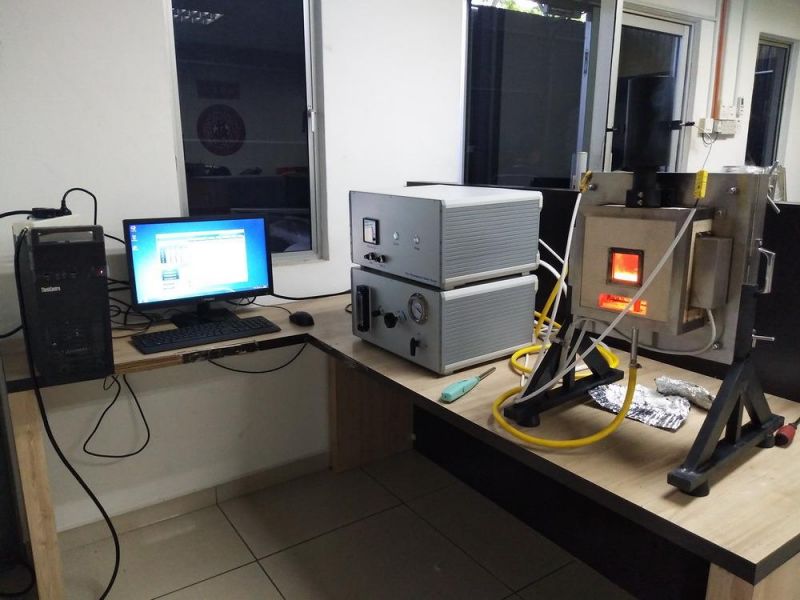

BS476-6 Fire Spread Index Tester

Introduction:
BS 476-6 test method is a method for measuring the flame propagation performance of materials. It is mainly used to evaluate the fire resistance of wall and ceiling lining. The test results are expressed as flame propagation index.During the test, the specimen was exposed to a tubular blowtorch with a heat release of 530J/ m2.2 minutes and 45 seconds after the test, adjust the total power of the two electric heaters to 1800 watts, reduce the power to 1500 watts when the test is 5 minutes, then maintain the power unchanged until the end of the test, and the total test time is 20 minutes.
Standards:

1. BS 476 Part 6 A1: 2009
2. GB/T 17658-1999

Features:

1. Stainless steel support frame andCalcium silicate board combustion chamber.

2. Three kinds of sample holders for different thickness of the specimens.

3. Low reflective black finished mild steel Chimney and Cowl assembly complete with thermocouple mounting points.

4. Compliant stainless steel gas burner.

5. Two K type mineral insulated thermocouples complete with ceramic insulators.

6. Two pencil type heaters with 1000w installed in combustion chamber.

7. Control gas instrumentation including electronic gas on/off valve, flow regulating valve, flow meter and manometer.

8. Intelligent single phase power controller with feedback loop for accurate control of electric heating elements

9. DAQ record automatically the mV output from the thermocouples of the flue gases throughout the duration of the test.

10. According to the test time, automatically adjust the output power.
     Data Acquisition system:

11. Prompted software interface

12. Data recording and display of cowl temperature against time

13. Data recording and display of ambient temperature against time

14. Display of power value in kW

15. Calibration routine

16. Calculation of output rise and calibration value

Application:
Rail
Our Services

Pre-sale Service:

• Inquiry will be replied within 24 hours.
• Welcome to visit our factory.
• Technical datas and operation manual sent for evaluation.



After-sale Service:

• Training how to instal the machine, training how to use the machine at our factory;
• Engineers available to service machinery overseas at customers' cost;
