• Model NO.：YG(B)518DC
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Motor Drive
• Weight：0-100Kg
• Power Source：AC220V
• Number of Station：4
• Diameter：82mm
• Speed：60rpm
• Nail：160g
• Number of Nail：11
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)518DC Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Motor Drive Weight 0-100Kg Power Source AC220V Number of Station 4 Diameter 82mm Speed 60rpm Nail 160g Number of Nail 11 Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

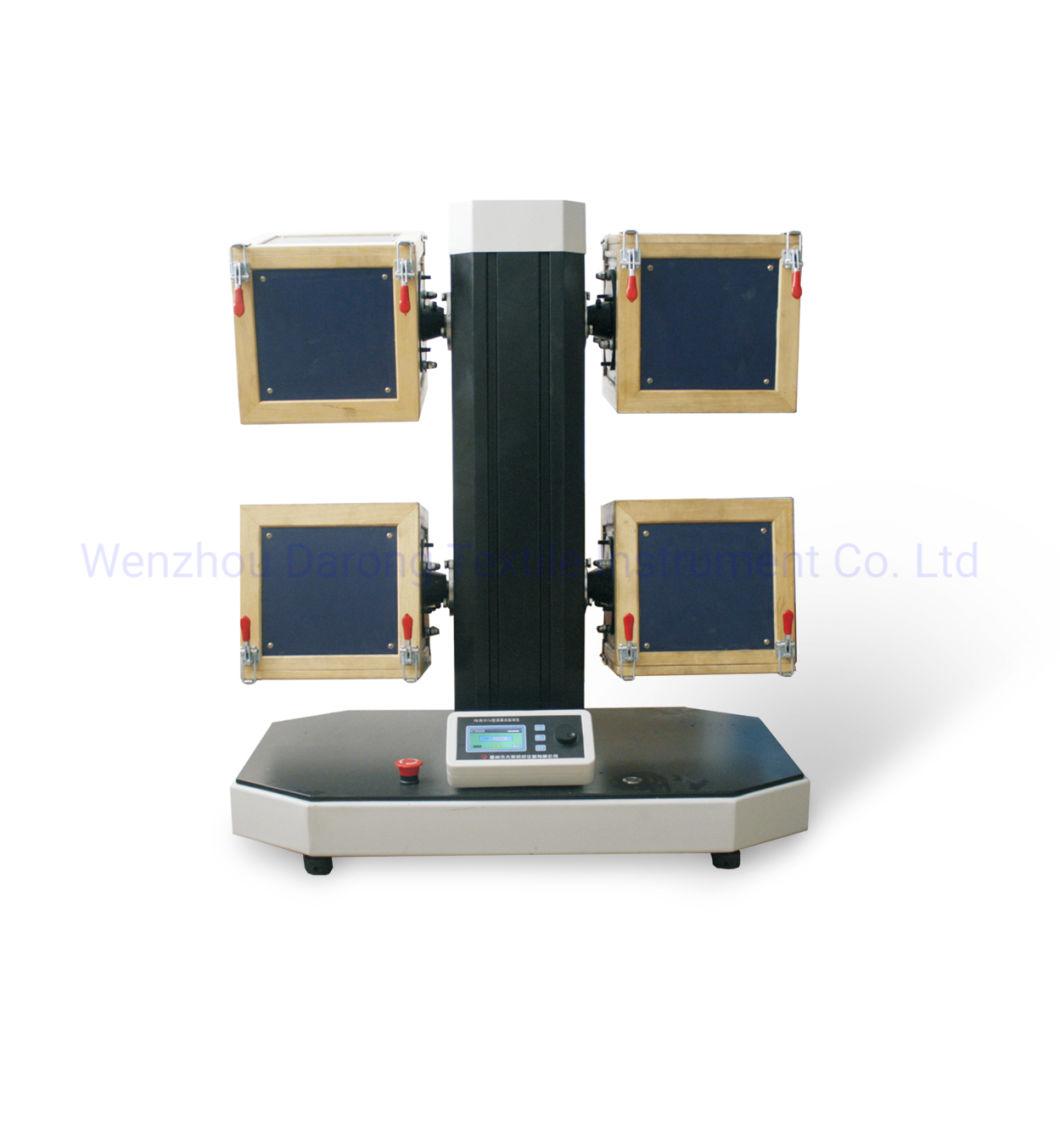

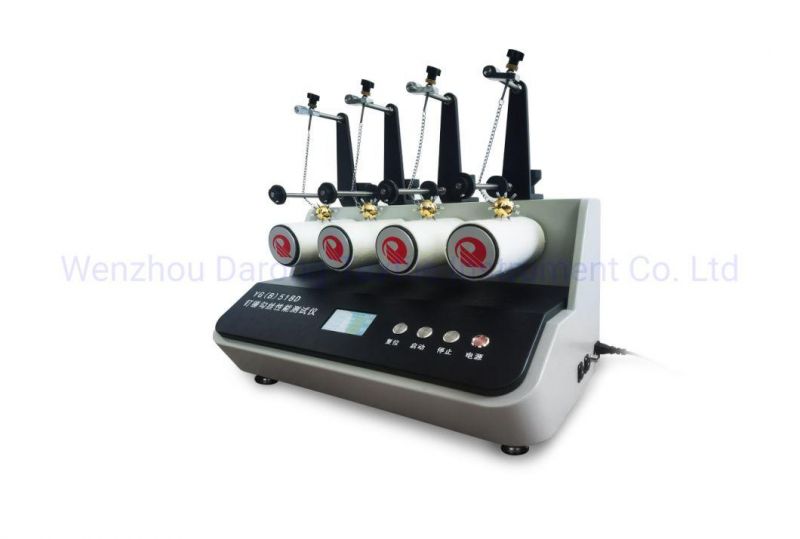

YG(B)518DC   Fabric Apparel ICI Mace Snag Snagging Resistance Lab Testing Equipment
[Scope of application] Used for testing hook resistance of knitted fabric and other easy hook fabric.

[Related standards] GB/T11047 ASTM D3939 JISL1058
[ Technical parameters ]
1. Number of stations: 4 stations
2, drum speed :(60±2)r/min
3, counting range: 0 ~ 99999
4. Diameter of drum: φ 82mm; 210 mm wide
5, nail mass :(160±10)g
6. Number of nails with hammer: 11
7, the length of the exposed needle: 10mm; Tip radius r0.13mm
8, felt thickness :(3 ~ 3.2)mm; Width of 165 mm
9, guide rod working width: 125mm; Φ 10 mm in diameter
10. Distance between hammer and guide rod: 45mm
11, power source: AC220V±10% 50Hz 200W
12, overall size :(660×400×600)mm
13, weight: 60kg


Technical parameters]

Number of station	Counting range	Speed of drum
4	0-99999	60rpm
