• Model NO.：STBCY-3
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：20kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stbcy-3 Concrete Comparator
• Dial Gauge Precision：0.001mm
• Max.Range of Dial Gauge：1mm
• Measuring Range of Concrete：354-364mm
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STBCY-3 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 20kg Power Source AC220V Oil Cylinder Position No Product Name Stbcy-3 Concrete Comparator Dial Gauge Precision 0.001mm Max.Range of Dial Gauge 1mm Measuring Range of Concrete 354-364mm Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

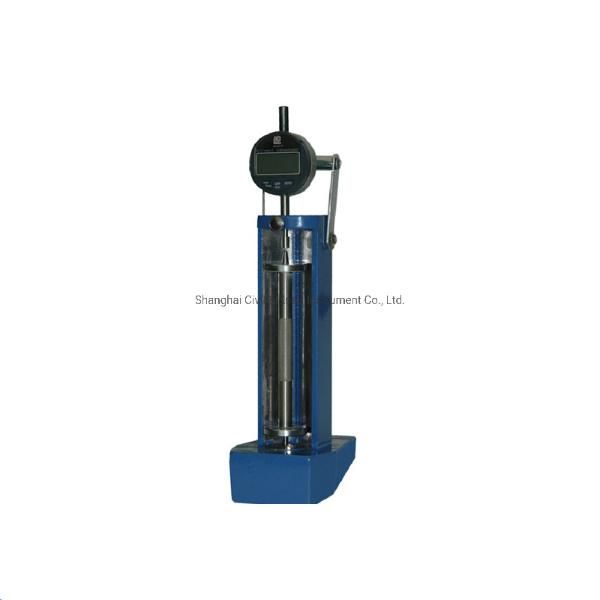

STBCY-3 Concrete Comparator Cement shrinkage and swelling tester cement length comparator


This apparatus is used to determine the changes in length of cement prisms in the accelerated soundness test. It is also used to measure length changes of 40x40x160mm, and other sizes of cement and concrete specimens. The instrument consists of an analogic or digital dial gauge, which is mounted on a steel frame. The top anvil is adjustable to suit the required specimen.

1.Measuring range of concrete: 354-364mm
2.Model STBCY-3 is equipped with digial indicator with a range of 1mm and resolution of 0.001mm.
