• Model NO.：THT-LDD-80-MC
• Loading Method：Pneumatic Booster Pump
• Display：Pressure Gauge
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Maximum Output Pressure：4000bar Output Pressure
• Working Medium：Water,Hydraulic Oil
• Driven Pressure Range：Compressed Air of 3-8 Bar
• Function：Pressure Adjustable
• Application：Burst Test for Pipes,Valves,Hoses
• Driven Piston Diameter：160mm
• Transport Package：Wooden Case Packing
• Specification：260KG
• Trademark：TEREK
• Origin：Jinan
• Production Capacity：5000pieces,Year

Type

Pressure ratio

Max outlet pressure  (bar)

Max flow   (L/min)

Connection size(inch)Drive

Connection size(inch)   Inlet

Connection size(inch)   Outlet

THT-LDD-16

16:1

128

19.73

G1/2

NPT 1/2

NPT 1/2

THT-LDD-28

28:1

224

11.3

G1/2

NPT 1/2

NPT 1/2

THT-LDD-40

40:1

320

7.69

G1/2

NPT 1/2

NPT 1/2

THT-LDD-64

64:1

512

4.94

G1/2

NPT 1/2

NPT 3/8

THT-LDD-80

80:1

640

3.96

G1/2

NPT 1/2

NPT 3/8

THT-LDD-100

100:1

800

3.13

G1/2

NPT 1/2

NPT 3/8

THT-LDD-175

175:1

1400

1.81

G1/2

NPT 3/8

M14*1.5

THT-LDD-255

255:1

2040

1.23

G1/2

NPT 1/4

M14*1.5

THT-LDD-400

400:1

3200

0.79

G1/2

NPT 1/4

M14*1.5

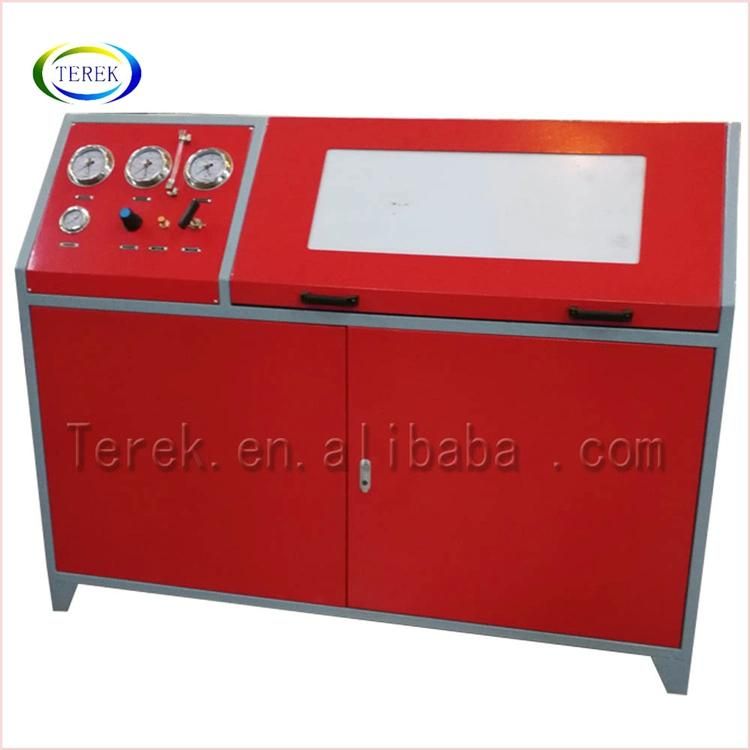

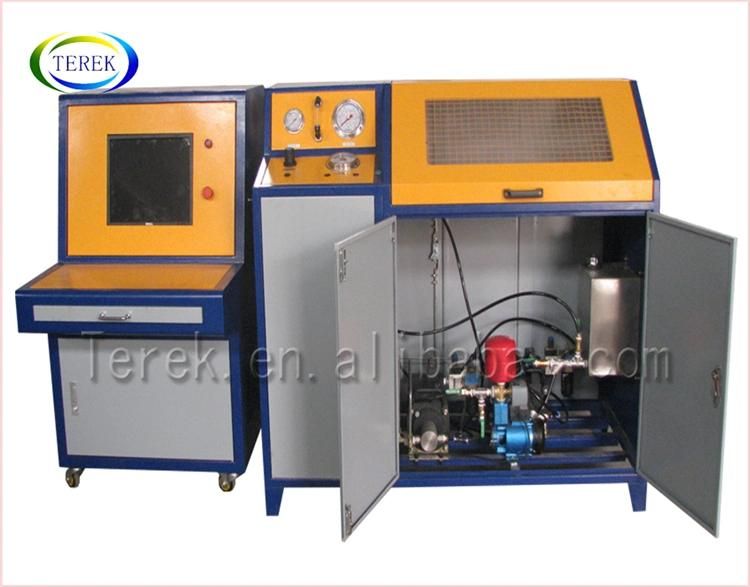

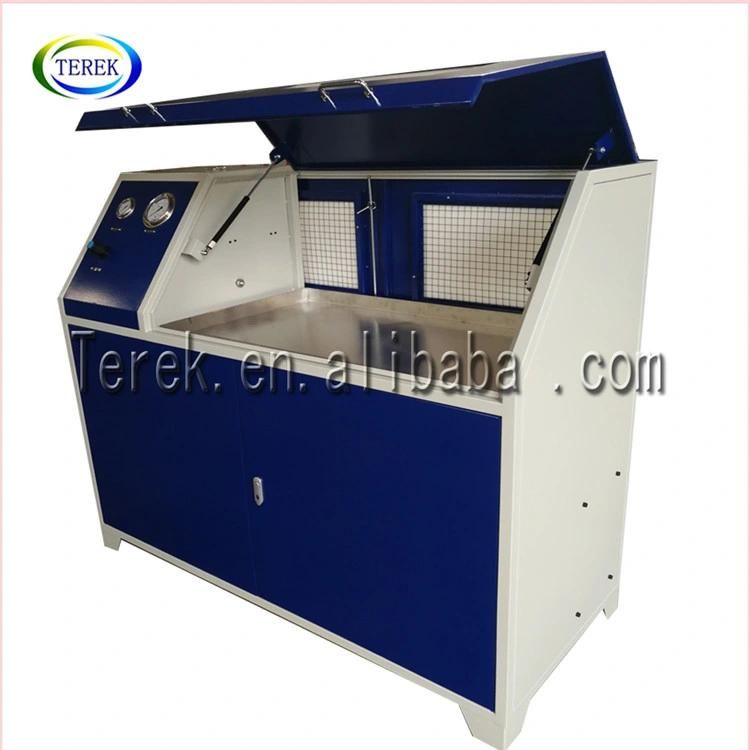

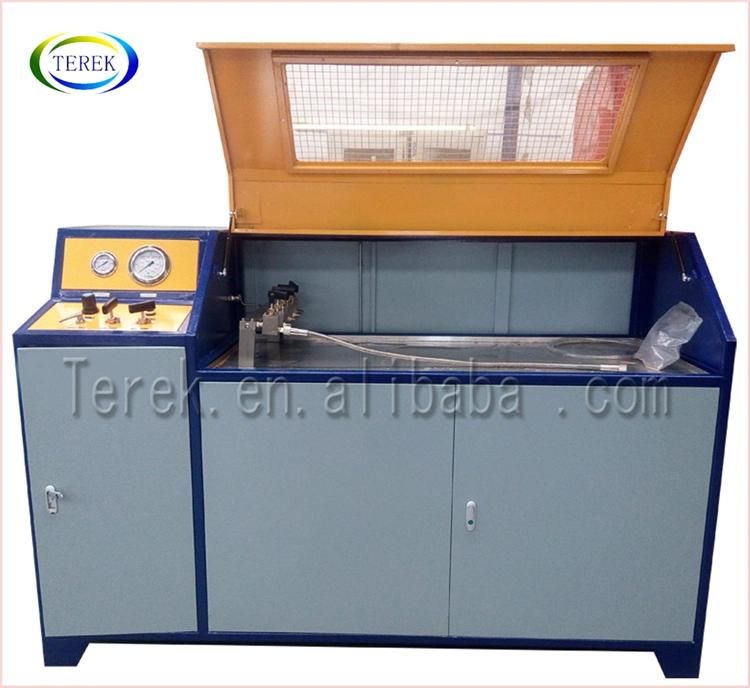

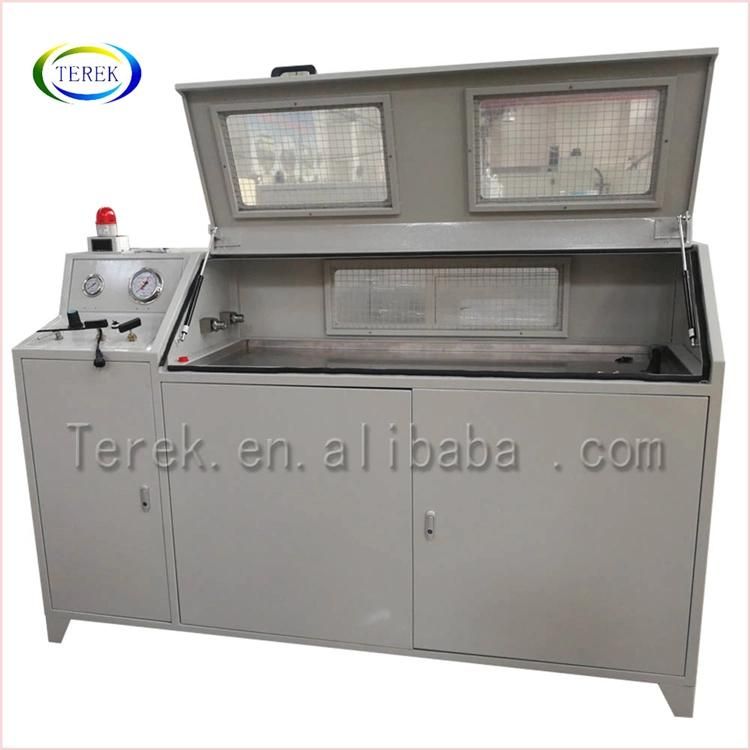

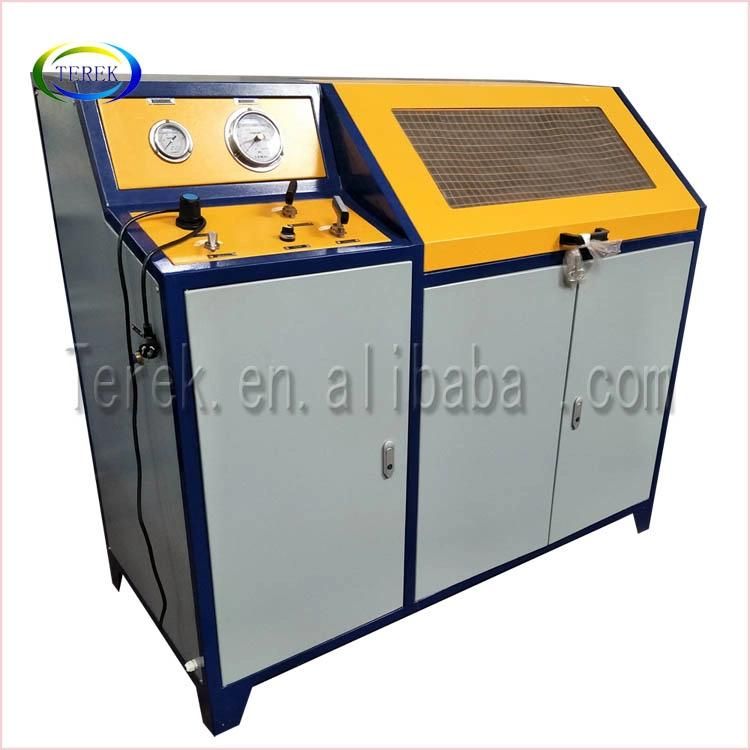

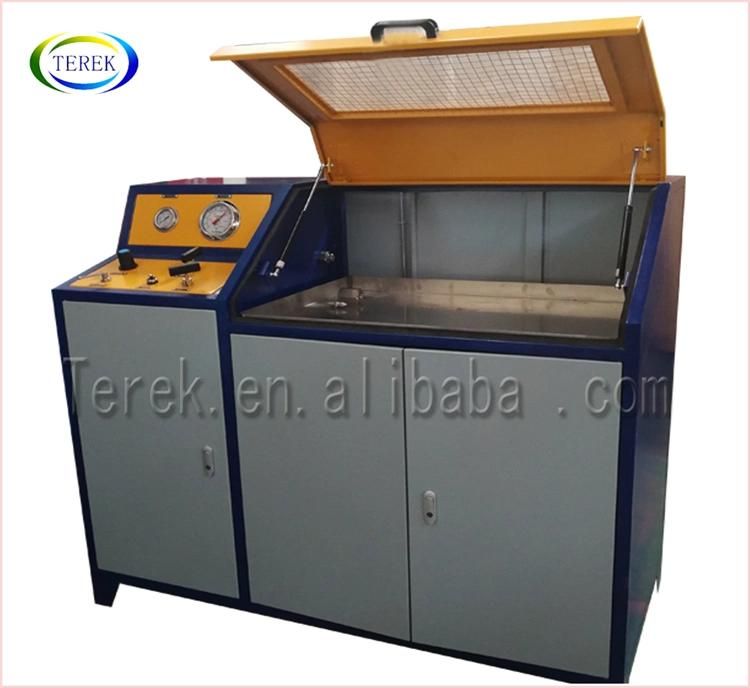

1.TEREK Burst Pressure Test Benches is Special pressure testing equipment,   Provide pressure and bursting testing for various hydraulic hoses, valves, vessels, tubes and other hydraulic products.

2.They are use air driven hydraulic pump for liquid pressurization. Test pressure is up to maximally 320Mpa. Test medium can be water and hydraulic oil.

3.We have introduced the German technology to produce this high-performance test bench. The machine has a pneumatic pump and no electricity needed.

4.The machine is easy for operation with low noise and fast boosting. Testing liquid can be recycled. It played a important role in the improvement of quality and reliability.

Application Fields

1. Water pressure test, pressure leak detection, Faucet water pressure test.
2. Pressure resistance and burst test of the valve,pipe,faucet.
3 pressure vessel pressure test and blasting test
4. Static pressure and burst test of various metal and non-metal pipes
5. Withstand pressure test of various oil tools
6. Pressure instrumentation pressure detection and verification
7. Inject chemical reagents into the autoclave
8. Pressure testing and blasting testing of fire fighting equipment such as fire hoses and fire extinguishers
9. Detection of automobile brake system
10.According to the customer's pressure requirements, pneumatic pressure pumps are used to produce different types of pressure testing machines. Parts testing can make different tooling according to the customer's different products.

TEREK Company focus on provide various kinds of pneumatic and hydraulic booster pumps, booster systems, High pressure filling equipment, pressure testing system and fluid pressure solutions to the customers all over the world etc. With more than 18 years experiences in fluid pressure exchange and controlling field.

Our main products including:

High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump,Refrigerant booster pump and Air Amplifier )

High Pressure Systems (Air Driven Gas,Liquid Booster Stations, Filling machine and tube expanding machine )

High Pressure Test Equipment(Hydraulic Pressure Test Machine, Safety relief valve test bench, Cylinder test machine, Burst/Hydrostatic valve and pipe test machine,Impulse Testing Machine etc.)

TEREK will sustain to go beyond ,pursuit perfect and fulfill the expect from worldwide customers.

Supplying high-quality product and service is the eternal aim of TEREK.

 1.Q : Are you manufacturer ?

A: Yes, We are the manufacturer with continuous and improved R&D. Production,

Quality Check and service supply.

2.Q : Can I get your price list ?

A: Yes, Sure. In order to send you our available offered price. Please choose the products and let us know the product model and requirement in detail.

3.Q : Do you have stock for all items?

A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.

4.Q : What is payment terms ?

A: Sample order : 100% full payment before start to production;

Large order : 30% deposit first, 70% pay after see the BL copy ;

5.Q: Can give free sample ?

A : Free : if small spare parts and the cost not too much is ok ;

Not Free : the cost expensive and all the machine can not be free ;

6.What about the services and product' quality?

Each instruments must be carried out 100% quality examination and test when shipping

and delivery goods.

7.Q : How long can be finished the goods ?

Delivery date:  5-30 working days after deposit paid

Two years warranty, when the products reach to destination.
