• Model NO.：EL42-5305,01
• HS Code：90248000
• Production Capacity：500set,Month

Basic Info.

Model NO. EL42-5305/01 HS Code 90248000 Production Capacity 500set/Month

Product Description

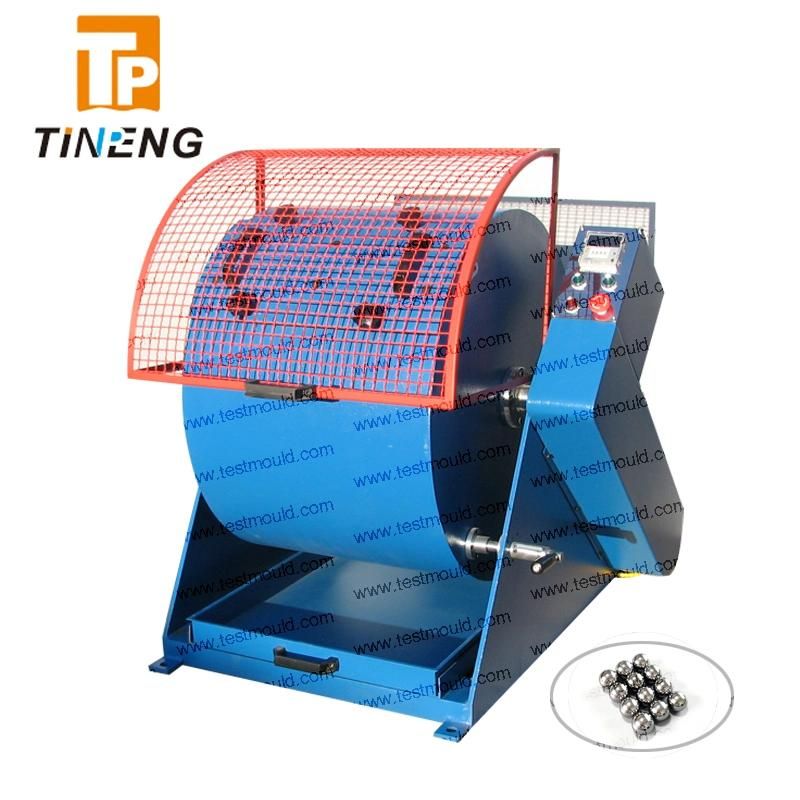

Asphalt Los Angeles Abrasion Machine

Used to measure the degradation of mineral aggregates of standard gradings resulting from a combination of actions including abrasion or attrition, impact, and grinding in a rotating steel drum containing a specified number of steel spheres.

• Consists of a hollow steel cylinder, with a wall thickness of 12 mm (1/2") closed at both ends having an inside diameter of 711 mm (28"), and an inside length of 508 mm (20").

• The drum rotates at 31 - 33 rpm.

• Power Supply : 220 V, 1 phase, 50Hz

• Dimensions: 950x1000x1100mm

• Weight: 350 kg

• Advantages:

• Supplied with an automatic digital counter that shows the number of revolutions for the drum

• Provided with a cover and a safety stop button is prominently positioned.

• The machine is fitted with a revolution counter and steel tray for specimen unloading.

• Supplied with 2sets abrasive charges meet ASTM and EN standard.

One set of 12 abrasive charges: 1.13/16" (7 pcs) and 1.7/8" (5 pcs) (ASTM, C.N.R),

One set of 12 abrasive charges: 1.7/8" (EN) (options)

• Heavy steel cylinder and base frame. Includes steel tray for specimen unloading

• Full length opening with protective cover




Heavy duty Steel drum that its wall thickness is 12mm.
