• Model NO.：HJ-3
• Power Source：AC220V
• Action Stroke：10mm (Fixed)
• Working Height Adjustment Range：100mm
• Fixture Holding Capacity：400*300mm
• Probe Installation Range：350*250mm
• Test Speed：60-300rpm
• Probe Height Adjustment：15mm
• Number of Probes：15 (Expandable to 120)
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-3 Power Source AC220V Action Stroke 10mm (Fixed) Working Height Adjustment Range 100mm Fixture Holding Capacity 400*300mm Probe Installation Range 350*250mm Test Speed 60-300rpm Probe Height Adjustment 15mm Number of Probes 15 (Expandable to 120) Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Summary :

The Automatic Keyboard Key Life Test Machine can test the typing resistance life of various rubber and metal shrapnel keys such as NOTE-BOOK laptop, mobile phone, walkie-talkie, electronic dictionary, computer and other buttons and various buttons and switches for life test, especially for the fatigue test of computer keyboard keys. It can test multiple products at the same times, each products can be multi-point testing. Each key can set different load pressure and different height of pressure.


Action stroke	10mm (fixed)
Working height adjustment range	100mm
Fixture holding capacity	400*300mm
Probe installation range	350*250mm
Number of trials	999999*10 times
Test speed	60-300Rpm
Probe height adjustment	15mm
Number of probes	15 (expandable to 120)
Minimum distance between two probes	X direction 10mm, Y direction 20mm
physical dimension	520*420*980mm
weight	110kg
Voltage	AC 220V

Test Standards:
GB/T4967-95 silicone rubber and key life test is equivalent to JIS IEC related standards

Test theory:

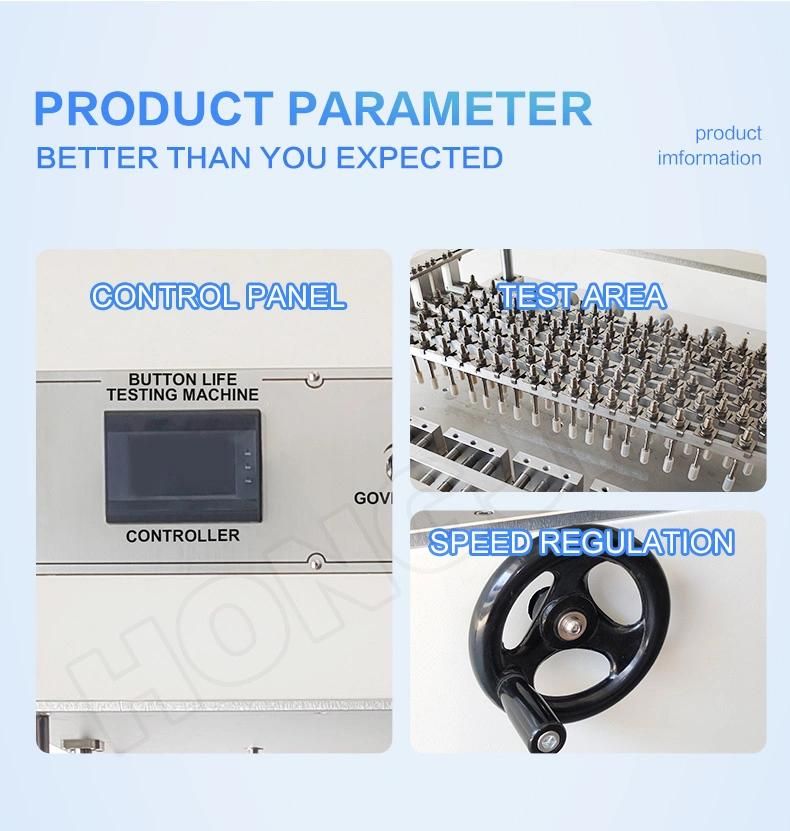

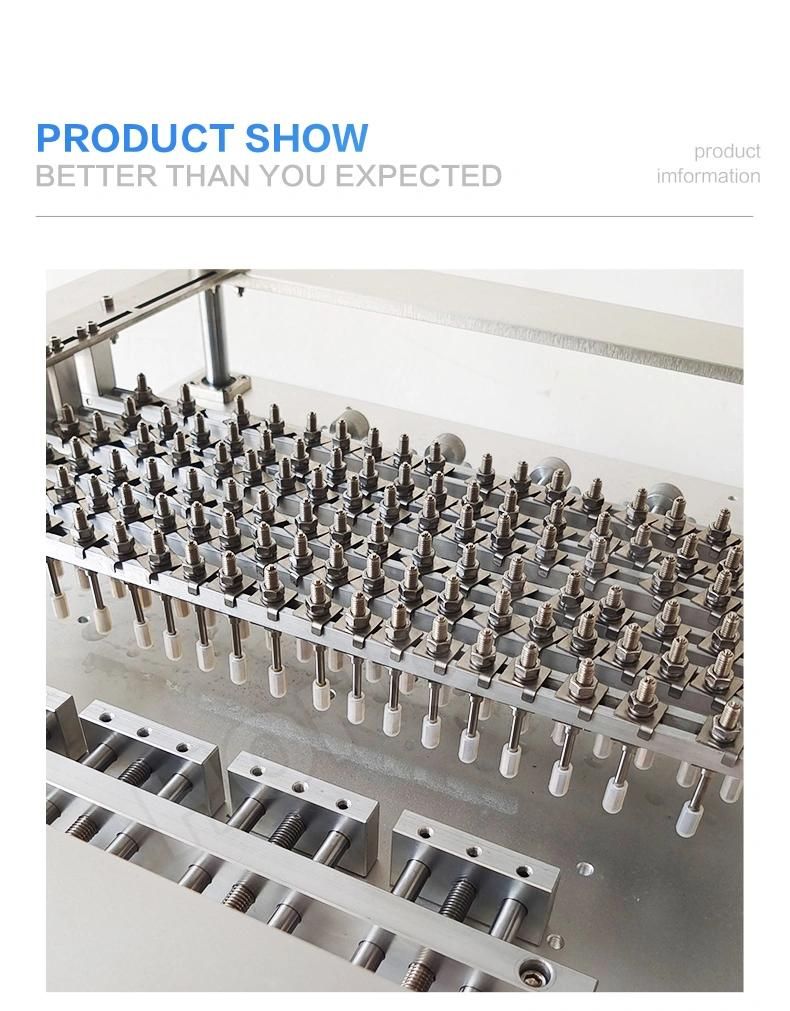

The key life testing machine uses the stepping motor drive eccentric structure to move the worktable up and down, so as to make the key or keyboard move relative to the probe. Set the test times of the counter. After the times arrive, check the damage of the key, so as to judge the quality and service life of the key.



The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.

Hongjin's services:
If you encounter any problems during future testing, we promise we will reply you within 48 hours and provide a solution within 3 working days. We can provide operation video and English operation manual. We can provide video conferencing.
1. Pre-sales service
    --24-hour online service for your consultation.
    -- Help with choosing the right model, and a range of services, people, advice.
   --Provide laboratory planning and pre-sales technical guidance.
2. Intermediate service
    -- give you the best offer
    --Provide discounts on multiple sets of orders
    -- Do the customer's request:
    --Choose a payment term that is convenient for you.
    --Prompt production and delivery, keep you informed.
    -- Invoice value can be provided according to your needs to reduce tax.
3. After-sale service
   --1 year warranty service and lifetime maintenance.
   --Technical engineers can provide 24-hour after-sales guidance.
   --Replacement of some parts
   --Remote control technical consultation
   --Machine lifetime maintenance service
4. Commitment:
We will sign a letter of commitment at the same time as signing the contract, which will increase your confidence in us.

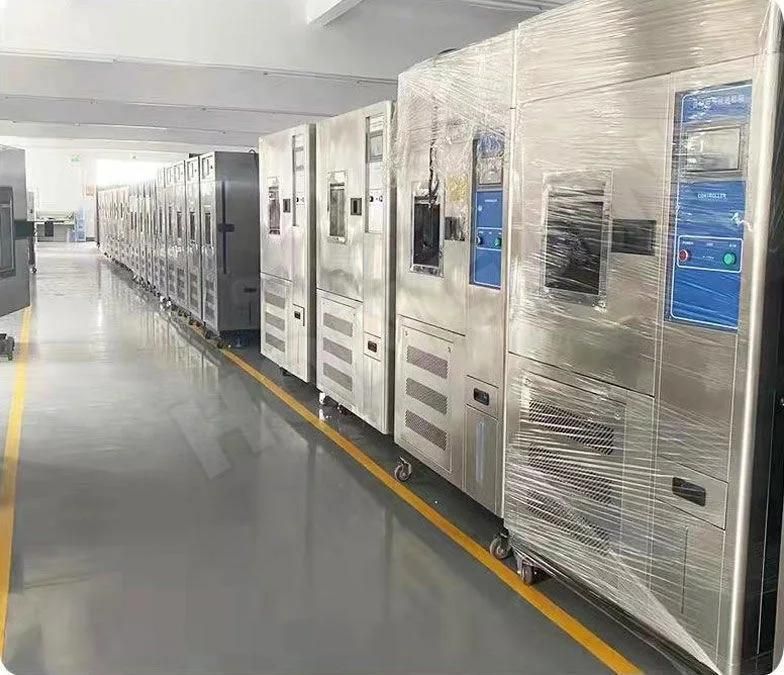

5. Good packaging:
Simulation animation customers cover with bubble film before putting them into wooden boxes, which not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof and corrosion-proof, and good transparency.
