• Model NO.：48-B0191
• HS Code：90248000
• Production Capacity：1000sets,Month

Basic Info.

Model NO. 48-B0191 HS Code 90248000 Production Capacity 1000sets/Month

Product Description

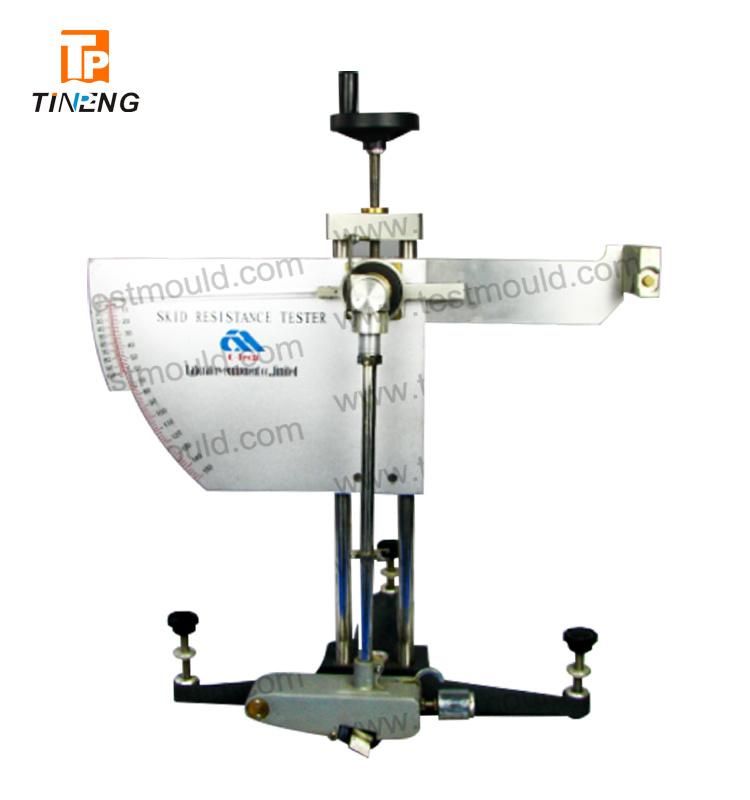

Portable Skid Resistance Tester/British Pendulum Tester

STANDARD: EN 13036-4(ALSO CONFORMING TO EN 1097-8, ASTM E103)

FEATURES:

Used for the measurement of surface friction properties, suitable for both site and laboratory applications and for Polished Stone Value tests using curved specimens from accelerated polishing tests.

The test equipment is supplied complete with:
- Additional scale for tests on Polished Stone Value specimens.
- 2 rubber sliders for site use, Size of rubber slider(Length×Widt h×Thickness):  76.2 × 25.4 ×6.35 mm
- 1 litre washing bottle, for surface wetting.
- Tool set with case, for machine assembly.
- Rule for sliding length verifi cation.
- Aluminum alloy portable case.


Model	48-B0190
Rocket weight	1500±30g
Distance between rocking  centre and center of gravity	410±5mm
Positive static pressure on pavement	22.2±0.5KN
Size of rubber slider(Length×Width×Thickness)	75×25×7mm
Weight of rubber slider	16g
Package	Aluminum alloy
Dimension of package(mm)	740×710×210
Gross weight approx	30~40kg
