for Medical Device Testing Ozone Aging Test Chamber

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：900mm
  • Mass Scope of Workpiece：900kg
  • Type：Rubberplastic Ozone Endurance Test Equipment
  • Maxcapacity：N,a
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：YOT-080
  • Loading Method：Static Load
  • Display：N,a
  • Control：Controller
  • Weight：100-500Kg
  • Power Source：AC380V
  • Oil Cylinder Position：N,a
  • Inner Size：1000*1000*1000mm
  • External Size：1500*1900*1550mm
  • Volume：80 Liters
  • Temp. Range：Rt--80degrees
  • Humi. Range：45%Rh--98%Rh
  • Temp.&Humi. Fluctuation：+,-0.2degree, +,-0.5%Rh
  • Temp.&Humi. Uniformity：+,-1.5degree, +,-2.5%Rh
  • Ozone Concentration：0--1000pphm
  • Interior Chamber Material：SUS#304 Stainless Steel Plate
  • Exterior Chamber Material：Stainless Steel Plate + Powder Coated
  • Transport Package：Strong Wood Carton
  • Specification：SGS, BV Certification
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：8514109000
  • Production Capacity：100 Sets,Month

Description

ModelInternal Dim.W×H×D(mm)External Dim.W×H×D(mm)Temperature RangeRT to 80ºCHumidity Range45%HR -- 98%HRPerformanceTemp.&Humi fluctuation±0.2ºC,±0.5%RHTemp.&Humi uniformity±1.5ºC,±2.5%RH when RH is ≤75%, ±4%RH when RH is over 75%(tested with empty chamber, 30mins after stabilization)Indication Resolution0.01ºC,0.01%RHOzone concentration0--1000PPHMOzone control accuracy±10%Ozone wayStatic emissionsSample rotating speed1 times/minuteMaterialExteriorStainless steel plate+Powder CoatedInteriorSUS#304 stainless steel plateInsulationPU & Fiberglass woolOzone analyzerImported ozone density analyzerOzone generatorSilent discharge type ozone generatorSystemsCirculationSirocco fanHeatingSUS#304 stainless steel high-speed heaterHumidifyingSurface evaporating systemCoolingImported compressor+finned vaporator+air-cooling condenserDehumidifyingADP Critical dewpoint cooling/dehumidifying methodControllerDigital electronic indicatrs+S.S.R.With PID automatic calculation capabiltyAccessoriesVacuum glass inspection window, cable port(50mm), control status indicator lights, chamber lamp, loading shelves(2pcs for free)Safety devicesOverheating circuit-breaker, compressor overload protection, control system overload protection, humidifying system overheating protection, breakdown indicator light.Power(K.W.)AC 1Ψ 220V,3Ψ380V 60/50HzCustomizationCustomization of inner chamber size,temperature&humidity range,etc.
Company Introducefor Medical Device Testing Ozone Aging Test Chamber


for Medical Device Testing Ozone Aging Test Chamber
for Medical Device Testing Ozone Aging Test Chamber


Exhibition

for Medical Device Testing Ozone Aging Test Chamber
for Medical Device Testing Ozone Aging Test Chamber
for Medical Device Testing Ozone Aging Test Chamber

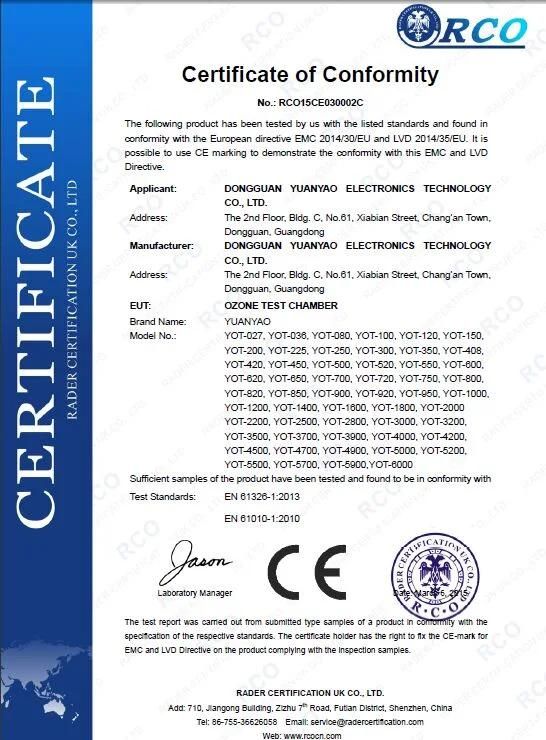

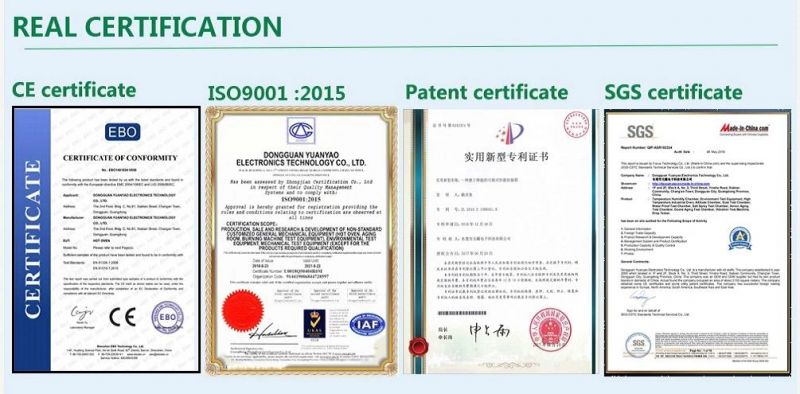

Certification

for Medical Device Testing Ozone Aging Test Chamber
for Medical Device Testing Ozone Aging Test Chamber

for Medical Device Testing Ozone Aging Test Chamber

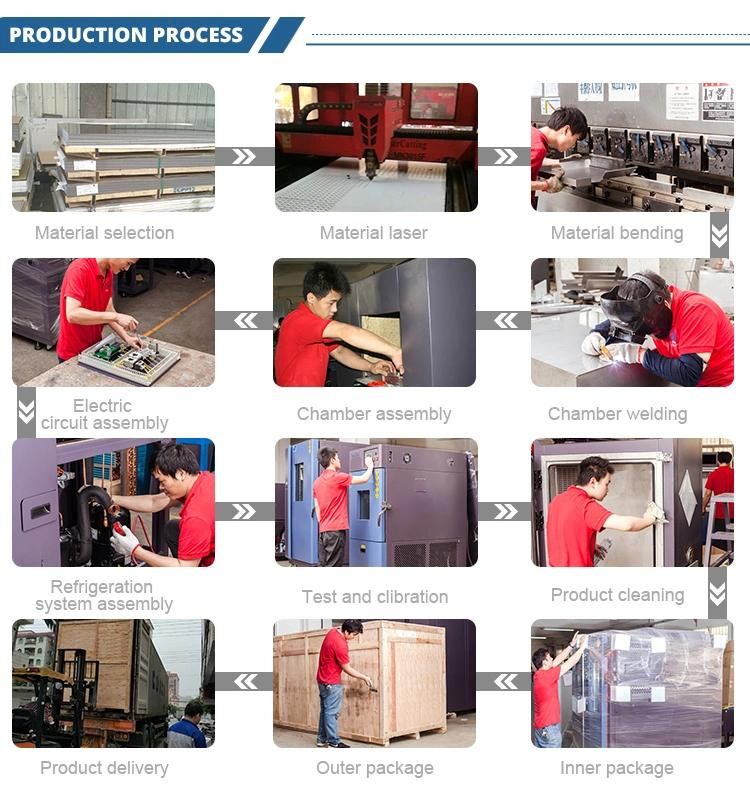

Production Process
for Medical Device Testing Ozone Aging Test Chamber

Except Ozone aging test chamber, Guangdong Yuaoyao Test Equipment Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
for Medical Device Testing Ozone Aging Test Chamber

If you are interested in, welcome to contact with us!
