Dielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing Machine

Huazheng Electric Manufacturing (Baoding) Co., Ltd.
  • After-sales Service:Yes
  • Warranty:1 Years
  • Type:Breakdown Voltage Test Equipment
  • Display:Digital
  • Control:Computer Control
  • Weight:0-100Kg

Base Info

  • Model NO.:HZJQ-X1
  • Power Source:AC220V
  • Oil Cylinder Position:Breakdown Voltage Test Equipment
  • Hz-381 Type:Single Oil Cup Structure
  • Testing Time:6 Times (1~6 Times Optional)
  • Minimum Resolution:0.1kv
  • Time of Dielectric Strength:Less Than 10ms
  • Insulating Oil Pressure Test:0-80kv (Optional)
  • Measurement Resolution:±(2% * Reading+ 0.2kv)
  • Electrode Distance:2.5mm (Electrode Gap Can Be Adjusted)
  • Wave Form Distortion:Less Than 3%
  • Supply Voltage:AC220V±10% 50Hz±1 Hz
  • Applicable Humidity:Max Relative Humidity 75%
  • Transport Package:Wooden Box with Foam Inside
  • Specification:CE,ISO,IEC
  • Trademark:HuaZheng
  • Origin:Hebei, China
  • HS Code:9030899090
  • Production Capacity:100 PCS,Month

Description

Basic Info.

Model NO. HZJQ-X1 Power Source AC220V Oil Cylinder Position Breakdown Voltage Test Equipment Hz-381 Type Single Oil Cup Structure Testing Time 6 Times (1~6 Times Optional) Minimum Resolution 0.1kv Time of Dielectric Strength Less Than 10ms Insulating Oil Pressure Test 0-80kv (Optional) Measurement Resolution ±(2% * Reading+ 0.2kv) Electrode Distance 2.5mm (Electrode Gap Can Be Adjusted) Wave Form Distortion Less Than 3% Supply Voltage AC220V±10% 50Hz±1 Hz Applicable Humidity Max Relative Humidity 75% Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030899090 Production Capacity 100 PCS/Month

Product Description

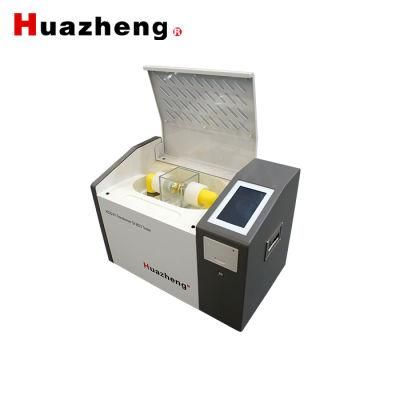

Dielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing Machine

I.Introduction

Insulating oil dielectric strength tester is also known as oil breakdown voltage tester or oil BDV tester.

Break down voltage is measured by observing at what voltage, sparking string between two electrode immersed
in the oil, separated by specific gap. low value of BDV indicates presence of moisture content and conducting
substances in the oil.

In this kit, oil is kept in a pot in which one pair of electrodes are fixed with a gap of 2.5 mm (in some kit it 4mm) between  them.
Dielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing Machine



II.Features

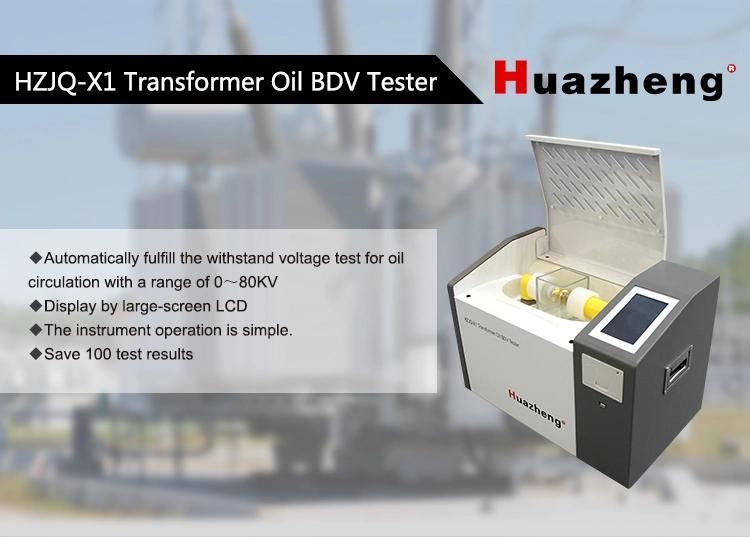

1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironment temperature and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensure the safety ofoperators.
7.With a temperature measurement display function and system clock display.
8.Standard RS232 interface.


III.Parameter


Output Voltage0~80KV (100KV need special design)
Applicable temperature0ºC~45ºC
Voltage Raising Speed0.5~5 KV/S (adjustable)
Applicable humidity<90%RH  No condensation
RS232 interfaceLCD Screen
Boosting Frequency1~6 time(s)
HZ-381 TypeSingle Oil Cup Structure
Measuring Accuracy±3%
Dielectric Strength TesterOil Test Equipment
CertificationCE ISO
Oil Test KitInsulating Oil Tester
Standing Time15min (adjustable)
Speed of Voltage Increase0.5~5kva/s(adjustable)
Dielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing Machine

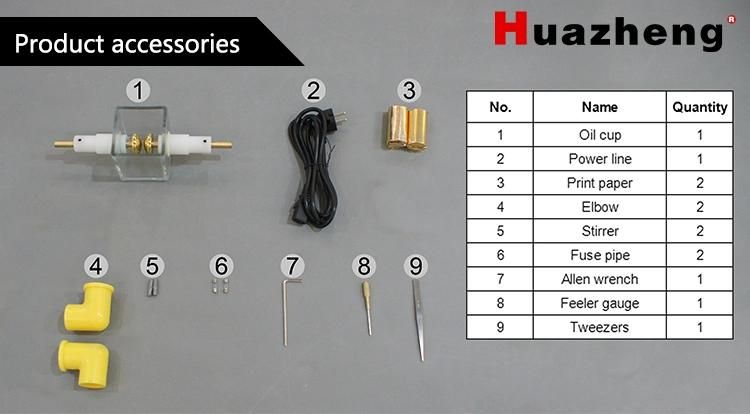

IV.Detailed Photos

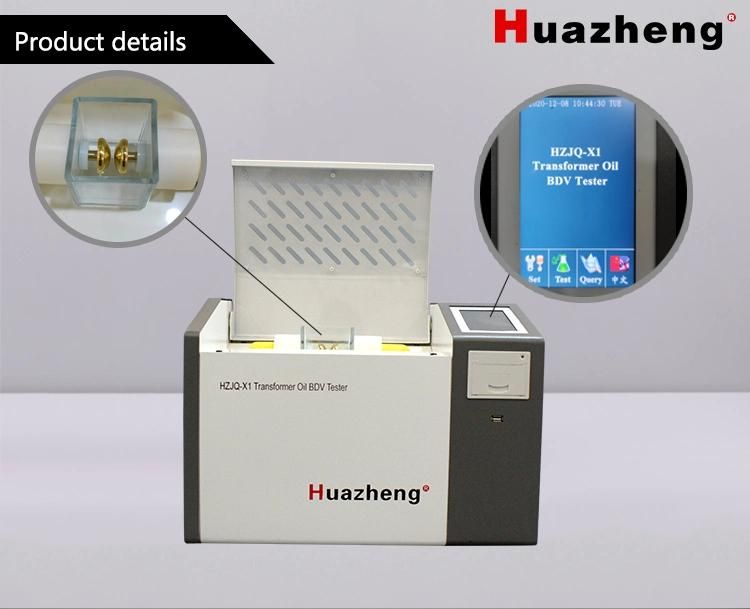

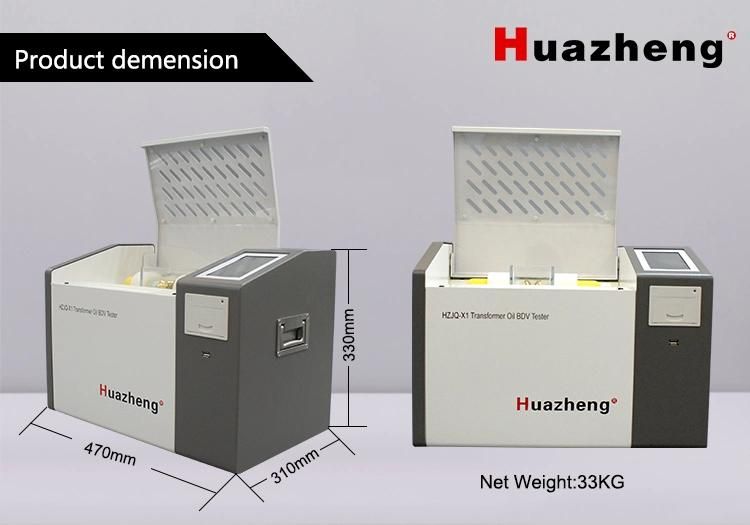

Dielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing MachineDielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing MachineDielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing MachineDielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing MachineDielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing Machine


V.Company Information


HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.


Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
Dielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing Machine


VI.FAQ

1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.

2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232? A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing

VII.Customer Visit

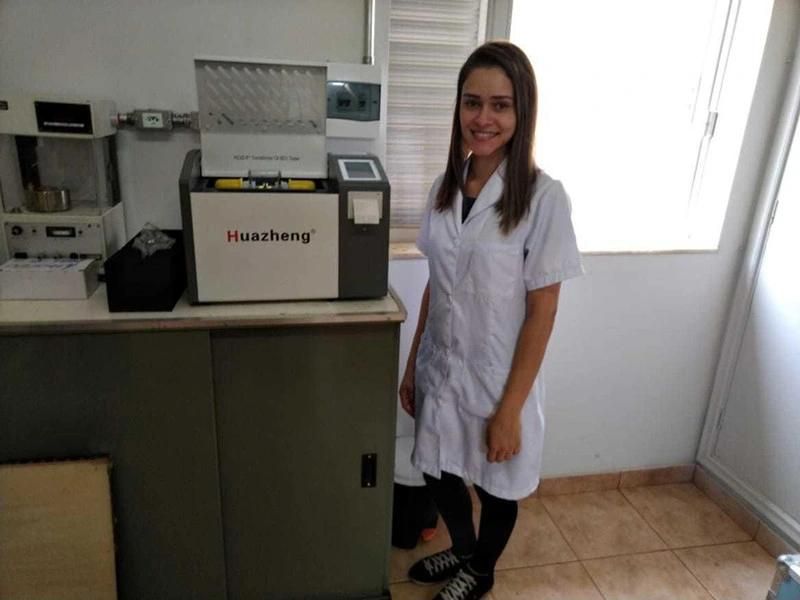

Dielectric Oil Tester / Transformer Oil Bdv Breakdown Voltage Testing Machine
