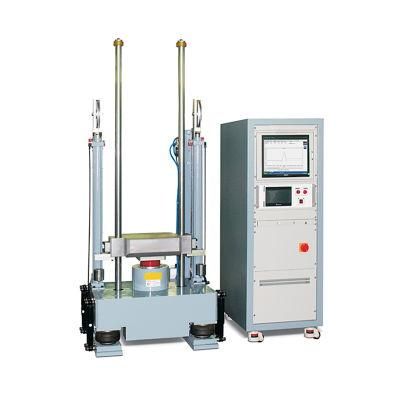

Battery Mechanical Shock Collision Table Mechanical Shock Tester
Dongguan Hongjin Test Instrument Co., Ltd.- After-sales Service:Lifetime Maintenance
- Warranty:1 Year
- Mass Scope of Workpiece:900kg
- Type:Vibration Testing Machine
- Load Way:Mechanical Load
- Loading Method:Dynamic Load
Base Info
- Model NO.:HJ-56
- Display:Digital
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Continuous Working Time:8 Hours
- Table Weight Kg:980, 1100, 1800, 2800, 3500
- Maximum Drop Height mm:0-60, 0-60, 0-60, 0-70, 0-80
- Transport Package:Fumigation-Free Standard Export Wooden Box
- Trademark:Hongjin
- Origin:China
- Production Capacity:1000 Sets, Month
Description
Basic Info.
Model NO. HJ-56 Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Continuous Working Time 8 Hours Table Weight Kg 980, 1100, 1800, 2800, 3500 Maximum Drop Height mm 0-60, 0-60, 0-60, 0-70, 0-80 Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ MonthProduct Description
IntroduceThis machine is used to detect the impact damage ability of the product during transportation or use, so as to evaluate the impact resistance of the product structure, and through the test data, optimize the product structure strength, improve product quality, widely used in aerospace, automobile , machinery parts and other industries.
Features
1. The system has high reliability and complete protection functions.
2. Complete both impact and collision tests.
3. Shock waveforms such as rear peak sawtooth wave and trapezoidal wave can be expanded.
4. Crash test acceleration closed-loop control, high control accuracy.
5. The rigidity of the working platform is high, and the peak acceleration uniformity of the platform is good.
6. By adjusting the drop height of the table (collision test) or changing the compression amount of the compression spring (impact test), the acceleration value of the shock pulse can be changed.
7. When the countertop impact body rises to a certain height, it falls and hits the buffer pad, producing a semi-positive dazzling impact pulse
8. Adjust the thickness and material of the cushion to change the duration of the pulse
9. The DC motor drives the deceleration hoist, and uses the rolling bracket to push the impact body and the table to move upwards
10. Change the speed of the DC motor to change the repetition frequency of the pulse.
Parameter | |
Maximum load kg | 50, 100, 200, 500, 800 |
Peak acceleration m/s | 30~1000, 30-1000, 30-1000, 30-500, 30-500 |
Pulse duration ms | 20-1, 20-1, 20-2, 30-1, 30-1 |
Collision pulse repetition rate/min | 10-60, 10-60, 10-60, 10-60, 10-60 |
Table size mm | 500×700, 500×700, 500×700, 800×800, 1000×1000 |
Maximum drop height mm | 0-60, 0-60, 0-60, 0-70, 0-80 |
Continuous working time | 8 hours |
Dimensions LXHXW(mm) | 700×800×1100, 700×900×1200, 800×700×800, 1000×1300×1900, 1000×1300×2200 |
Table weight kg | 980, 1100, 1800, 2800, 3500 |
power supply | 220VAC±10%50Hz 380VAC±10%50Hz |
ambient temperature | 40-50ºC |
humidity | <85%(25ºC) |
