Centrifuge Binder Extractor ASTM D2172 for Determination of Binder Content in Bituminous Materials
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Weight：0-100Kg
- Power Source：AC220V
- Centrifuge Extractor：Centrifuge Extractors for Bitumen Meets ASTM D2172
Base Info
- Centrifuge Binder Extractor：Centrifuge Extractor for Bituminous Mixtures
- Extraction of Bitumen：Asphalt Centrifuge Extractor 3000 Gram Capacity
- Centrifuge Extraction：Astmd2172 Asphalt Content by Centrifuge Extraction
- Bitumen Extraction：Centrifuge Extractor for Extraction of Bitumen
- Warranty：1 Year
- Transport Package：Wooden Case or Plywood
- Origin：China
- HS Code：9031809090
- Production Capacity：200PCS,Month
Description
Basic Info.
Centrifuge Binder Extractor Centrifuge Extractor for Bituminous Mixtures Extraction of Bitumen Asphalt Centrifuge Extractor 3000 Gram Capacity Centrifuge Extraction Astmd2172 Asphalt Content by Centrifuge Extraction Bitumen Extraction Centrifuge Extractor for Extraction of Bitumen Warranty 1 Year Transport Package Wooden Case or Plywood Origin China HS Code 9031809090 Production Capacity 200PCS/MonthProduct Description

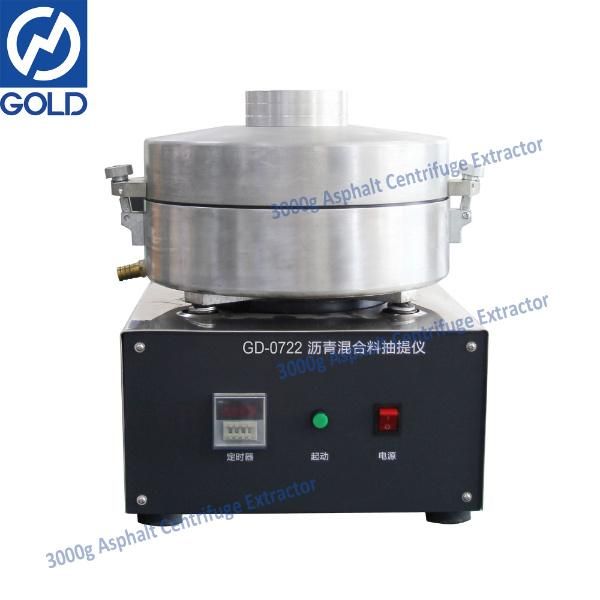

3000g Digital Centrifuge Extractor for ASTM D2172 Analysis of Asphalt Content by Centrifuge Extraction
Introduction:The 3000g Digital Centrifuge Extractor is designed and made as per T0722-1993 Standard Test Method for Bitumen Content of Bituminous Mixture by the Centrifuge Separation Method in Industrial Standard of People's Republic of China JTG E20-2011 and ASTM D2172 Specification and Test Methods for Bitumen and Bituminous Mixture for Highway Engineering.
The Bitumen Centrifuge Extractor is suitable to determine bitumen content (bitumen-mineral aggregate ratio) in the bituminous mixture, which is made of viscous petroleum bitumen, by the centrifuge separation method.
Features:
1. Thicken aluminum alloy vessel. Stainless steel centrifugal shaft and instrument shell. Never rust .
2. Precise mechanical manufacturing technology. The rotation is stable and speed is fast.
3. Digital display timer.Multilevel start. Stable test operation.
Specifications:
1. Rated rotation speed: 3000r/min
2. Power supply: AC(220±10%)V,50Hz
3. Volume:3000g
4. Timer: 40, 60, 80, 99(s)
5. Maximum power consumption:550W
6. Ambient temperature:10ºC~35ºC
7. Relative humidity:≤85%
8. Net weight:34.5Kg
9. Dimension: 430mm×410mm×445mm
