• Model NO.：XHGG502
• Test Mode：Saved Test
• Usage：Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
• Test Region：Forming Cable
• Cable Type：Shielded
• Power：Electricity

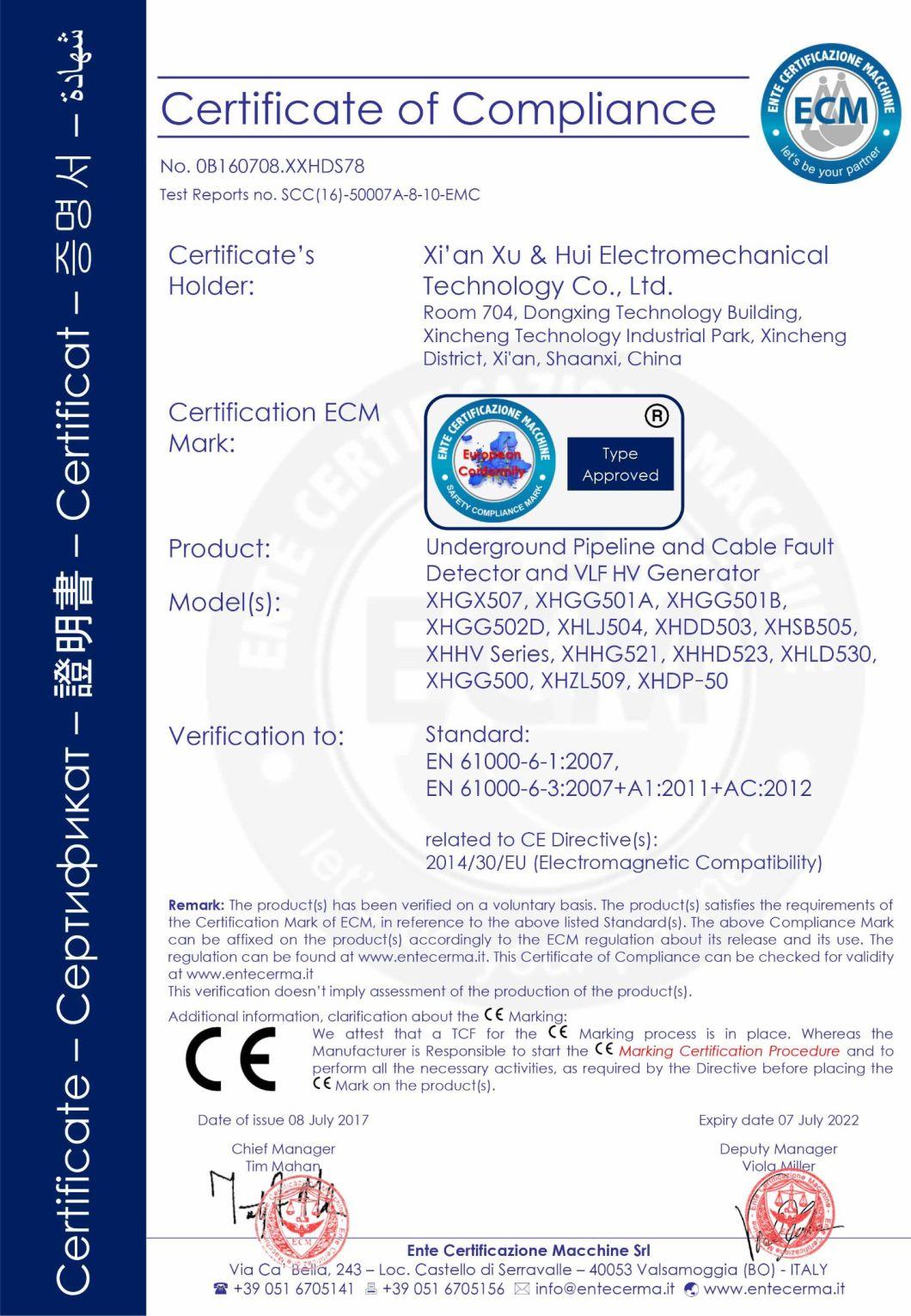

• Certification：CE
• Customized：Customized
• Color：Blue
• Transport Package：Wooden Box with Foam Inside
• Specification：350mm*280mm*170mm
• Trademark：XZH TEST
• Origin：China Xian
• HS Code：8543201000
• Production Capacity：1000 Pieces ,Year
• Package size per unit product：36.00cm * 28.00cm * 20.00cm
• Gross weight per unit product：40.000kg

Basic Info.

Model NO. XHGG502 Test Mode Saved Test Usage Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester Test Region Forming Cable Cable Type Shielded Power Electricity Certification CE Customized Customized Color Blue Transport Package Wooden Box with Foam Inside Specification 350mm*280mm*170mm Trademark XZH TEST Origin China Xian HS Code 8543201000 Production Capacity 1000 Pieces /Year

Packaging & Delivery

Package size per unit product 36.00cm * 28.00cm * 20.00cm Gross weight per unit product 40.000kg

Product Description

   Product   Overview

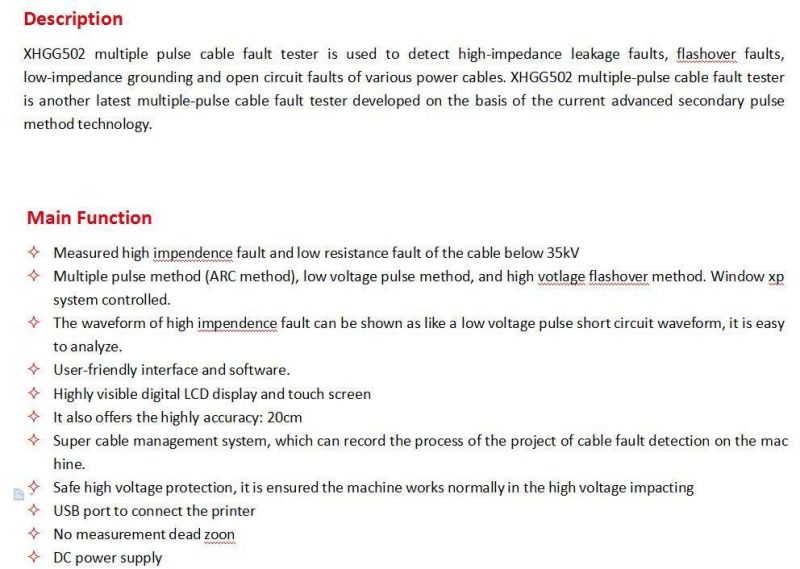

XHGG502 multiple pulse cable fault locator is for detect the power cable fault such as high resistance leakage fault, flashover fault and low resistance to the ground fault and open circuit fault.

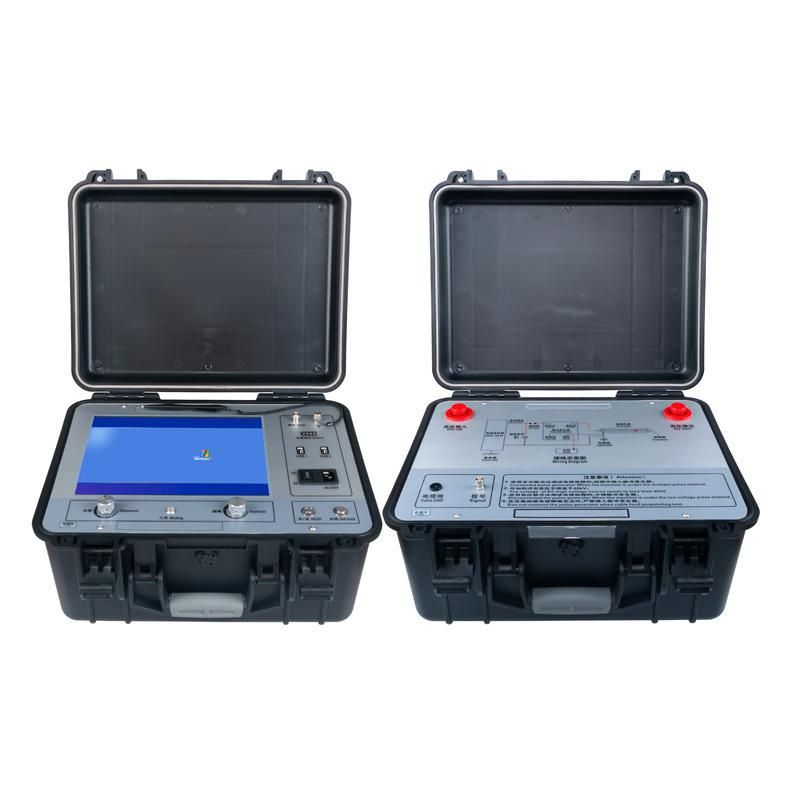

XHGG502 multiple pulse cable fault locator is controlled by a built-in industrial grade computer with a Windows-XP system, 12.1 inch TFT color display screen, and protective storage box design. The instrument is moisture proof and dustproof casing. When the machine is under high voltage current method, it can generate two groups of pulse waveforms which are eight pulses waveform of fault detecting and eight pulse waveforms of total cable length detecting. We can get the sixteen measuring pulse waveforms. So the operator can analyze the waveform easily. The operator can select a good waveform from eight wave forms to analyze. Multiple pulse method let a complicated high voltage flashover waveform to become a simple waveform like a short circuit fault waveform and more waveforms to analyze. XHGG502 is easy to operate. The operator who is not experienced and professional can easily analyze and determine the cable fault point also, which improves test efficiency of cable fault locating and found the cable fault point successfully. It can help the customer to save the cost and the time.
