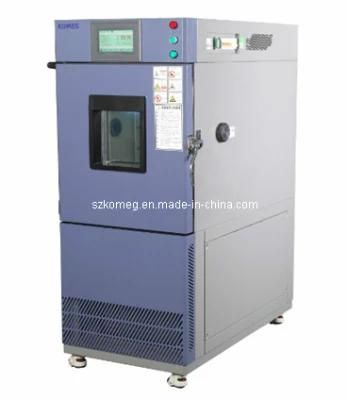

Remote Monitoring Energy-Saving Benchtop Temperature and Humidity Test Chamber

Guangdong Komeg Industrial Co., Ltd.
  • Type：Material Testing Machine
  • Weight：100-500Kg
  • Power Source：AC380V
  • Working Chamber Volume (L)：36L
  • Temp. Range：-20oc~+150oc
  • Humidity Range：20-98%R.H.

Base Info

  • Model NO.：KMH-36L
  • Temp. Constancy：+,-0.5oc
  • Humidity Constancy：+,-2.5%R.H.
  • Humidity Uniformity：+,-5.0r.H.
  • Heat up Time：-20 Oc~+100 Oc Within 35mins
  • Pull Down Time：+20 Oc~-20 Oc Within 45mins
  • Equipment Power：18.5kw
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and Customized
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets Per Yesr

Description

ModelKMH-36L36L chamber volumeTemp. range -40°C ~150°C Display resolution0.1°CTemperature stabilityHigh±0.5°C ,low ±1.0°CTemperature uniformity ±2.0°CHeat up time -40°C ~+100°C,within 45 minPull down time +20°C ~-40°C,within 60 minHumidity range20~98%R.H,(standard),   '10~98%R.H,(with humidifier)Humidity constancy±2.5%R.HHumidity uniformity±3.0%R.HInterior Dimension(mm)300W x 400H x 300D Exterior Dimension(mm)880W x 1726H x 1395DInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane Foam and Glass Fiber WoolTotal power  4KW(heater 2KW included)Max current8AWater Consumption0.65L/hrAmbient Temp.+5°C ~+35°C Power Supply AC 380V±10% 50Hz ,3 phase 4 wires +Ground WiresWeight 250KGSight window sizewith LED lightSample holder 2 pcsFittingscable port(portΦ50mm)*1, chamber lamp*1, power cable *2mSafety device  (standard)No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect Control SystemBalanced Temperature & Humidity Control (BTHC)SystemRefrigeration systemAir Cooled (Water Cooled is option)Hermetic compressor

Hermetic compressor
Single stage refrigeration system,
CFC-Free refrigerant(HFC-507/HFC-23)

CFC-Free refrigerant(HFC-507/HFC-23)Controller7-inch LCD Touch Screen panel                                                                        Operation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesNote: 1. We reserve the right to change specifications without prior notice                                                    2. Customized sizes and configurations available
