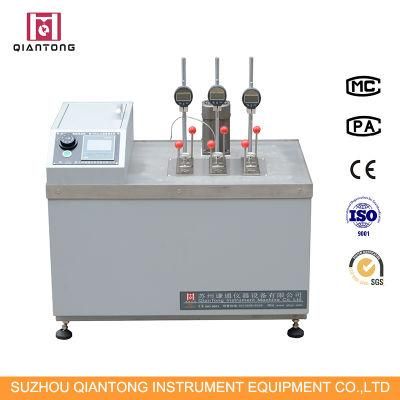

Plastic Hdt and Vicat Tester
Suzhou Qiantong Instrument Equipment Co., Ltd.- Certification：CE, ISO, GB,T
- Warranty：1 Year
- Testing Material：Plastic and Rubber
- Warranty Time：1 Year
- Standard：All The Standards
- Transport Package：Wooden Case
Base Info
- Model NO.：QT-300A
- Specification：810mm*470mm*780mm
- Trademark：Suzhou Qiantong
- Origin：Jiangsu, China
- HS Code：9024800000
- Production Capacity：1000 Set,Year
Description
ISO 2507,ISO 75,ISO 306,ASTM D1525,ASTM D648 and so on.
Working principles:
VST definition:The specimen is placed in liquid or heating cabinet. It tests that about the temperature of standard needle when pressed 1mm into a sample from pipes or fittings under (50+1)N force with isokinetic heating.
HDT definition:The test specimen is loaded in three-point bending in the edgewise direction or horizontally,producing bending strength stated in GB/T1634 relevant part. Under the condition of isokinetic constant temperature, it measures the temperature when it reaches the standard deflection corresponding to specified bending strain increased. 4. Specifications
Some cooperative brands(This ranking is in no order)
FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Working principles:
VST definition:The specimen is placed in liquid or heating cabinet. It tests that about the temperature of standard needle when pressed 1mm into a sample from pipes or fittings under (50+1)N force with isokinetic heating.
HDT definition:The test specimen is loaded in three-point bending in the edgewise direction or horizontally,producing bending strength stated in GB/T1634 relevant part. Under the condition of isokinetic constant temperature, it measures the temperature when it reaches the standard deflection corresponding to specified bending strain increased. 4. Specifications
| temperature control range | room temperature-300 ºC |
| max temperature deviation | ± 0.5ºC |
| temperature heating speed | 50ºC/h, 120ºC/h |
| temperature measuring point | 1 |
| deformation testing range | 0mm-1.1mm |
| max deformation deviation | +0.01mm |
| sample supporting span | 64mm,100mm (American standard adjustable size) |
| cooling method | natural cooling above 150ºC hydrocooling below 150ºC or natural cooling. upper limit temperature protection |
| number of experiment benches | 3 |
| instrument size | 810mm*470mm*780mm |
| space requirement | front and back 1m, left and right 0.6m |
| power requirement | 2500VA 220VAC 50HZ |
| medium | methyl silicone oil (customer provided) |
| deformation testing fixture | dial indicator |
